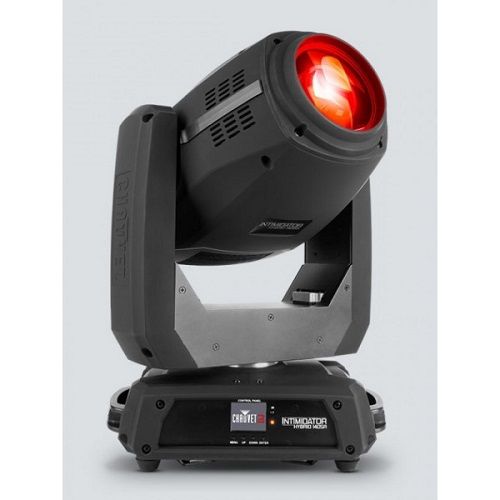

Intimidator Hybrid 140SR
Stock Code:
CH-INTIMIHYBRID140SR
POA
Quantity Breaks
1+
POA
Please Call
Description
FEATURES
- True hybrid moving head fitted with an intense 140 W discharge light engine
- All-in-one light fixture morphs from SPOT to BEAM to WASH effortlessly
- Dual, overlapping prisms with independent control multiply the beam dynamics
- Dual gobo wheels allow for gobo morphing and amazing mid-air projections
- Motorized zoom works in beam, spot and wash modes for ultimate light control
- Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
- Emit crisp projections at almost any distance using the motorized focus
- Glass optics ensure crisp beams and gobos at all times
- Flexible menu option accepts Osram 132 W lamps if needed
- Full-colour display with IRC-6 compatibility, totem mode and onboard memory for storing a scene
- On-board power linking saves time running extension cords
- Fits best in the CHS-50 VIP Gear Bag
SPECIFICATIONS
- DMX Channels: 13 or 19
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540 deg;/270 deg; Pan and Tilt Ranges: 180 deg, 360 deg, 540 deg; pan/90 deg, 180 deg, 270 deg; tilt
- Colors: 12 + white, split colors, continuous scroll at variable speeds
- Gobos: wheel (1): 9 + open, rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
wheel (2): 17 + open, aluminum, continuous scroll at variable speeds - Light Source: (included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs)
(optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs) - Strobe Rate: 0 to 20 Hz
- Illuminance: (3 deg; beam): 382,000 lux @ 5 m
(7° spot): 104,700 lux @ 5 m
(14° wash): 4,680 lux @ 5 m - Power Linking: 3 units @ 120 V; 6 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 260 W, 2.5 A @ 120 V, 60 Hz
254 W, 1.3 A @ 230 V, 50 Hz - Gobo Size: (rotating): 13.7 mm outside, 11 mm image, 1 mm max thickness
- Zoom Angle: (beam): 3 deg; to 11 deg;
(spot): 7 deg; to 21 deg;
(wash): 14 deg; to 28 deg - Weight:15.2 kg
- Size: 322 x 220 x 513 mm
- Approvals: CE, MET
- Gobo wheel: (1): 9 + open, rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
(2): 17 + open, metal, continuous scroll at variable speeds - Optional Controllers: IRC 6
