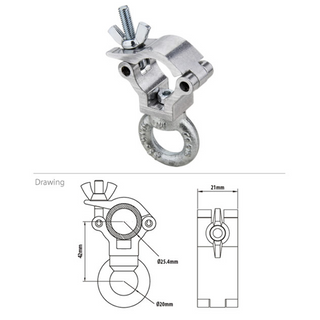

Kupo KCP 833; Eye Ring Half Coupler; 340 KG; 48-51mm; M12 Ring

Half Coupler Aluminium with M12 Ring

Name: Black Barrel Clamp
Brand: Kupo
SKU: KU-kcp-844B

KU-KCP-833

Description

KUPO 2" Coupler with M12 lifting ring (KCP-833) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The inner diameter of the M12 lifting ring is 30mm and can be 360 It can be used as a suspension connection point, etc. The load can be up to 340 kg, only 650 grams, the suitable pipe diameter is 48~51mm, and has passed the German TUV safety certification, the butterfly knob provides good force for both hands It can be locked firmly without additional tools.

The end of the single eye screw has broken teeth to prevent the butterfly knob from falling. It is especially suitable for stage performances, theaters, studios and other applications.

Features

6061-T6 high strength aluminum alloy material
Suitable for 48~51mm pipe diameter
Load capacity up to 340 kg
TUV international safety certification
The curved inner wall does not damage the Truss surface
Base M12 lifting ring for hanging chain, cable or rope
Broken tooth treatment to avoid the butterfly knob from falling
Weight:0.65kg
WLL:340kg
6061-T6 aluminum extrusion
For dia. 48~51mm tube
Wing nut
Comes with M12 lifting ring
TUV certified

Tags

half coupler with eye ring, eye ring coupler, rigging coupler with eye, 2" half coupler with eye, coupler with eyelet, lighting rigging accessories, stage rigging coupler, adjustable rigging coupler, truss coupling with eye, professional rigging tools, lighting mounting coupler, eye bolt coupler, lighting accessories, truss eye ring coupler, Matthews 401137, Matthews 401021, Manfrotto 1314B, pipe clamp with eye, adjustable stage coupler, universal rigging coupler, stage lighting clamp, pipe-to-pipe coupler, event rigging equipment, Kupo rigging clamp, professional stage equipment, stage production coupler, universal half coupler, rigging clamp with eye ring.

Code	Image	Product Name	Attributes		Price
KU-KCP-833		Kupo KCP 833; Eye Ring Half Coupler; 340 KG; 48-51mm; M12 Ring		Login For Price

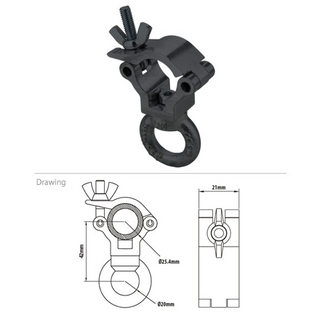

Kupo KCP 833B; Eye Ring Half Coupler; 340 KG; 48-51mm; M12 Ring; Black

Half Coupler Aluminium with M12 Ring

KU-KCP-833-B

Description

KUPO 2" Coupler with M12 lifting ring (KCP-833) is made of high-strength 6061-T6 aluminum alloy material through aluminum extrusion molding, which is very strong and durable.

The inner diameter of the M12 lifting ring is 30mm and can be 360 It can be used as a suspension connection point, etc. The load can be up to 340 kg, only 650 grams, the suitable pipe diameter is 48~51mm, and has passed the German TUV safety certification, the butterfly knob provides good force for both hands It can be locked firmly without additional tools.

The end of the single eye screw has broken teeth to prevent the butterfly knob from falling. It is especially suitable for stage performances, theaters, studios and other applications.

Features

Colour: Black
6061-T6 high strength aluminum alloy material
Suitable for 48~51mm pipe diameter
Load capacity up to 340 kg
TUV international safety certification
The curved inner wall does not damage the Truss surface
Base M12 lifting ring for hanging chain, cable or rope
Broken tooth treatment to avoid the butterfly knob from falling
Weight:0.65kg
WLL:340kg
6061-T6 aluminum extrusion
For dia. 48~51mm tube
Wing nut
Comes with M12 lifting ring
TUV certified

Tags

half coupler with eye ring, eye ring coupler, rigging coupler with eye, 2" half coupler with eye, coupler with eyelet, lighting rigging accessories, stage rigging coupler, adjustable rigging coupler, truss coupling with eye, professional rigging tools, lighting mounting coupler, eye bolt coupler, lighting accessories, truss eye ring coupler, Matthews 401137, Matthews 401021, Manfrotto 1314B, pipe clamp with eye, adjustable stage coupler, universal rigging coupler, stage lighting clamp, pipe-to-pipe coupler, event rigging equipment, Kupo rigging clamp, professional stage equipment, stage production coupler, universal half coupler, rigging clamp with eye ring.

Code	Image	Product Name	Attributes		Price
KU-KCP-833B		Kupo KCP 833B; Eye Ring Half Coupler; 340 KG; 48-51mm; M12 Ring; Black		Login For Price

Kupo KCP 838-T; Handcuff/Scanner Clamp; 200 KG; 48-51mm; T Handle

Handcuff/Scanner Clamp

KU-KCP-838-T, KG807711

Overview

Constructed from high tensile 6061 aluminum extrusion, the handcuff clamp is one of the most popular clamps in the industry. Thanks to a triggering mechanical design, this clamp is made to help rig heavy luminaries quickly and effortlessly

High tensile 6061-T6 aluminum - Black
Fits O.D.48-51mm tube
SWL: 200kg
TUV approval Thanks to a triggering mechanical design, this clamp is made to help rig heavy luminaries quickly and effortlessly
Handcuff coupler with ergonomic T handle. M10 hex head bolt as standard. The double level's counter sunk for M10 or M12 hex head bolt.

Specifications

Weight: 0.63kg
Color: Chrome
Product Height (cm): 4.0cm
Product Length (cm): 17.3cm
Product Width (cm): 13.78cm
Product Weight (kg): 0.63kg
Maximum Jaw Diameter (mm): 51.0mm
Minimum Jaw Diameter (mm): 48.0mm
Primary Material: Aluminum
Warranty: Limited Two-Year Warranty

Tags

handcuff clamp, scanner clamp, quick-release clamp, T-handle clamp, hook clamp, truss clamp, lighting clamp, stage clamp, pipe clamp, Kupo handcuff clamp, black handcuff clamp, half coupler with bolt, heavy-duty lighting clamp, trigger clamp, truss mount clamp, Manfrotto B541005, Matthews B541004, rigging clamp, lighting rig accessory, theater clamp, professional stage clamp, quick-release lighting clamp, mounting clamp, pipe-to-truss clamp, secure lighting clamp, adjustable handcuff clamp, event production hardware, Kupo T-handle clamp.

Code	Image	Product Name	Attributes		Price
KU-KCP-838-T		Kupo KCP 838-T; Handcuff/Scanner Clamp; 200 KG; 48-51mm; T Handle		Login For Price

Kupo KCP 838B-T; Handcuff/Scanner Clamp; 200 KG; 48-51mm; T Handle; Black

Handcuff/Scanner Clamp

KU-KCP-838-B-T, KG807710

Overview

Constructed from high tensile 6061 aluminum extrusion, the handcuff clamp is one of the most popular clamps in the industry. Thanks to a triggering mechanical design, this clamp is made to help rig heavy luminaries quickly and effortlessly

High tensile 6061-T6 aluminum - Black
Fits O.D.48-51mm tube
SWL: 200kg
TUV approval Thanks to a triggering mechanical design, this clamp is made to help rig heavy luminaries quickly and effortlessly
Handcuff coupler with ergonomic T handle. M10 hex head bolt as standard. The double level's counter sunk for M10 or M12 hex head bolt.

Specifications

Weight: 0.63kg
Color: Black/dt>
Product Height (cm): 4.0cm
Product Length (cm): 17.3cm
Product Width (cm): 13.78cm
Product Weight (kg): 0.63kg
Maximum Jaw Diameter (mm): 51.0mm
Minimum Jaw Diameter (mm): 48.0mm
Primary Material: Aluminum
Warranty: Limited Two-Year Warranty

Tags

handcuff clamp, scanner clamp, quick-release clamp, T-handle clamp, hook clamp, truss clamp, lighting clamp, stage clamp, pipe clamp, Kupo handcuff clamp, black handcuff clamp, half coupler with bolt, heavy-duty lighting clamp, trigger clamp, truss mount clamp, Manfrotto B541005, Matthews B541004, rigging clamp, lighting rig accessory, theater clamp, professional stage clamp, quick-release lighting clamp, mounting clamp, pipe-to-truss clamp, secure lighting clamp, adjustable handcuff clamp, event production hardware, Kupo T-handle clamp.

Code	Image	Product Name	Attributes		Price
KU-KCP-838B-T		Kupo KCP 838B-T; Handcuff/Scanner Clamp; 200 KG; 48-51mm; T Handle; Black		Login For Price

Kupo KCP 844; Barrel Clamp; 300KG; 48-51mm

Kupo TV Barrel Adapter - Chrome

KU-KCP-844, KG808010

The Kupo TV Coupler is built for heavy-duty lighting equipment and comes with a 16mm receiver and 28mm spigot.

TUV approved, the TV Coupler is constructed by rugged die-cast aluminum and extruded aluminum and features a hinged locking jaw.

The TV Coupler comes with a 28mm junior socket for a luminaire or telescopic hanger.

The 3/8in threaded 16mm baby stud is also available and can alternate with the 16mm baby socket via the spring latch for lighter weight lights and accessories.

The hinged locking jaw is restricted, making operation for single handed use easier. The safety wire is built in with the clamp to ensure this essential safety aid is always on hand.

The Kupo TV Coupler will support up to 300kg on the 28mm attachment, and 40kg on the 16mm attachment.

Built for heavy-duty lighting equipment and comes with a 16mm receiver, spigot and a 28mm receiver
Supports up to 300kg on the 28mm attachment, and 40kg on the 16mm attachment
Fits pipes/tube dia: 48mm-51mm
Constructed from high-tensile aluminum extrusion

Specifications

Weight: 0.91kg
Color: Chrome
Product Height (cm): 7.88cm
Product Length (cm):16.6cm
Product Width (cm): 15.5cm
Product Weight (kg): 0.91kg
Maximum Payload Capacity (kg): 300.0kg
Maximum Jaw Diameter (mm): 51.0mm
Minimum Jaw Diameter (mm): 48.0mm
Primary Material: Aluminum
Secondary Material: Steel
Warranty: Limited Two-Year Warranty

Tags

Kupo TV Coupler, TV Mount Adapter, Lighting Coupler, Heavy Duty Coupler, Black TV Coupler, Truss Coupler, Rigging Equipment, Stage Lighting Support, 2-Inch Tube Coupler, Studio Rigging Hardware, Kupo Grip, Film and TV Mount, Lighting Suspension, Truss Attachment, Industrial Coupler, Grip Accessories, Theater Lighting Hardware, Event Rigging, TV Clamp, Professional Coupler, Load-Bearing Coupler, Kupo Black Coupler, Studio Safety Gear, Overhead Lighting Support, Truss Mounting Hardware, Durable Rigging Solutions.

Code	Image	Product Name	Attributes		Price
KU-KCP-844P		Kupo KCP 844; Barrel Clamp; 300KG; 48-51mm		Login For Price

Kupo KCP 844B; Barrel Clamp; 300KG; 48-51mm; Black

Black Barrel Clamp | Stage Rigging and Lighting Support | LightsUp

Kupo TV Barrel Adapter - Black

KU-KCP-844B, KG808011

The Kupo TV Coupler is built for heavy-duty lighting equipment and comes with a 16mm receiver and 28mm spigot.

TUV approved, the TV Coupler is constructed by rugged die-cast aluminum and extruded aluminum and features a hinged locking jaw.

The TV Coupler comes with a 28mm junior socket for a luminaire or telescopic hanger.

The 3/8in threaded 16mm baby stud is also available and can alternate with the 16mm baby socket via the spring latch for lighter weight lights and accessories.

The hinged locking jaw is restricted, making operation for single handed use easier. The safety wire is built in with the clamp to ensure this essential safety aid is always on hand.

The Kupo TV Coupler will support up to 300kg on the 28mm attachment, and 40kg on the 16mm attachment.

Built for heavy-duty lighting equipment and comes with a 16mm receiver, spigot and a 28mm receiver
Supports up to 300kg on the 28mm attachment, and 40kg on the 16mm attachment
Fits pipes/tube dia: 48mm-51mm
Constructed from high-tensile aluminum extrusion

Specifications

Weight: 0.91kg
Color: Black
Product Height (cm): 7.88cm
Product Length (cm):16.6cm
Product Width (cm): 15.5cm
Product Weight (kg): 0.91kg
Maximum Payload Capacity (kg): 300.0kg
Maximum Jaw Diameter (mm): 51.0mm
Minimum Jaw Diameter (mm): 48.0mm
Primary Material: Aluminum
Secondary Material: Steel
Warranty: Limited Two-Year Warranty

Code	Image	Product Name	Attributes		Price
KU-KCP-844B		Kupo KCP 844B; Barrel Clamp; 300KG; 48-51mm; Black		Login For Price

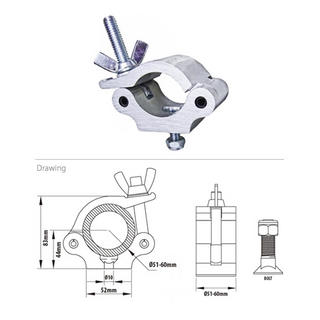

Kupo KCP 851; Mighty Coupler; 500 KG; 51-60mm

Mighty Coupler Chrome

KU-KCP-851

Description

KUPO Mighty Coupler (KCP-851) is structured with high tensile 6061-T6 Aluminum coupler. Heavy duty and working load limit is up to 500kg. For dia. 51-60mm tube and TUV certified.

A captive on top of thread bolt to avoid wing nut falling off the clamp. Equipped with M10 countersunk square bolt and nylon lock nut. Ideal for stage, event, theater or studio.

Features

6061 T6 high tensile aluminum extrusion
Feasible for tube dia. 51~60mm
WLL up to 500kg
Equipped with M10x40mm bolt and nylock nut
M10 countersunk square bolt for effortless operations
A captive on top of thread bolt to avoid wing nut falling off the clamp
Weight: 0.55kg
WLL: 500kg
6061-T6 aluminum extrusion
or dia. 51~60mm tube
Wing nut
M10 countersunk square bolt
Tags

25mm half coupler, lighting coupler, stage rigging coupler, truss mounting coupler, half coupler for truss, black half coupler, professional rigging hardware, 25mm pipe coupler, rigging clamp, lighting fixture coupler, aluminum half coupler, truss coupling, adjustable coupler for lights, compact rigging, truss accessory, stage equipment coupler, heavy-duty coupler, truss connection hardware, lighting rig clamp, half coupler black, Kupo 25mm coupler, Matthews equivalent, Manfrotto coupler.

Code	Image	Product Name	Attributes		Price
KU-KCP-851		Kupo KCP 851; Mighty Coupler; 500 KG; 51-60mm		Login For Price

Kupo KCP 851B; Mighty Coupler; 500 KG; 51-60mm; Black

Mighty Coupler Black

KU-KCP-851B

Description

KUPO Mighty Coupler (KCP-851B) is structured with high tensile 6061-T6 Aluminum coupler. Heavy duty and working load limit is up to 500kg. For dia. 51-60mm tube and TUV certified.

A captive on top of thread bolt to avoid wing nut falling off the clamp. Equipped with M10 countersunk square bolt and nylon lock nut. Ideal for stage, event, theater or studio.

Features

6061 T6 high tensile aluminum extrusion
Feasible for tube dia. 51~60mm
WLL up to 500kg
Equipped with M10x40mm bolt and nylock nut
M10 countersunk square bolt for effortless operations
A captive on top of thread bolt to avoid wing nut falling off the clamp
Weight: 0.55kg
WLL: 500kg
6061-T6 aluminum extrusion
or dia. 51~60mm tube
Wing nut
M10 countersunk square bolt
Tags

25mm half coupler, lighting coupler, stage rigging coupler, truss mounting coupler, half coupler for truss, black half coupler, professional rigging hardware, 25mm pipe coupler, rigging clamp, lighting fixture coupler, aluminum half coupler, truss coupling, adjustable coupler for lights, compact rigging, truss accessory, stage equipment coupler, heavy-duty coupler, truss connection hardware, lighting rig clamp, half coupler black, Kupo 25mm coupler, Matthews equivalent, Manfrotto coupler.

Code	Image	Product Name	Attributes		Price
KU-KCP-851B		Kupo KCP 851B; Mighty Coupler; 500 KG; 51-60mm; Black		Login For Price

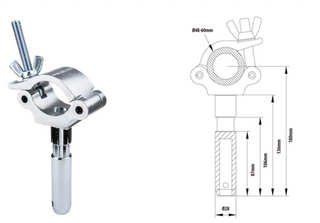

Kupo KCP 854; Mighty Coupler; 28mm Spigot; 200 KG; 51-60mm

Code	Image	Product Name	Attributes		Price
KU-KCP-854		Kupo KCP 854; Mighty Coupler; 28mm Spigot; 200 KG; 51-60mm		Login For Price

Kupo KCP 857 Swivel Mighty Coupler 50mm - 60mm

Code	Image	Product Name	Attributes		Price
KU-KCP-857		Kupo KCP 857 Swivel Mighty Coupler 50mm - 60mm		Login For Price

Kupo KCP 860; Nugget Coupler; 350 KG; 32-38mm

Kupo Nugget Coupler

KU-KCP-860, KG808511

Overview

The Nugget Coupler is a lightweight and low profile professional coupler, constructed from high tensile aluminum extrusion. It has been developed for installations where load capacities of up to 120kg are required.

The KUPO professional couplers combine strength and durability with a high degree of safety. The Nugget Coupler is designed to fit tubes with diameters between 32mm-38mm. It has double levels counter and sunk for M10 hex for customer solutions. Equipped with an M10 bolt and nut. It has a black anodized finish.

Features

Lightweight and low profile professional coupler,developed for installations where load capacities of up to 120kg are required
TUV approval, Unique window for safety wire access
M10 hex head bolt standard, double level's counter sunk for M10 or 3/8" hex head bolt.
Fits O.D. 32-38mm tube
High tensile 6061-T6 aluminum
SWL: 120kg
Chrmoe Finish

Specifications

Weight: 0.28kg
Color: Silver
Product Height (cm): 3.2cm
Product Length (cm): 10.76cm
Product Width (cm): 10.67cm
Product Weight (kg): 0.28kg
Maximum Payload Capacity (kg): 120.0kg
Maximum Jaw Diameter (mm): 38.0mm
Minimum Jaw Diameter (mm): 32.0mm
Primary Material: Aluminum
Warranty: Limited Two-Year Warranty

Tags

Kupo Nugget Coupler, black nugget coupler, KCP-860, truss coupler black, 48-51mm truss coupler, black rigging clamp, heavy-duty truss coupler, lighting support coupler, professional rigging clamp, truss mount clamp, black truss accessory, secure truss coupler, stage lighting coupler, theater coupler black, event production coupler, aluminum coupler black, load-bearing truss clamp, Kupo truss accessory, lighting rig clamp, professional stage hardware, heavy-duty black coupler, truss rigging accessory, black aluminum clamp, Kupo black coupler, truss attachment clamp, stage black coupler, 32mm clamp, 38mm clamp

Code	Image	Product Name	Attributes		Price
KU-KCP-860		Kupo KCP 860; Nugget Coupler; 350 KG; 32-38mm		Login For Price

Kupo KCP 860B; Nugget Coupler; 350 KG; 32-38mm; Black

Kupo Nugget Coupler Black

KU-KCP-860B, KG808511

Overview

The Nugget Coupler is a lightweight and low profile professional coupler, constructed from high tensile aluminum extrusion. It has been developed for installations where load capacities of up to 120kg are required.

The KUPO professional couplers combine strength and durability with a high degree of safety. The Nugget Coupler is designed to fit tubes with diameters between 32mm-38mm. It has double levels counter and sunk for M10 hex for customer solutions. Equipped with an M10 bolt and nut. It has a black anodized finish.

Features

Lightweight and low profile professional coupler,developed for installations where load capacities of up to 120kg are required
TUV approval, Unique window for safety wire access
M10 hex head bolt standard, double level's counter sunk for M10 or 3/8" hex head bolt.
Fits O.D. 32-38mm tube
High tensile 6061-T6 aluminum
SWL: 120kg
Black Finish

Specifications

Weight: 0.28kg
Color: Black
Product Height (cm): 3.2cm
Product Length (cm): 10.76cm
Product Width (cm): 10.67cm
Product Weight (kg): 0.28kg
Maximum Payload Capacity (kg): 120.0kg
Maximum Jaw Diameter (mm): 38.0mm
Minimum Jaw Diameter (mm): 32.0mm
Primary Material: Aluminum
Warranty: Limited Two-Year Warranty

Tags

Kupo Nugget Coupler, black nugget coupler, KCP-860, truss coupler black, 48-51mm truss coupler, black rigging clamp, heavy-duty truss coupler, lighting support coupler, professional rigging clamp, truss mount clamp, black truss accessory, secure truss coupler, stage lighting coupler, theater coupler black, event production coupler, aluminum coupler black, load-bearing truss clamp, Kupo truss accessory, lighting rig clamp, professional stage hardware, heavy-duty black coupler, truss rigging accessory, black aluminum clamp, Kupo black coupler, truss attachment clamp, stage black coupler, 32mm clamp, 38mm clamp

Code	Image	Product Name	Attributes		Price
KU-KCP-860B		Kupo KCP 860B; Nugget Coupler; 350 KG; 32-38mm; Black		Login For Price

Kupo KCP 862; Nugget Coupler Swivel; 350 KG; 32-38mm

Nugget Coupler Swivel Silver

KU-KCP-862

Overview

KUPO Nugget Swivel Coupler (KCP-862) is a lightweight and low profile professional coupler, constructed from high tensile aluminum extrusion. Working load limit is up to 120kgs. Nugget Coupler is designed to fit tubes with diameters between 32mm-38mm. For quick and easy interconnection for truss, pipes or bars.

It has double level's counter sunk for M10 or 3/8" hex head. Unique windows for safety wire access through. Hook struct of top opening section limits the open pace that offers assistance to rig. A captive on top of thread bolt to avoid wing nut falling off the clamp. TUV certified, and ideal for TV studio or theater.

Specification

Color: Silver
weight: 0.52kg
WLL: 120kg
6061-T6 aluminum extrusion
For dia. 32~38mm tube
T-handle
Double level's counter sunk for M10 or 3/8 hex head bolt
TUV certified

Tags

Kupo Nugget Swivel Coupler, KCP-862, silver swivel coupler, truss swivel coupler, rotating coupler, 32-38mm swivel coupler, adjustable truss clamp, lighting support coupler, truss connector, professional swivel clamp, stage swivel coupler, swivel truss mount, heavy-duty rotating coupler, rigging coupler with swivel, lighting rigging clamp, truss swivel attachment, secure swivel coupler, aluminum swivel clamp, silver truss swivel, event production swivel coupler, adjustable eye coupler, stage and event hardware, rotating truss attachment, Kupo rigging accessory, load-bearing swivel clamp, truss mount for lighting.

Code	Image	Product Name	Attributes		Price
KU-KCP-862		Kupo KCP 862; Nugget Coupler Swivel; 350 KG; 32-38mm		Login For Price

Kupo KCP 862B; Nugget Coupler Swivel; 350 KG; 32-38mm; Black

Nugget Coupler Swivel Black

KU-KCP-862B

Overview

KUPO Nugget Swivel Coupler (KCP-862B) is a lightweight and low profile professional coupler, constructed from high tensile aluminum extrusion. Working load limit is up to 120kgs. Nugget Coupler is designed to fit tubes with diameters between 32mm-38mm. For quick and easy interconnection for truss, pipes or bars.

It has double level's counter sunk for M10 or 3/8" hex head. Unique windows for safety wire access through. Hook struct of top opening section limits the open pace that offers assistance to rig. A captive on top of thread bolt to avoid wing nut falling off the clamp. TUV certified, and ideal for TV studio or theater.

Specification

Color: Black
weight: 0.52kg
WLL: 120kg
6061-T6 aluminum extrusion
For dia. 32~38mm tube
T-handle
Double level's counter sunk for M10 or 3/8 hex head bolt
TUV certified

Tags

Kupo Nugget Swivel Coupler, KCP-862, silver swivel coupler, truss swivel coupler, rotating coupler, 32-38mm swivel coupler, adjustable truss clamp, lighting support coupler, truss connector, professional swivel clamp, stage swivel coupler, swivel truss mount, heavy-duty rotating coupler, rigging coupler with swivel, lighting rigging clamp, truss swivel attachment, secure swivel coupler, aluminum swivel clamp, silver truss swivel, event production swivel coupler, adjustable eye coupler, stage and event hardware, rotating truss attachment, Kupo rigging accessory, load-bearing swivel clamp, truss mount for lighting.

Code	Image	Product Name	Attributes		Price
KU-KCP-862B		Kupo KCP 862B; Nugget Coupler Swivel; 350 KG; 32-38mm; Black		Login For Price

Kupo KCP 863; Nugget Eye Ring Coupler; 230 KG; 32-28mm; M10 Ring

Nugget Eye Ring Coupler Silver

KU-KCP-863

Overview

KUPO Nugget Eye Ring Coupler (KCP-863) is a lightweight and low profile professional coupler, constructed from high tensile aluminum extrusion. Working load limit is up to 120kgs.

Nugget Coupler is designed to fit tubes with diameters between 32mm-38mm.

For quick and easy interconnection for truss, pipes or bars. It has double level's counter sunk for M10 or 3/8" hex head. Unique windows for safety wire access through. Hook struct of top opening section limits the open pace that offers assistance to rig.

A captive on top of thread bolt to avoid wing nut falling off the clamp.

Equipped with M10 dia. 25mm eye ring for multipurpose use with chains, wires and ropes. TUV certified, and ideal for stage, event and studio.
