Control stations give your users the power to affect their lighting. The Paradigm Station Power Module (P-SPM-E) gives your Paradigm and Unison Heritage stations power.The P-SPM-E provides the power and data for up to 63 stations, using industry-standard two-wire cabling to simplify wiring.Paradigm Touchscreens and many interface stations require more power, and the Paradigm Station Power Module takes care of that, too. Simply adding low-voltage power conductors supplies 24VDC to all your stations.
Each Paradigm Station Power Module supports a total of 1,640 feet in any combination of wire runs from one processor. When you need to cover more distance, you can add a Paradigm Repeater or Dual Repeater to your system. The Repeater adds another 500 meters of additional wire length. The Dual Repeater allows an additional two 500-meter wire runs. Wall-mount and 19-inch equipment rack-mount versions of the Repeater and Dual Repeater Power Modules are available.

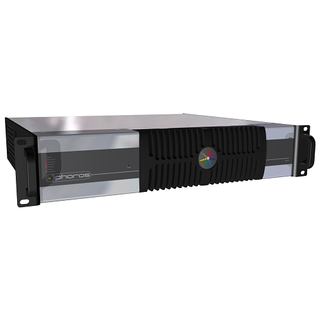

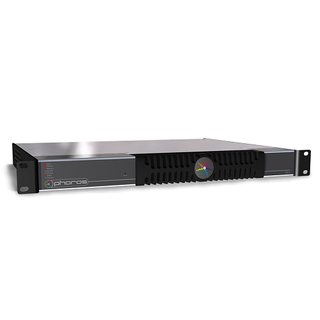

The award-winning Pharos LPC X (Lighting Playback Controller X) offers an extreme level of power and integration, making it an ideal lighting control solution for architectural and landmark lighting installations requiring significant channel counts.
It integrates with the full range of Pharos Designer products and offers an optional real-time video input.
As the big brother of the compact Pharos LPC, it is at the heart of a fully scalable Pharos Designer system that can be tailored to the needs of your commercial lighting project.
The LPC X is programmed using the free Pharos Designer 2 software and installations can be managed locally with the built-in web server, and from anywhere in the world via Pharos Cloud.
With the reliability you expect from Pharos and our expertise in dynamic lighting in architecture and entertainment: an easy to install, easy to use control solution.

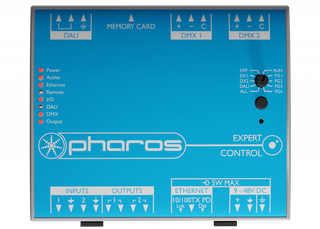

One controller
All you need. One box. Compact DIN rail enclosure with solid-state hardware for 24/7 operation and reliability. Up to 1024 channels of eDMX, two local DMX ports. DALI and I/O onboard. Simple networking for programming. Just the job.
Straightforward installation
Just PoE or 9-48V DC to power it, then install-friendly rising-clamp connectors and you're ready to go! Standard DIN rail fittings and incorporated keyhole hanging options make it easy to position.
Instant line testing
Out-of-the-box, the test modes on the rotary dial select the output ports and the push button allows raising and dimming levels for fixture testing. Test mode and levels can even be maintained indefinitely as working lights before commissioning and programming occur.
Network Connectivity
Whatever suits your installation - from a single Ethernet cable direct to a laptop just for programming, or a static, closed network just for your lighting data, to the facility's IT network for greater connectivity, or even the Internet to connect via Pharos Cloud for fully secure remote access.
Output to suit you
Controllers available in one DMX universe (512 channel) and two DMX universe (1024 channel) capacities. Output to various eDMX lighting protocols over Ethernet, with two self-healing ports for convenient patching to local DMX512. The DALI port supports up to 64 ballasts.
Easy I/O Integration
The two inputs / two outputs provide contact closure and low-volt relays to interface with controls such as fire alarm systems and key-switch overrides. Receive DALI messages from other controllers such as wall panels or occupancy sensors.
Intuitive programming
Layout your project and programme your lighting using the free Expert software from Pharos. With Helpers and all the tools you need in one manageable view, Expert will guide you through realising your design.

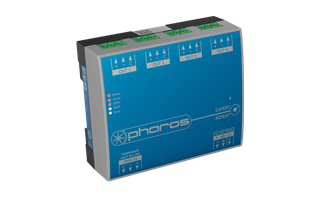

One-in-four-out, the incoming DMX signal from your Expert Control is regenerated from the isolated input port four times on individually galvanically isolated output ports and features self-healing resilience to mains voltages, for distribution to your fixtures.
Expert Repeat requires the same 9-48V DC power as Expert Control, and coordinates with your Expert Control, in the same form-factor and branding.

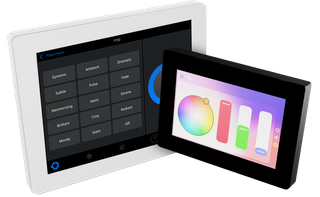

As well as the Expert Touch mobile app for Android and iOS devices, there are the stunningly elegant Expert wall stations with a seamless, uninterrupted glass front plate, providing a beautiful interface if your project requires frequent user interaction on a permanent wall-mounted installation. Available in White and Black, the 5" and 8" touchscreens provide automatically generated pages to access control of your lighting, based on programming in each Space, to activate scenes and adjust intensity and colour for each Space. Simple installation with just one cable, both Expert Touch 5 and Expert Touch 8 are Power-over-Ethernet devices. A Universal Mounting Plate which is compatible with back boxes worldwide is included, boasting a secure and ingenious wall-mount support mechanism.
The LPC is at the heart of the fully scalable Pharos Designer lighting control system which can be tailored to the needs of your project.
The LPC is programmed using the free Pharos Designer 2 software and installations can be managed locally with the built-in web server, and from anywhere in the world via Pharos Cloud.

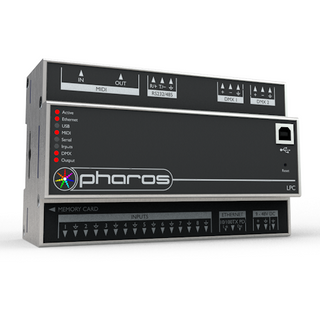

The Pharos LPC (Lighting Playback Controller) is an award-winning, all-in-one control solution for themed entertainment and LED lighting installations.
It features individually controllable and independently running timelines and scenes, letting you build dynamic, precise, fully customisable pre-programmed lighting effects with the freedom of real-time manual overrides and the versatility of powerful show control and integration features.
Its compact form factor and minimal power requirements make it suitable for installation anywhere – including in weatherproof enclosures or even on roller-coaster ride vehicles.
