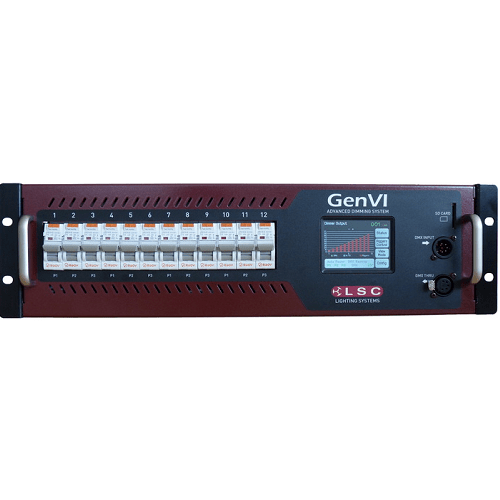

GENV1 Dimmer 12ch 2 x 19 Pin Socopex

Stock Code:
LSC-GEN V1
POA
Quantity Breaks
1+
POA
Please Call

Description

Equally, at home in the lighting, sound and video markets, the GenVI Advanced Dimming System allows the user to configure any of its outputs in any combination, to be an 8-bit or 16-bit dimmer or a direct power relay channel (TruPower). This enables the GenVI to dim traditional lamps or power moving lights, LED fixtures, video screens or audio power amplifiers – in fact, any situation where controlled power distribution is needed. It can also be permanently installed or remain portable.

The colour touchscreen offers the ability to set each channel individually, control the outputs locally and view any external fault conditions that may be present.

As well as having local and DMX control, GenVI is also RDM (Remote Device Management) enabled, allowing the user to change the DMX address of the unit and view any fault conditions including over-temperature and loss of phase or DMX signal from any RDM controller.

Each circuit on the GenVI is protected by an RCBO (combination MCB + 30mA RCD) rated at either 10A, 16A or 25A. Optional Neutral Disconnect MCBs can be provided where RCBOs are not desirable.

The GenVI Advanced Dimmer System offers a sophisticated rigger’s control that can replay Scenes or Chases, each of which can be individually programmed in addition to a ‘DMX loss’ Scene that can be activated as an emergency backup on loss of a DMX signal. This emergency backup scene can be programmed via the front-panel controls or via a snapshot of the DMX input signal.

  • TruPower dimmer and power distribution
  • RCBO circuit breaker per channel
  • Auto Power Mode – switches relay channels On when DMX is applied and Off when DMX is no longer present
  • Dimmer channels can be 8-bit or 16-bit
  • RDM – Remote Device Management enabled
  • Operates on mains input voltages between 90V and 260V phase to Neutral
  • On-board Help screens
  • Visual alarms for Phase Fail, over-temperature and loss of DMX
  • PTFD (Pulse Transformer Fired Dimming)
  • Local rigger’s control
  • Auto fan control (user-defined)
  • Colour touchscreen with simple and intuitive navigation

GenVI is equally at home controlling any of the following loads:

  • Conventional filament lamps
  • Leading-edge dimmable LED globes
  • Moving lights
  • LED fixtures
  • Video walls
  • Audio systems
  • Special effects
