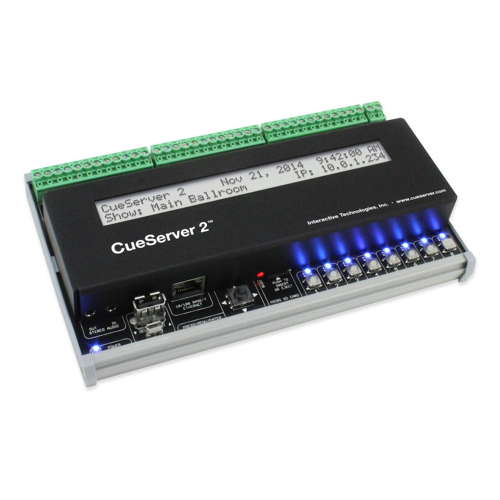

CueServer 2 DIN (CS-950) is housed in an enclosure suitable for DIN rail, surface, or panel mounting. The DIN rail brackets accommodate standard 35mm rail. Mounting flanges are included for surface or panel mounting.

Connections for power, DMX, contact closures, and digital outputs are made using removable terminal blocks across the top edge of the unit. Ethernet, USB, and stereo audio are connected along the bottom edge.

CueServer 2 DINs front panel has eight customizable function buttons. Each button has a fully controllable RGB indicator. A navigation joystick is used to operate the onboard LCD menu for basic system settings, show selection, and macro execution.

Key Features

Completely self-contained lighting playback, architectural processor, and DMX fade engine
Seamless handling of Cue Lists, Presets, and Streams
Control of up to 32 universes of DMX or 32 independent playback timelines
Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
Four bi-directional DMX ports may be configured as inputs or outputs
Front-panel configurable function buttons with RGB indicator LEDs
Creation of lighting scenes directly or capture from external sources
Powerful CueScript scripting language
Real-Time clock with astronomical functions and calendar events
Built-in web server for hosting custom interactive web pages
Multi-show storage and removable Micro SD memory card
System integration via Ethernet, Serial, Digital I/O, and Audio
Compatible with CueStation buttons and CueTouch touchscreens
Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
Native programming environment for Mac and Windows
Standard DIN-Rail mounting or surface/panel mounting
