6203 Pathport C-Series 2-port XLR5F & XLR5M

Stock Code:
PP-6203
POA
Quantity Breaks
1+
POA
Limited Stock

Description

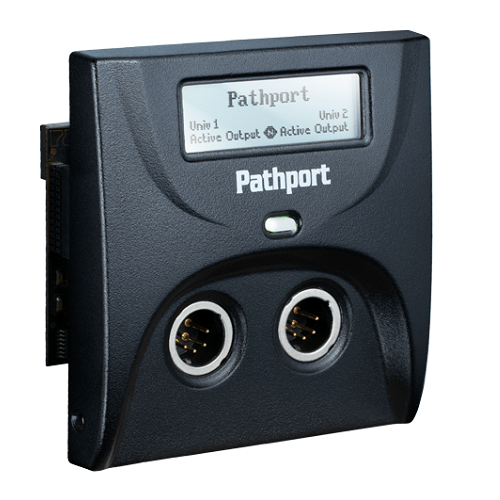

The original and most popular Pathport™ gateway. Suitable for flushmount, permanent installation, or for portable use.

  • Two DMX512 ports, individually configurable
  • DMX routing on a universe or channel-by-channel basis
  • Multiple source merging or prioritizing
  • DMX output speed and signal loss behavior user-set
  • LCD  display provides status feedback
  • Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
  • E1.20 RDM compliant as proxy device
  • Manage up to 128 RDM responders per port
  • Fits standard 2-gang, deep backbox
  • Surface mount or portable enclosures as accessories
  • Elegant design suitable for any location
  • Supports the following Ethernet protocols:
    • E1.31 Streaming ACN (sACN)
    • Strand Shownet
    • Pathport Protocol
    • Art-Net
    • ETC Net2 (receive only)



Model   Description
6201 Pathport C-Series gateway with 2 DMX Inputs
6202 Pathport C-Series gateway with 2 DMX Outputs
6203 Pathport C-Series gateway with 1 DMX Input and 1 DMX Output
