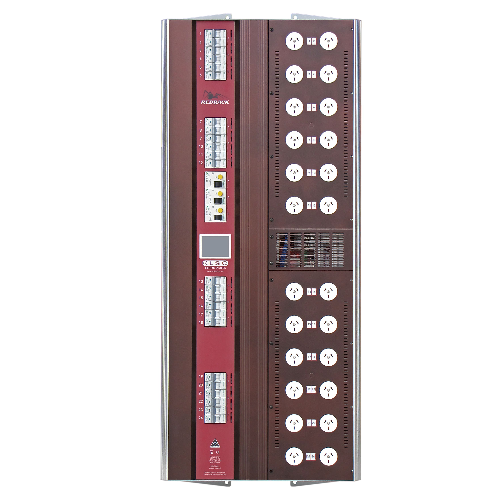

RB4/12A Red Back Dimmer with 12 x Outlet
Description
Control
DMX512 1990), DMX512-A (E1-21) with RDM (E1-20) compatibility via internal terminal blocks. Option for bottom panel XLR 5-pin connector module available for plug-in DMX/RDM
remote monitoring, configuration and control via RDM
easy-to-read 2.8" full-colour TFT touchscreen complete with on-board context sensitive Help
graphical user interface for simple configuration and control of the dimmer
two dimmer curves per output channel
full 512 channel Softpatch that allows patching of any DMX channel to any number of dimmer channels
six programmable scenes with individual fade times
rigger’s control for local control of outputs, complete with multiple inbuilt chase options with speed control
easy software update via internally located SD card slot
user-selectable minimum (bottom set) level per channel to allow preheating of lamps
user-selectable maximum (top set) level per channel to reduce output and increase lamp life
architectural control via push-button wall plates (ordered separately) – a maximum of four plates can be connected up to 200m away from dimmer and can remotely activate six stored static scenes
Protection
12 channel x 10A RCBO breakers with 30ma trip per channel
multilevel user interface lock to prevent accidental changes to settings
programmable DMX512 backup scene with delay time, that can be automatically activated with loss of main DMX512 signal
visual alarms for phase fail, over temperature and loss of input signal
panic (fire) input connection (dry contact closure activates an emergency scene)
Outputs
100% duty cycle rated at 25°C ambient with all channels fully loaded
choice of front panel mounted 3-pin Australian output connectors, or internal hardwired screw terminals
manual bypass switch per output channel to provide direct 240V power for non-dim loads
