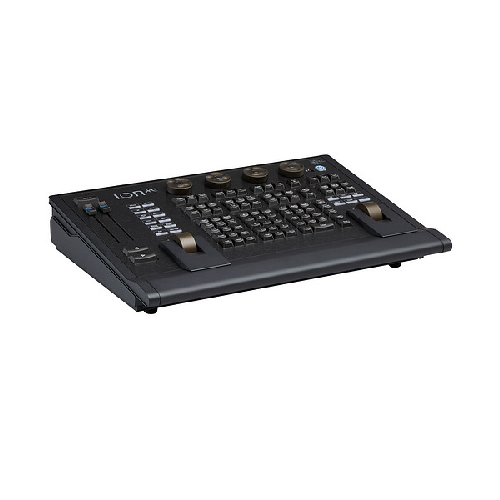

ION XE 12K Lighting Console with 12288 Outputs/Parameters

Stock Code:
ETC-IONXE-12K
POA
Quantity Breaks
1+
POA
Please Call
Lead Time:
Demo Available

Description

Ion Xe

From small auditoriums and houses of worship to experimental venues and touring shows, Ion-class lighting control consoles are the compact workhorses of the Eos Family. With the same backlit keyboard layout and full-featured software as their Gio- and Apex-class siblings and the option of hands-on fader control – Ion Xe consoles give you the full Eos experience in a budget-friendly and portable package.

  • 12,288 Outputs
  • 32,768 Control Channels (mapped to any number from 1 to 99,999)
  • 100,000 Cues
  • 999 Cue Lists
  • 999 Submasters
  • 100 Fader Pages
  • 4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
  • 10,000 Presets (all palette)
  • 10,000 Groups
  • 10,000 Effects (relative, absolute or step)
  • 99,999 Macros
  • 10,000 Snapshots
  • 10,000 Curves
  • 10,000 Color Paths
  • 99 discrete users
  • Partitioned control
  • Show import from Obsession, Express, Expression, Emphasis, Congo, Cobalt, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
  • Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
  • Magic Sheets suite for customized user programming and displays
  • Virtual Media Server function for pixel-mapping effects, images, and animations
  • Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
  • Main Playback with two 100mm standard faders
  • Four encoders for non-intensity parameter control
  • Dedicated high-resolution intensity level wheel
  • Backlit Eos keypad
  • Included USB keyboard
  • Solid-state hard drive
  • IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
  • Two individually configurable Gigabit Ethernet ports, RJ45 connectors
  • One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
  • Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
  • sACN and Art-Net network output protocols
  • Four DMX-512 / RDM 5-pin XLR ports
  • Contact closure triggers via D-Sub connector
  • USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
  • One Littlite XLR port
  • One Kensington lock port
  • Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
