CM Lodestar 500KG D8+ Chain Hoist Model F 4.9 m/min no chain or bag

Stock Code:
PAH-LS500D8+F
POA
Quantity Breaks
1+
POA
Please Call

Description

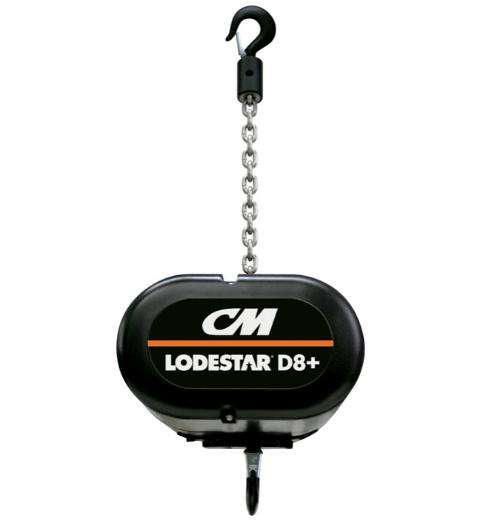

Lodestar NH D8+ Entertainment Electric Chain Hoist

The Lodestar D8+ meets all 2018 SQP2 requirements and is the only product on the market certified to meet this standard by TUV SUD. With a design factor of 8:1 and double braked installed, the Lodestar D8+ meets the highest level of safety for all world standards.

Highest Level of Safety

Made in the USA, the Lodestar D8+ ensures the highest level of safety for permanent application and global tours. Designed to suspend loads without the need for secondary support, saving cost and time in rigging.

The clutch, located outside the load path, acts as a precise overload device. The zinc-plated or Black Phosphate Star Grade EN chain satisfies EN818-7 standards.

FEATURES AND BENEFITS

Lodestar NH D8+ Entertainment Electric Chain Hoist

IP66 RATING

An Ingress Protection (IP) Rating of 66 indicates that the Lodestar offers protection from dust and high-pressure water - making this unit ideal for use in outdoor environments.

OVERLOAD PROTECTION

The clutch outside of the gear train meets international standards. Designed to prevent damage to the hoist by preventing excessive overloads.

QUIET AND SMOOTH OPERATION

With a 5-pocket lift wheel

LONG LIFE AND SMOOTHER OPERATION

Designed with precision helical gearing.

REDESIGNED CONTROL PANEL

Provides easier access.

QUICK ACCESS AND EASY INSPECTION

The heavy-duty DC brake location allows for quick access and easy inspection.

LOW VOLTAGE CONTROL

DUTY CYCLE

H-4 duty rated for heavy-duty application.

ELECTRICAL

Finger-safe wiring meets all electrical codes Quick change plugs allow for voltages 230 through 460. Prevents improper voltage connections which can cause hoist damage.

ADJUSTABLE LIMIT SWITCH

Adjustable limit switch that automatically stops the hook at any predetermined point when lifting or lowering, preventing overtravel.

METRIC-RATED LOAD CHAIN

Zinc plated to protect against corrosion. Black phosphate finish optional.

ROAD READY

Easy to stow and travel.

WARRANTY

Lifetime warranty

Internal Load Cell Technology Available

New internal load cell technology, available on the CM-ET family of Lodestar hoists, gives you the power to recognize safety issues before they occur, especially in automation applications where hoists are used in tandem.

Built and designed to work with the CM Lodestar, this load sensing technology seamlessly connects to your existing load monitoring controls.
