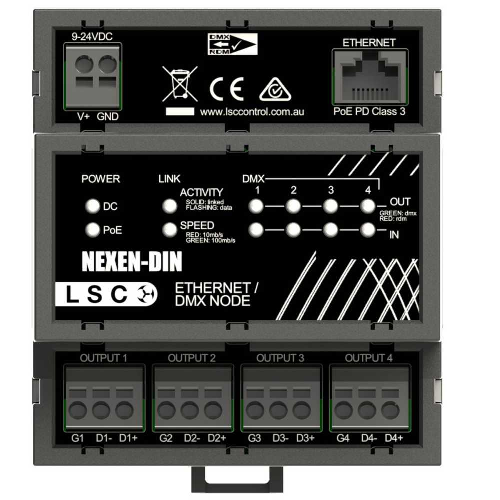

LSC Control; NEXEN-DIN; Node; 4 Port; Push Terminals; RDM
Stock Code:
LSC-NXD-T
Quantity Breaks
1+
Limited Stock
Description
LSC Control NEXEN
Ethernet/DMX Converters
The NEXEN family is a new range of Ethernet/DMX converters providing reliable conversion of protocols of the entertainment industry including Art-Net, sACN, DMX512-A, RDM, and ArtRdm.
Inputs/Outputs
- RJ45 Ethernet connector
- 4 x DMX/RDM ports on push-fit terminals
Power Specifications
- PoE via RJ45 Ethernet connector
- 9-24V DC reverse polarity protected power source via 2-pole push-fit terminals
Mechanical Specifications
- UL94-VO rated ABS plastic 5-module wide DIN housing
- TS-35 Top Hat DIN rail mount (IEC/EN 60715)
Features
- Any port can be configured as an Input or Output
- Art-Net merging
- sACN priority by source and channel
- ArtRdm active with/without DMX
- ArtRdm on sACN ports
- RDM injector: Receive DMX on input port, send DMX + RDM on output port
Control
- Configure and monitor via HOUSTON X
- Enable/Disable RDM per port
- Supports Art-Net, sACN, ArtRdm
- DMX and RDM (E1-20)
Protection
- Full electrical isolation between individual DMX/RDM ports
- Reverse polarity protection on DC power input
