LSC Control; MDR-DIN Splitter; Push Terminals; RDM; 4 Outputs
Stock Code:
LSC-MDRD-T
POA
Quantity Breaks
1+
POA
In Stock
Description

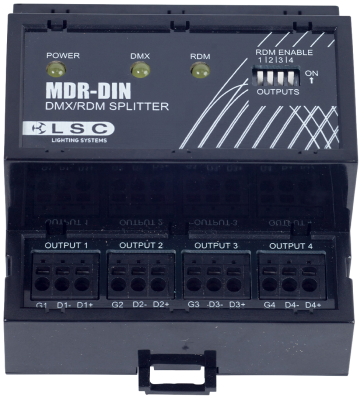

MDR-DIN
Your Project's Solution
Based on LSC’s popular MDR range of professional DMX512/RDM splitters, the MDR-DIN has been specifically designed for the permanent installation market. Utilizing the industry standard DIN-rail mounting concept, the MDR-DIN provides four isolated outputs in a convenient compact package.
Control Features
- DMX and RDM (E1-20) via front-panel connections
- RDM-enable switch per output to enable RDM data to pass through the unit
- Indicator LEDs for power, DMX, and RDM activity
Protection
- Full electrical isolation between input and outputs and between all outputs
- RDM-disable switch per output to disable RDM on that output if a problem device is connected
Input Specifications
- 9-24V DC reverse polarity protected power source via 2-pole push-fit terminals (max power draw = 5W)
- One DMX512 input via RJ45 connector
- One DMX512 input via 3-pole push-fit terminals
- One DMX512 thru via RJ45 connector
Outputs
- Four DMX512 outputs via 3-pole push-fit terminals
Mechanical Specifications
- UL94-VO rated ABS plastic 5-module wide DIN housing
- Dimensions: 88mm (w) x 104mm (d) x 59mm (h)
- Weight: 160g
- TS-35 Top Hat DIN rail mount (IEC/EN 60715)
