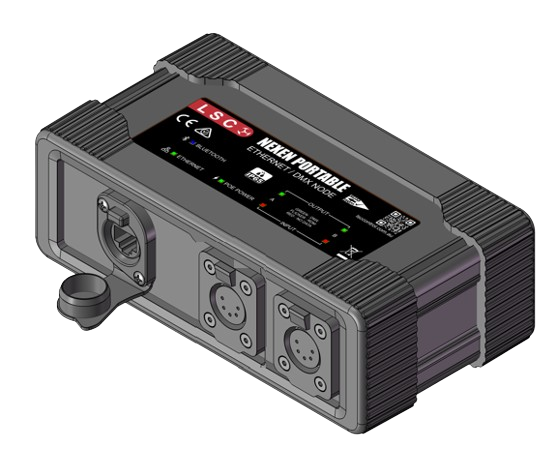

LSC Control; NEXEN; 2 Port; 5 Pin FXLR; RDM; Portable Node; IP65
Stock Code:
LSC-NXNP-2XY
POA
Quantity Breaks
1+
POA
Please Call
Description
LSC Control NEXEN
Ethernet/DMX Converters
The NEXEN family is a new range of Ethernet/DMX converters providing reliable conversion of protocols of the entertainment industry including Art-Net, sACN, DMX512-A, RDM, and ArtRdm.
Inputs/Outputs
- RJ45 Ethernet connector
- IP65 rated Ethercon RJ45 connector
- 2 x DMX/RDM ports on IP65 female XLR5 connectors
- USB-C for direct PC connection
Power Specifications
- PoE via IP65 Ethercon RJ45 connector
- 9-24V DC reverse polarity protected power source via 2-pole push-fit terminals
- USB-C
Mechanical Specifications
- Rugged IP65 full metal box with rubber bumpers and reverse printed polycarbonate labelling
- Optional mounting bracket with keyhole slots for wall mounting and M10 thread for hanging
Features
- Any port can be configured as an Input or Output
- Art-Net merging
- sACN priority by source and channel
- ArtRdm active with/without DMX
- ArtRdm on sACN ports
- RDM injector: Receive DMX on input port, send DMX + RDM on output port
Control
- Configure and monitor via HOUSTON X
- Enable/Disable RDM per port
- Supports Art-Net, sACN, ArtRdm
- DMX and RDM (E1-20)
Protection
- Full electrical isolation between individual DMX/RDM ports
- Reverse polarity protection on DC power input
