LSC Mantra Mini
Stock Code:
LSC-MANTRA-MINI
POA
Quantity Breaks
1+
POA
Please Call
Description

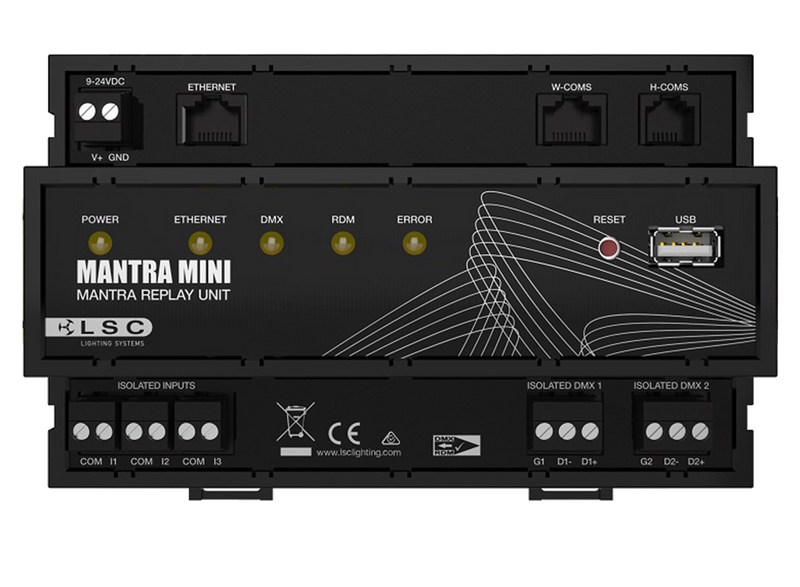

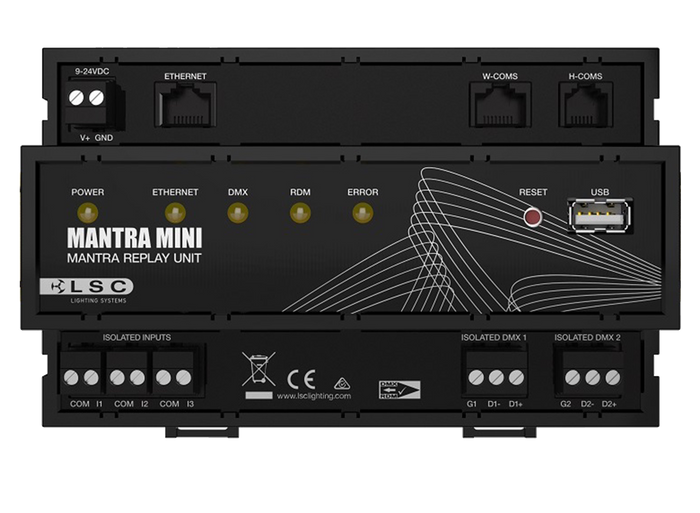

Mantra Mini
What You Imagine, You Create
The Mantra Mini is a brilliant playback unit with unparalleled features for controlling conventional and intelligent lighting. It is ideal for static displays, exterior building lighting, visual display lighting, house and foyer lights, and trade exhibitions.
Control Features
- Control up to 48 fixtures on 1024 DMX slots.
- Support for up to 100 active simultaneous cues.
- Massive memory capacity—store over 1,000 shows internally.
- Play default cues on power-up.
- Status logging and reporting for performance tracking.
- Remote app for Windows and MAC-based devices allows loading, editing, and storing show information.
- UDP, TCP/IP, and OSC interfaces for remote control by third-party control panels.
Inputs
- DMX inputs.
- USB port for show data upload/backup and software upgrades.
- Three isolated contact closure inputs via 2-pole plug-in screw terminals for fire, emergency, or playing cues.
- Live console override via Art-Net or sACN.
- UDP via Ethernet for third-party remote control.
Outputs
- Dual DMX512 outputs via two 3-pole plug-in screw terminals.
- Art-Net and sACN outputs via Ethernet connection.
- Room linking via Ethernet; requires one Mantra Mini per room.
- Expansion port for future-proofing.
Power Specifications
- Power over Ethernet (PoE) via RJ45 Ethernet connector.
- 9-24V DC supply (20W max) via 2-pole plug-in screw terminals (external power supply not included).
Mechanical Specifications
- Dimensions: 158mm (W) x 59mm (D) x 104mm (H).
- Weight: 350g.
- TS-35 DIN rail-mount, high-strength, flame-retardant ABS plastic chassis.
