ZEO
Description
High End Systems Zeo
Bold Looks. Pure Energy.
Zeo is a genre-defying effects fixture designed to command attention. Whether used as a wash, beam, strobe, or blinder, Zeo delivers massive output and a look unlike anything else on stage.
At the centre of Zeo’s unmistakable design is a powerful LED monolith, surrounded by four precision reflectors, each driven by its own high-output RGBW engine. Together, they create a striking visual signature that can function as a unified wash or split into distinct beams for dynamic, high-energy effects.
With over 30,000 lumens, individual cell control, and an extensive library of macros, Zeo makes complex looks accessible at any programming level — from simple, impactful hits to intricate pixel-driven effects.
Output
Zeo delivers over 30,000 lumens, providing the intensity required for strobes, blinders, and bold visual statements.
Colour
Four 300 W RGBW LED engines deliver rich colour mixing and vibrant output, enhanced by optional beam homogenisation for smoother blends.
Optical Design
Zeo's patented Quad Reflector system and HaloGraphic Pixel Definition technology allow the fixture to operate as a cohesive wash or split into defined beams, all within a 13 Deg - 55 Deg field angle.
Control
Full individual cell control enables detailed pixel effects, while inclusive, flex, and strobe macros make powerful looks easy to access.
Effects
A motorised light concentration system focuses output for maximum impact, while a wide selection of macros supports fast programming and repeatable results.

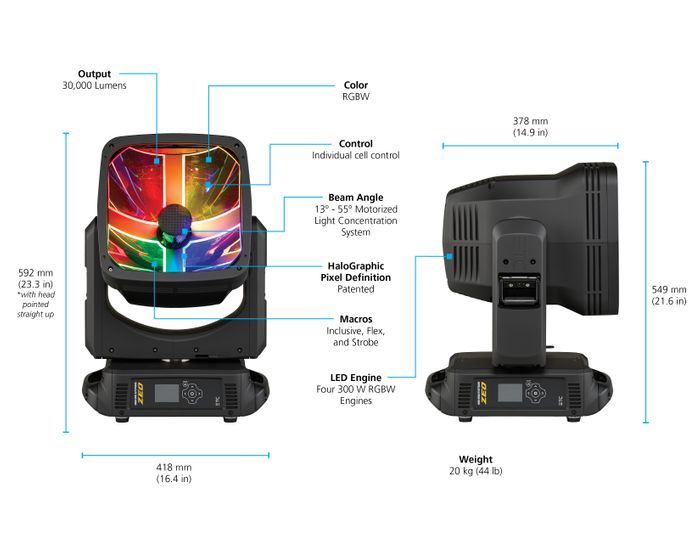

Key Specifications
-
Output: 30,000 lumens
-
Colour: RGBW
-
LED Engine: 4x 300 W RGBW cells
-
Control: Individual cell control
-
Beam Angle: 13 Deg - 55 Deg
-
Macros: Inclusive, Flex, and Strobe
-
Weight: 20 kg
