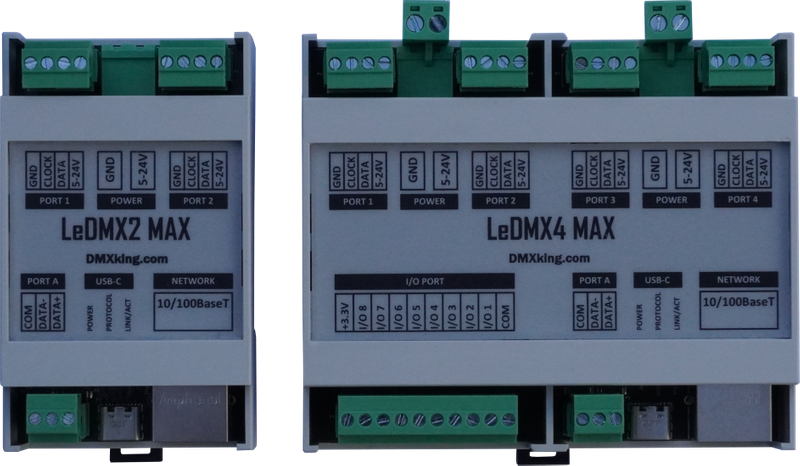

DMX King LeDMX 4 Max

Stock Code:

LEDMX-4-MAX

POA

Quantity Breaks

POA

Make an Enquiry

Please Call

Notify When in Stock

Description

Description

DMX KING Pixel Controllers

Powerful pixel control, flexible networking and advanced show management - built for professional lighting applications.

Ports & Form Factor

Flexible hardware designed to integrate into a wide range of professional lighting installations.

Pixel Outputs

2 or 4 pixel ports
Map up to 6 universes per port
Up to 1,020 RGB pixels per port
Pixel type selectable for each port

DMX & Mounting

Independent DMX512 port
DIN rail mounting
Fixed-mount installation
5–24 VDC power supply support

Multiprotocol Support

Broad protocol compatibility makes DMX KING Pixel Controllers suitable for virtually any modern pixel lighting environment.

Pixel Protocols

All common SPI pixel protocols
8-bit and 16-bit operation
2, 3, 4 and 5-channel configurations

Network Protocols

sACN (ANSI E1.31)
Art-Net 4

DMX

DMX512
RDM (ANSI E1.20)

Works With Your Control System

Integrate seamlessly into your existing lighting control infrastructure.

Control & Playback

Pixel mapping software
Media servers
Computer lighting software
Architectural lighting controllers
Standalone playback

Built-In Show Recorder

Record lighting data from multiple sources and play it back directly from the controller.

Record From Any Source

sACN stream
Art-Net stream
DMX-IN source
USB DMX source

Playback Outputs

Pixel port output
DMX port output
Network stream to other hardware

Universe Selection

Automatic selection from port configuration
Specified list of up to 32 universes
Universes not used by the node

Playback Triggering

Art-Net ArtTrigger show playback
External I/O
DMX universe playback triggering
Scripted triggering

Standalone Playback

Run shows directly from the controller without requiring a connected lighting console or computer.

Playback Features

Playback show list
Timed playback
Contact closure trigger inputs
Standalone operation as failover

Static Scenes

Create and recall static lighting scenes directly from the controller.

Scene Management

Record static scenes internally without an SD card
Fade static scenes during playback
Generate sACN or Art-Net streams during scene playback

sACN Priority Handling

Manage multiple control sources with intelligent priority, merging and transition options.

Multiple Sources

sACN streams
Art-Net streams with priority
USB DMX streams with priority
Playback streams

HTP / LTP Merge

Pixel port HTP merge sources
DMX port HTP/LTP merge sources
Higher-priority stream takeover

Smooth DMX Transitions

Fade Out / Fade In priority change
Crossfade priority change
Immediate switch priority change

Advanced Mapping & Dimming

Powerful mapping and level-control tools provide precise control over complex pixel and DMX installations.

Pixel Mapping

Pixel colour re-mapping
Grouping or repeat mapping
Alternate mapping selector based on stream priority

Master Level Control

Pixel port master level
DMX512 port master level
External universe control for master levels

DMX Port Dimming Map

Configurable dimming channel map
8-bit / 16-bit dimmer channel
8-bit / 16-bit PTZ / effects channel
Apply dimming only to appropriate channels

Flexible Deployment Options

Powerful configuration and deployment tools make setup, diagnostics and system replication simple.

Device Configuration Utility

Easy access to device parameters
Diagnostics functionality
Recorder controls
DMX universe generator for testing

Configuration Files

YAML-based configuration file
Transfer from SD card to internal storage upon boot
Configuration and recorded shows easily replicated from SD card

Mixed Pixel Types

Pixel type selectable for each port
5–24 VDC power supply
LeDMX4 MAX split supply for two power domains

One Controller. Multiple Possibilities.

From architectural installations and pixel displays to live events, media servers and standalone systems, DMX KING Pixel Controllers deliver the flexibility and control needed for demanding lighting environments.
