LSC Control APSX Distro; 12 Channel; 10A; Powercon

Stock Code:

LSC-APXR12-10P

POA

Quantity Breaks

POA

Make an Enquiry

Please Call

Notify When in Stock

Description

Description

APSX 12-Channel Power Distribution Unit

12 x 10A - Powercon

Advanced Power Distribution with Ethernet Connectivity

Elevate your power management capabilities with the new APSX 12-Channel Power Distribution Unit. Designed for the most demanding applications, the APSX seamlessly powers numerous LED screen panels, audio amplifiers, and moving lights, making it an essential tool for any professional setup.

Key Features

Smart Control: Equipped with a vibrant 3.2" color LCD touchscreen, the APSX offers a user-friendly interface that allows for programmable stand-alone operation via intuitive menus.
Versatile Connectivity: Supports sACN (E1-31), Art-Net, ArtRDM, and OSC through an Ethercon RJ45 connector, along with DMX512 inputs featuring RDM functionality via 5-pin XLR connectors.
Reliable Protection: Each channel is safeguarded with 12 x 10A RCBO breakers featuring a 30mA trip. The Proactive Dropped Neutral Protection (PDNP) ensures that outputs remain inactive until input voltages and neutral wiring are verified, protecting your equipment from potential damage.
Programmable Features: Enjoy programmable channel sequential start-up delays, cascading start-up between multiple units, and customizable min/max voltage cut-offs per phase for complete control over your power distribution.
Comprehensive Monitoring: Monitor 3-phase voltage and current levels directly on the main display, and configure or monitor remotely via the RDM protocol or
LSC's HOUSTON X software.

Power Specifications

Input Voltage: Nominal 100-240V, 3-phase star, 50-60Hz (single-phase operation possible, max 63A).
Operating Range: Typically 90-260V, 45-65Hz.
Connection: All units are supplied with a 1.2m long H07 rubber 5 core x 6mm cable.
Plug Type: Fitted with a 32A 5-pin 3-phase plug for immediate usability.
Output Type: Powercon

Dimensions & Build Quality

Size: 483mm (w) x 300mm (d) x 132mm (h)
Weight: 11kg

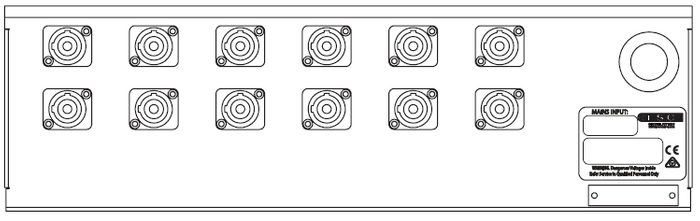

Durable Design: Built with a full metal chassis and rear-screened polycarbonate labels for enhanced durability, while the touchscreen, DMX inputs, GPI inputs, and RCBOs are conveniently located on the front panel. Output connectors and power input cable are located on the rear panel.

1.2m Cable not long enough? Pair it with an LS Cable 3 Phase Cable
