Elevate your power management capabilities with the new APSX 12-Channel Power Distribution Unit. Designed for the most demanding applications, the APSX seamlessly powers numerous LED screen panels, audio amplifiers, and moving lights, making it an essential tool for any professional setup.

Key Features

Smart Control: Equipped with a vibrant 3.2" color LCD touchscreen, the APSX offers a user-friendly interface that allows for programmable stand-alone operation via intuitive menus.
Versatile Connectivity: Supports sACN (E1-31), Art-Net, ArtRDM, and OSC through an Ethercon RJ45 connector, along with DMX512 inputs featuring RDM functionality via 5-pin XLR connectors.
Reliable Protection: Each channel is safeguarded with 12 x 16A RCBO breakers featuring a 30mA trip. The Proactive Dropped Neutral Protection (PDNP) ensures that outputs remain inactive until input voltages and neutral wiring are verified, protecting your equipment from potential damage.
Programmable Features: Enjoy programmable channel sequential start-up delays, cascading start-up between multiple units, and customizable min/max voltage cut-offs per phase for complete control over your power distribution.
Comprehensive Monitoring: Monitor 3-phase voltage and current levels directly on the main display, and configure or monitor remotely via the RDM protocol or
LSC's HOUSTON X software.
.

Power Specifications

Input Voltage: Nominal 100-240V, 3-phase star, 50-60Hz (single-phase operation possible, max 63A).
Operating Range: Typically 90-260V, 45-65Hz.
Connection: This model is designed to be hardwired
Plug Type: Terminals
Output Type: Terminals

Dimensions & Build Quality

Size: 483mm (w) x 300mm (d) x 132mm (h)
Weight: 11kg

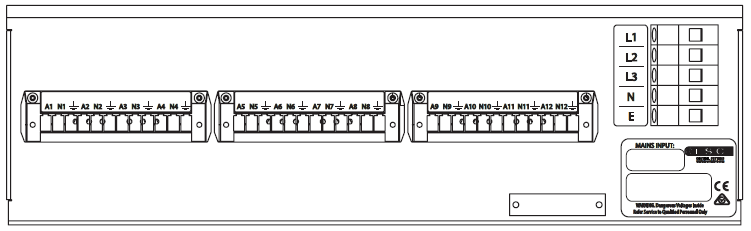

Durable Design: Built with a full metal chassis and rear-screened polycarbonate labels for enhanced durability, while the touchscreen, DMX inputs, GPI inputs, and RCBOs are conveniently located on the front panel. Output connectors and power input cable are located on the rear panel.
