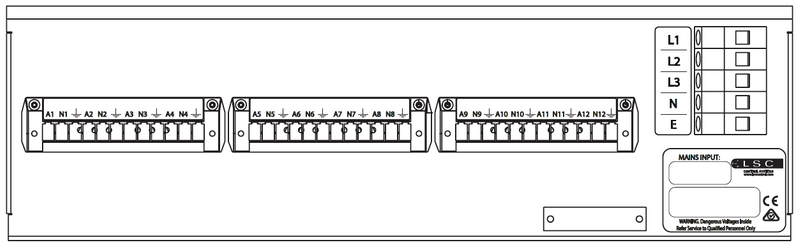

LSC Control; RED; 12 Channel; 10 Amp; Terminals
Stock Code:
LSC-RED12-10T
POA
Quantity Breaks
1+
POA
Please Call
Description
LSC Control RED3
12 Channel; 10 Amp; Terminals
Simple Power Dimming
The RED3 rackmount entry-level dimmer can be controlled by any DMX512 lighting controller. A clever built-in colour TFT screen provides quick access to most functions and allows stand-alone operation without a controller being connected.
Outputs
- 12 channels x 10A maximum per channel dimmer output
- 100% duty cycle rated with all channels fully loaded
Control
- DMX with RDM (E1-20) compatibility via front panel mounted 5-pin AXR-style connectors
- Remote monitoring, configuration and control via RDM
- Graphical user interface for simple configuration and control of the dimmer
- Two dimmer curves per output channel
- Full 512 channel Softpatch that allows the patching of any DMX channel to any number of dimmer channels
- Rigger’s control for local control of outputs, complete with multiple inbuilt chase options
- Easy software update via front panel mounted SD card slot
- User-selectable minimum (bottom set) level per channel to allow preheating of lamps
- User-selectable maximum (top set) level per channel to reduce output and increase lamp life
Protection
- 10A Thermal Magnetic Circuit Breaker (MCB) per output channel
- Multilevel user interface lock to prevent accidental changes to settings
- Programmable DMX512 backup scene with delay time, that can be automatically activated with loss of main DMX512 signal
- Visual alarms for phase fail, over temperature, and loss of input signal
Power Specifications
- Nominal 100-240V AC, 3-phase star TN-S with fully rated earth, 50-60Hz
- Operating range typically 90-260V AC, 45-65Hz auto voltage and frequency adjustment with dropped neutral protection
Mechanical Specifications
- Dimensions: 483mm (w) x 132mm (h) x 300mm (d) – 3RU x
