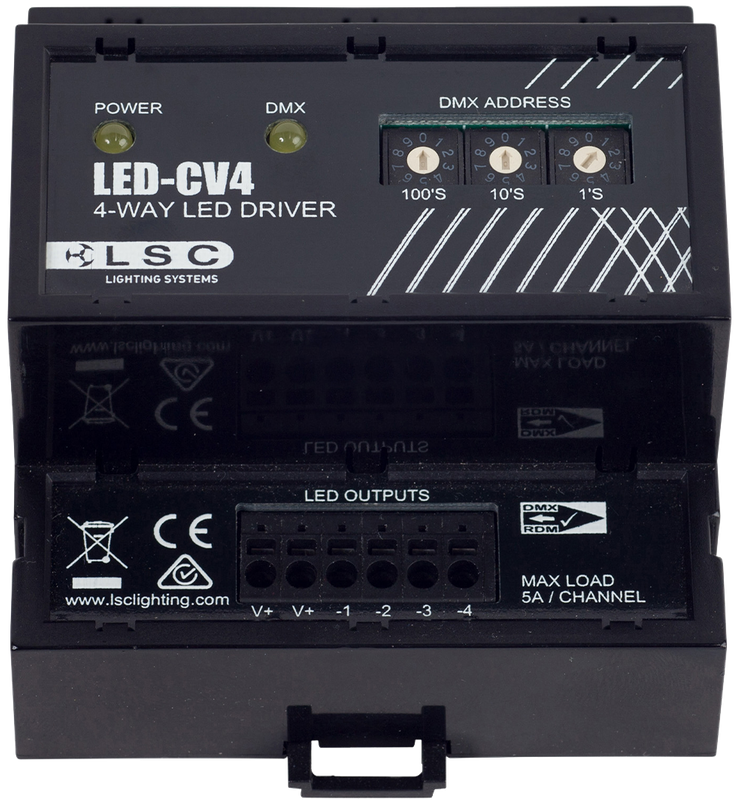

LSC Control; 4 Way LED Driver
Stock Code:
LSC-LED-CV4
POA
Quantity Breaks
1+
POA
Please Call
Description
LSC Control LED-CV4
LED by Design
Affordability and reliability don’t normally go hand-in-hand – until now. The LED-CV4 is a 4-channel LED dimmer marrying the latest technology, years of experience, and good, old-fashioned quality to deliver unparalleled performance at an exceptional price.
Control Features
- DMX and RDM input and thru connectors via a choice of RJ45 connectors or 3-pole push-fit terminals
- DMX512 addressing via front-panel decimal encoders or via RDM protocol
Protection
- Short-circuit protection per output with auto-reset
Monitoring
- Real-Time monitoring of loads, accurate to 100mA, reportable via RDM protocol and LSC’s HOUSTON X software
- No-load detection per output reportable via RDM protocol and LSC’s HOUSTON X software
- Remote configuration, fault reporting, auditing, system logging, and monitoring via LSC’s HOUSTON X software on Windows and Mac computers as well as Android and iOS tablets
- Configuration, monitoring, and software upgrades via HOUSTON X over DMX512 cabling
Outputs
- 4 channels x 5A constant voltage PWM dimmer outputs via push-fit terminals
- Selectable frequency output (1, 2, 3, or 4 kHz)
- 100% duty cycle rated for each output at either 12V or 24V
- 8-bit or true 16-bit dimming per channel, set over RDM
- Proprietary smoothing algorithm for stepless dimming on 8-bit control
Power
- 9-24V DC input – reverse polarity protected, via 2-pole push-fit terminals
Mechanical Specifications
- Dimensions: 88mm (w) x 104mm (d) x 59mm (h)
- Weight: 165g
- Standard TS35 DIN rail mount
- ABS plastic UL94-VO rated housing
