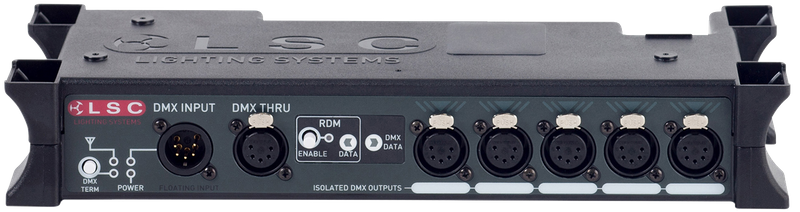

LSC Control; MDR Splitter; 5 Way; Truss Mount; RDM; 5 Pin; Powercon
Stock Code:
LSC-MDRT-P
POA
Quantity Breaks
1+
POA
Please Call
Description
LSC MDR Splitter
DMX/RDM Data Splitters
The comprehensive range of upgradeable MDR professional DMX512/RDM data splitters deliver industry-best protection, providing correct DMX512 earth isolation and data integrity. What else would you expect from the company who helped write the DMX512 standard?
Model Variation
- Truss Mount
- 5 Pin XLR
- 5 Way
- Powercon
Control Features
- DMX and RDM (E1-20) via front-panel connectors
- Termination switch to set end-of-line DMX termination on the input
- RDM On/Off switch to enable/disable RDM return data
- Indicator LEDs for power and DMX and RDM activity
Protection
- Inputs galvanically isolated from outputs to 1500V
- All outputs galvanically isolated from each other to 1500V
- EMI-filtered and current-limited to protect against short circuits
Power Specifications
- Built-in switch mode power supply (85-264V AC) with auto-frequency sensing (47-63Hz)
Mechanical Specifications
- Corrosion-resistant, powder-coated metal housing with rear-screened polycarbonate front panel
