LSC Control; FIlm Pro; 6 Channel; 10A; Socapex
Stock Code:
LSC-FILMPRO-6C10
POA
Quantity Breaks
1+
POA
Please Call
Description

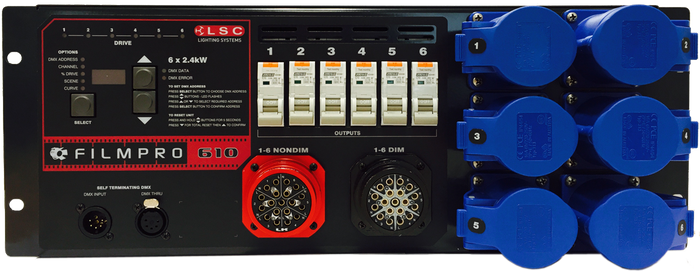

LSC Control FILMPRO
Robust Dimming for Film and Television
The number one dimmer used throughout the film and TV lighting industry in Europe and Australia, showcased in hundreds of films and TV broadcasts worldwide. The FILMPRO has forged an enviable reputation for reliability and ease of control.
Control Features
- DMX via self-terminating, front-panel 5-pin XLR in and thru connectors
- Four dimmer curves selectable per channel
- User-selectable minimum (bottom set) level per channel to allow preheating of lamps
- User-selectable maximum (top set) level per channel to reduce output and increase lamp life
- Indicators for DMX present, power present, output channel mimics, and menu function status
Protection
- Emergency backup scene in case of input signal loss
- Current Control Technology utilized on all circuits to prevent nuisance tripping of circuit breakers due to large inrush currents
- 6 x 10A MCB with inbuilt 30mA RCD (RCBO) per channel
Outputs
- 6 non-dimmed circuits available via a front panel mounted 19-pin red Socapex connector
Power Specifications
- 210-250V AC single-phase with fully rated neutral, 50-60Hz
- Typical operating range: 200-260V AC, 45-65Hz
- Rear panel mounted 63A 3-pin CEE style inlet connector
- Maximum ambient operating range: 0-40°C
Mechanical Specifications
- Dimensions: 480mm (w) x 178mm (h) x 517mm (d)
- Weight: 21kg
- Corrosion-resistant, powder-coated heavy-duty steel chassis and cover
