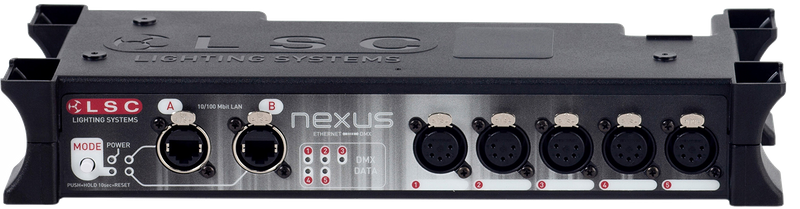

Much more than a standard DMX to Ethernet converter, the NEXUS range of both 1-port and 5-port interfaces is a problem solver for those weird and wonderful configurations required in today’s demanding and complex shows.

Modes

Standard DMX/RDM output from a selected Art-Net, ShowNet, or sACN Universe
HTP merge of three selected Art-Net/ShowNet/sACN Universes
Softpatch merge of three selected Art-Net/ShowNet/sACN Universes
Select three Universes and merge individual slots using HTP, priority, control, or fade
Assign an output to a primary and a secondary Universe with auto-switching from primary to secondary on loss of primary Universe
Resend – any merged port can be resent as a new Art-Net/ShowNet/sACN Universe
DMX input – send a standard DMX port to an Art-Net/ShowNet/sACN Universe
DMX/RDM backup – a special input that is only activated if the selected main Universe is no longer present
Full RDM control of a networked rig via NexLan software or Art-Net RDM
Backup switch for multiple lighting controllers connected to NEXUS
A simple DMX/RDM splitter

Specifications

Dimensions: 321mm (w) x 123mm (d) x 55mm (h)
Weight: 650g
Tough ABS plastic UL94-VO rated housing with rear-screened polycarbonate labels
Safety wire and Velcro strap attachment points

Control Features

Supports Art-Net, ShowNet, and sACN over Ethernet
Supports DMX and RDM on inputs and outputs
LED indicators for DMX, power, network activity, and DMX/RDM data activity
Configuration and monitoring via NexLan software on a remote computer
Optional hook clamp adaptor bracket

Inputs/Outputs

Two Ethernet port using a Neutrik Ethercon connector
Second Ethernet port can be used as a hub or as a redundant feed
Five data input/outputs suitable for DMX512-A/RDM compatible protocols on 5-pin XLR-style connectors
Fully opto/earth isolated input and individually opto/earth isolated outputs
Output circuits are EMI-filtered and current-limited to protect against short circuits
IEC
