CueServer 3 Core; 1024 Channel; DIN Mount

Stock Code:
IT-CS-3110
POA
Quantity Breaks
1+
POA
Make an Enquiry
Please Call
Notify When in Stock

Description

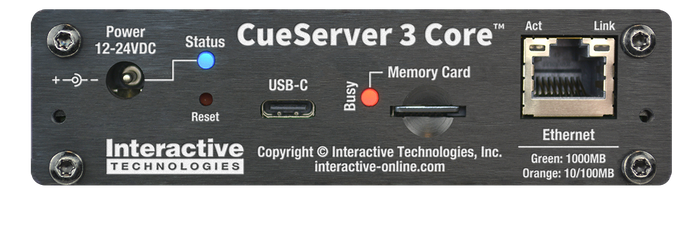

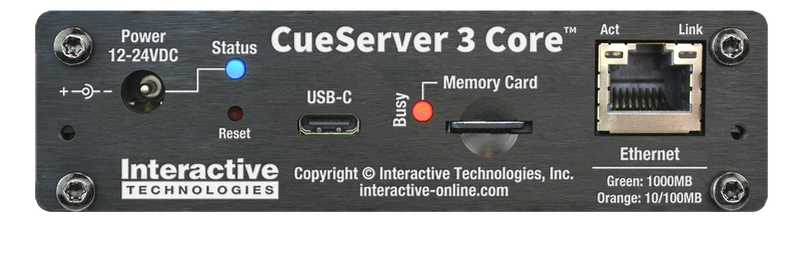

CueServer 3 Core

Compact Power. Professional Lighting Control.

The CueServer 3 Core is the most compact and cost-effective processor in the CueServer 3 range, built for powerful network-based lighting control without unnecessary extras. Designed for flexibility, it fits seamlessly into desktop setups or installed environments with optional mounting solutions.

Whether you're running architectural lighting, show control, or fully networked DMX systems, CueServer 3 Core delivers high-performance control in a rugged, minimalist form factor.

Why Choose CueServer 3 Core?

Built around a high-performance quad-core CPU and custom I/O coprocessor, CueServer 3 Core is engineered to handle demanding lighting projects with ease, supporting up to 16,384 channels and 32 universes of control.

Perfect for projects based entirely on DMX-over-Ethernet, it gives you all the processing power you need, without paying for unused physical I/O.

Key Features

All-in-One Control Engine

  • Self-contained lighting playback and architectural processor
  • Advanced DMX fade engine with built-in effects generator

Powerful Show Control

  • Control up to 32 DMX universes or independent timelines
  • Dynamic patching across 128 sACN, Art-Net, or KiNET universes
  • Seamless handling of cue lists, presets, and streams

Creative Flexibility

  • Create lighting scenes manually or capture from external sources
  • Advanced automation with CueScript scripting language
  • Real-time scheduling with calendar and astronomical triggers

Connected & Interactive

  • Built-in web server for custom UI on touchscreens and mobile devices
  • Full Ethernet-based system integration
  • Compatible with Crestron, AMX, Control4, and more

Designed for Integration

  • Native programming software for macOS and Windows
  • Works with CueStation buttons and Insite touchscreens
  • Compact anodized aluminum enclosure with optional mounting kits

Performance & Capacity

  • Channels: 1,024 (base), expandable up to 16,384
  • Universes: Up to 128 (sACN, Art-Net, KiNET)
  • Playbacks: Up to 32 simultaneous timelines
  • Cues: Up to 1,000,000 per stack
  • Storage: Removable microSD (up to 2TB)

Connectivity

  • Ethernet: Gigabit RJ45 (10/100/1000 Base-T)
  • Protocols: sACN, Art-Net, KiNET, TCP/IP, HTTP, NTP, and more
  • USB: USB-C host port
  • Power: 12–24V DC input (4.5W consumption)

Built for Reliability

  • Rugged anodized aluminum housing
  • Operating temperature: -25°C to 70°C
  • Real-time clock with automatic NTP synchronization
  • Certified to international safety and compliance standards

Installation Options

  • Desktop
  • Panel mount
  • DIN rail
  • Truss mounting (optional brackets)

What’s Included

  • CueServer 3 Core processor (CS-3110)
  • Power supply
  • 1,024 channel license

Expand As You Grow

Easily scale your system with additional universe licenses, supporting up to 32 universes total.

Warranty

Backed by a 2-year limited warranty, with extended coverage options available.

Software

Program your system using CueServer Studio, available for macOS and Windows.

Ideal For

  • Architectural lighting installations
  • Themed environments
  • Entertainment venues
  • Network-based DMX systems
  • Smart building integration
