Tour Wing; 12" Display; RGB Keys; RGB Motorised Faders; U Keys; 12 Universe
Stock Code:
HES-TOURWING
POA
Quantity Breaks
1+
POA
Please Call
Description

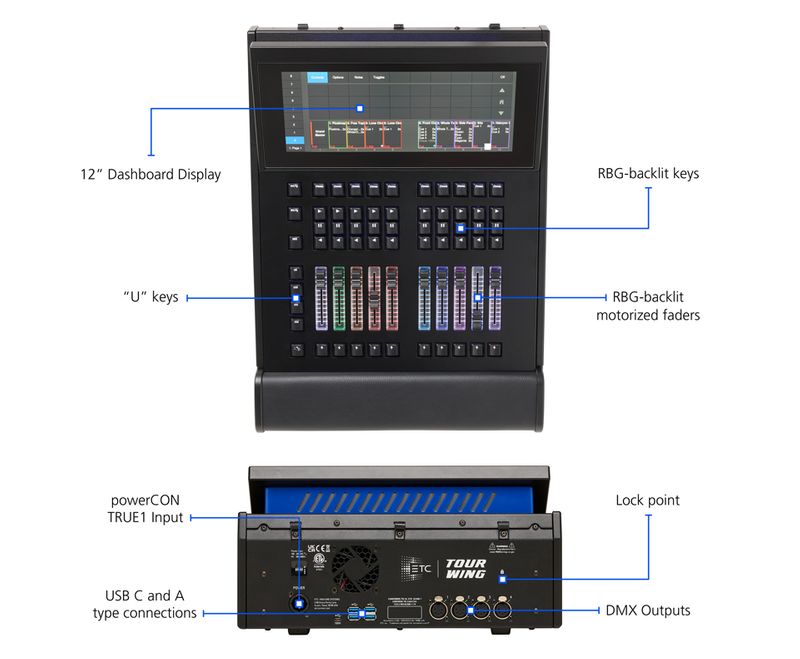

High End Systems Tour Wing
Expand your control. Elevate your workflow.
The High End Systems Tour Wing is the latest addition to the Hog family, delivering professional-grade playback expansion for lighting programmers who demand precision, flexibility, and performance.
Featuring ten motorised, RGB-backlit playback faders, the Tour Wing provides tactile, responsive control for even the most complex productions. Seamlessly integrating with Hog consoles, Hog PC, and HPU systems, it’s the ideal solution for touring, theatre, and live events.
Key Features
- 10 pageable, motorised RGB-backlit playback faders
- Customisable controls: flash, go, halt, back, and choose
- Full Playback Dashboard display for real-time monitoring
- Unlimited fader pages for maximum flexibility
- Virtual masters, scenes, batch controllers, and group masters
- Unlocks 12 universes when connected to Hog PC
Connectivity & Power
- Neutrik powerCON® TRUE1 power input
- 4 × DMX outputs (5-pin XLR)
- 4 × USB-A ports + 1 × USB-C
- USB-C power delivery (up to 100W)
- Mains: 100–250 VAC, 50/60 Hz (max 80W)
Advanced Programming
- Command-line interface with advanced syntax
- Fixture selection tools: +, -, Thru, Next, Back, All
- Full palette system: intensity, position, colour, beam, effects
- Hog Colour System
- Effects engine with pixel mapping
- Cue and parameter-level timing control
- Record, update, merge, move, copy, and delete functions
Playback Control
- Playback dashboard with master ranges
- Main playback stack with transport controls
- Comment and keystroke macros
- Triggering via command keys
- Paging controls for fast navigation
Compatibility
- Hog Tour, Stage, and Flex consoles
- Hog PC systems
- HPU (Hybrid Processing Unit)
- Gig Hog programming wing
- ETCnomad and Response gateways
Built for the Real World
- ETL, cETL, and CE compliant
- Rugged touring design
- Reliable performance in demanding environments
