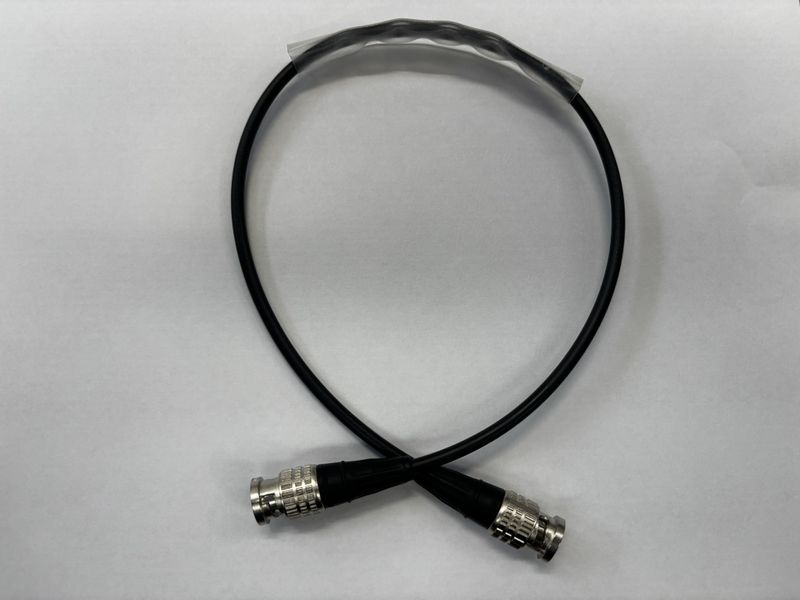

LS Cable; Canare L-2.5CHWS; 2m
Stock Code:
LS-LSCAB-SDI-2.5-2M
POA
Quantity Breaks
1+
POA
In Stock
Description
Canare L-2.5CHWS Coaxial Cable - 2m
The Canare L-2.5CHWS is a high-performance 75 O coaxial cable designed for professional HD video applications where flexibility and reliable signal transmission are important. With a compact 4.2 mm outer diameter, it is particularly well suited to mobile production setups and installations where space is limited.
Its highly foamed insulation and flexible construction allow the cable to withstand regular handling and repeated bending, making it a practical choice for OB trucks, mobile production rigs and outdoor broadcast environments.
All LS Cables are made with love, heatshrink for labelling and an ez-tie for coiling
Key Features
- 75 O characteristic impedance
- Compact 4.2 mm outer diameter
- Stranded centre conductor for improved flexibility
- High-density double-braided shielding
- PVC outer jacket
- 1000 V AC dielectric strength
- Flexible construction for frequent handling and installation
- Suitable for HD video and mobile broadcast applications
- Available in various lengths up to 100 m
Maximum Transmission Distance
| Impedance | Application | Typical Use |
|---|---|---|
| 75 O | HD Video | Low-loss mobile applications |
Specifications
| Specification | Details |
|---|---|
| Nominal Outer Diameter | 4.2 mm |
| Weight | 7.5 kg/100 m |
| Inner Conductor | 7/0.20A, 0.60 mm |
| Insulation Outer Diameter | 2.6 mm |
| Shield Construction | 0.10A/8/16, 94% or more coverage |
| Characteristic Impedance | 75 O |
| Attenuation | 37.4 dB/100 m |
| Available Lengths | Various lengths up to 100 m |
