LS Cable; Canare L-4.5CHWS; 50m
Stock Code:
LS-LSCAB-SDI-4.5-50M
POA
Quantity Breaks
1+
POA
In Stock
Description

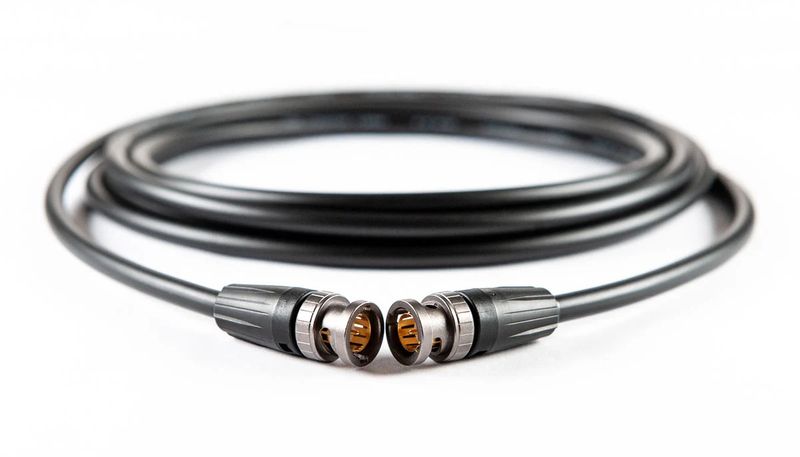

Canare L-4.5CHWS SDI Cable - 50m
The Canare L-4.5CHWS is a flexible 75 O coaxial cable designed for reliable SD, HD and 3G-SDI signal transmission. With a 7.2 mm outer diameter, it offers a practical combination of durability and flexibility, making it suitable for mobile production and other professional video applications.
The cable supports a range of SDI video formats, including SD, HD and 3G-SDI, and is suitable for use in broadcasting, satellite systems and test equipment.
All LS Cables are made with love, heatshrink for labelling and an ez-tie for coiling
Key Features
- 75 O coaxial construction
- 7.2 mm sheath diameter
- Suitable for SD, HD and 3G-SDI applications
- Flexible design for mobile and field use
- Operating temperature: -30°C to +60°C
- Attenuation: 22.8 dB/100 m
- Maximum recommended 3G-SDI transmission distance: 90 m
- Designed for professional SDI applications requiring SMPTE-compliant performance
Maximum Transmission Distance
| Signal | Standard | Maximum Distance |
|---|---|---|
| 3G-SDI | SMPTE 424M | 90 m |
Specifications
| Specification | Details |
|---|---|
| Sheath Diameter | 7.2 mm |
| Cable Weight | 6.6 kg/100 m |
| Central Conductor | 7/0.34 mm |
| Central Conductor Resistance | 3.3 O/100 m |
| Outer Conductor Resistance | 0.8 O/100 m |
| Operating Temperature | -30°C to +60°C |
| Static Capacitance | 53 pF/m |
| Attenuation | 22.8 dB/100 m |
