Interactive Technologies

  • CueServer 2 Mini
    CueServer 2 Mini

    The CueServer 2 Mini (CS-920) is the smallest of the CueServer 2 models and is housed in a rugged anodized aluminium enclosure suitable for desktop use or panel, DIN, or truss mounting using optional bracket kits.

    The CueServer 2 Mini can output shows utilizing up to 16,384 channels and features two built-in modular DMX slots that are user-configurable with any of seven available port modules. These interchangeable modules allow CueServer 2 Mini to be customized for different installation environments eliminating the need for external adapters.

    CueServer 2 Mini also features two user-definable function buttons with RGB indicators, two contact closure inputs, two low-voltage digital outputs, a serial port, and stereo audio output.

    • Completely self-contained lighting playback, architectural processor, and DMX fade engine
    • Seamless handling of Cue Lists, Presets, and Streams
    • Control of up to 32 universes of DMX or 32 independent playback timelines
    • Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
    • Flexible module-based bi-directional DMX ports for custom jack configurations
    • Front-panel configurable function buttons with RGB indicator LEDs
    • Creation of lighting scenes directly or capture from external sources
    • Powerful CueScript scripting language
    • Real-Time clock with astronomical functions and calendar events
    • Built-in web server for hosting custom interactive web pages
    • Multi-show storage and removable Micro SD memory card
    • System integration via Ethernet, Serial, Digital I/O, and Audio
    • Compatible with CueStation buttons and CueTouch touchscreens
    • Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
    • Native programming environment for Mac and Windows
    • Small anodized aluminium enclosure with optional brackets
    Code Image Product Name Attributes Price
    IT-CS-920
    CueServer 2 Mini
    CueServer 2 Mini
    POA
  • CueServer 2 Pro - Rack Mount - AUST Plug
    CueServer 2 Pro - Rack Mount - AUST Plug

    The CueServer 2 Pro (CS-900) is housed in a sturdy 1U rack-mount enclosure with removable brackets.

    CueServer 2 Pro boasts an innovative modular DMX port system. Four bi-directional DMX ports (optional) on the back of the unit are user-configurable with any of seven available port modules. These interchangeable modules allow CueServer 2 Pro to be customized for different installation environments eliminating the need for external adaptors.

    CueServer 2 Pro features dual LAN ports for splitting Ethernet-based lighting and management data onto separate networks if desired.

    The front panel of CueServer 2 Pro has eight customizable function buttons. Each button has fully controllable RGB backlighting and field-replaceable legends for project personalization. A navigation keypad is used to operate the onboard LCD menu for basic system settings, show selection, and macro execution.

    Key Features

    • Completely self-contained lighting playback, architectural processor, and DMX fade engine
    • Seamless handling of Cue Lists, Presets, and Streams
    • Control of up to 32 universes of DMX or 32 independent playback timelines
    • Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
    • Dual Ethernet ports for separate configurable lighting data and management networks
    • Flexible module-based bi-directional DMX ports for custom jack configurations (see Part Numbers below for options)
    • Front-panel configurable function buttons with RGB backlighting and field-replaceable legends
    • Creation of lighting scenes directly or capture from external sources
    • Powerful CueScript scripting language
    • Real-Time clock with astronomical functions and calendar events
    • Built-in web server for hosting custom interactive web pages
    • Multi-show storage and removable Micro SD memory card
    • System integration via Ethernet, Serial, Digital I/O, and Audio
    • Compatible with CueStation buttons and CueTouch touchscreens
    • Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
    • Native programming environment for Mac and Windows
    • 1U rack-mounted enclosure with removable brackets
    Code Image Product Name Attributes Price
    IT-CS-900
    CueServer 2 Pro - Rack Mount - AUST Plug
    CueServer 2 Pro - Rack Mount - AUST Plug
    POA
  • CueStation Universal Hub DIN w/Ethernet
    CueStation Universal Hub DIN w/Ethernet

    The CueStation Universal Network Hub is a multi-purpose interface for controlling button stations that use either 2-Wire or 5-Wire network technologies. The Hub acts as both a power supply for the stations as well as a gateway for allowing host systems to receive button events and instruct the button indicators to illuminate in various ways. The Network Hub is not used with Passive stations. The Network Hub (with optional Ethernet) communicates with the host system by RS-232 and/or Ethernet messages.

    Key Features

    • Communicates with the host system via RS-232 and/or Ethernet (optional)
    • Drives both 2-Wire and 5-Wire CueStation networks, which can be used simultaneously
    • Can drive up to (50) 5-wire stations and (10) 2-wire stations
    • Removable terminal blocks
    • Available in a low-cost version without Ethernet
    • Available in a DIN-Rail version
    Code Image Product Name Attributes Price
    ST-HUBD-EN
    CueStation Universal Hub DIN w/Ethernet
    CueStation Universal Hub DIN w/Ethernet
    POA
  • Din-Rail mounted CueServer2 with terminals , 1024 channels
    Din-Rail mounted CueServer2 with terminals , 1024 channels

    CueServer 2 DIN (CS-950) is housed in an enclosure suitable for DIN rail, surface, or panel mounting. The DIN rail brackets accommodate standard 35mm rail. Mounting flanges are included for surface or panel mounting.

    Connections for power, DMX, contact closures, and digital outputs are made using removable terminal blocks across the top edge of the unit. Ethernet, USB, and stereo audio are connected along the bottom edge.

    CueServer 2 DINs front panel has eight customizable function buttons. Each button has a fully controllable RGB indicator. A navigation joystick is used to operate the onboard LCD menu for basic system settings, show selection, and macro execution.

    Key Features

    • Completely self-contained lighting playback, architectural processor, and DMX fade engine
    • Seamless handling of Cue Lists, Presets, and Streams
    • Control of up to 32 universes of DMX or 32 independent playback timelines
    • Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
    • Four bi-directional DMX ports may be configured as inputs or outputs
    • Front-panel configurable function buttons with RGB indicator LEDs
    • Creation of lighting scenes directly or capture from external sources
    • Powerful CueScript scripting language
    • Real-Time clock with astronomical functions and calendar events
    • Built-in web server for hosting custom interactive web pages
    • Multi-show storage and removable Micro SD memory card
    • System integration via Ethernet, Serial, Digital I/O, and Audio
    • Compatible with CueStation buttons and CueTouch touchscreens
    • Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
    • Native programming environment for Mac and Windows
    • Standard DIN-Rail mounting or surface/panel mounting
    Code Image Product Name Attributes Price
    IT-CS-940
    Din-Rail mounted CueServer2 with terminals , 1024 channels
    Din-Rail mounted CueServer2 with terminals , 1024 channels
    POA
  • DMX Module 5 Pin Female
    DMX Module 5 Pin Female
    Code Image Product Name Attributes Price
    IT-CS-MOD-X5F
    DMX Module 5 Pin Female
    DMX Module 5 Pin Female
    POA
  • DMX Module 5 Pin Male
    DMX Module 5 Pin Male
    Code Image Product Name Attributes Price
    IT-CS-MOD-X5M
    DMX Module 5 Pin Male
    DMX Module 5 Pin Male
    POA
  • Ethercon RJ45 DMX Module
    Ethercon RJ45 DMX Module
    Code Image Product Name Attributes Price
    IT-CS-MOD-RJ45
    Ethercon RJ45 DMX Module
    Ethercon RJ45 DMX Module
    POA
  • Insite 7" Touchscreen, Ethernet, Black
    Insite 7" Touchscreen, Ethernet, Black

    The Insite 7" Touchscreen is an attractive graphical interface that gives you simple, hands-on control over a CueServer hosted lighting system.

    Using CueServer Studio software, you can create rich, graphical pages customized to suit your projects unique needs. Once created, these pages are stored in a CueServer processor and can be viewed through the Insite touchscreen from virtually anywhere across a network.

    Every design detail of Insite is uncompromising. Minimalist, but rugged, it is suited to complement any decor. Its capacitive, multitouch, glass face is surrounded by a solid piece of machined aluminum. A quad-core 1.2GHz processor makes the bright, true-color, ultra-high resolution display extremely responsive. Power is provided via PoE or 12VDC input for installation flexibility, and a standard 3-gang wall box mounting system makes it extremely contractor friendly.

    • Designed to display custom graphical user interfaces created with CueServer Studio software and hosted by a networked CueServer
    • Minimal design suited to complement any decor
    • Ultra high resolution (217ppi) true color display
    • 7.0” diagonal viewable screen size
    • Capacitive multitouch screen handles up to 5 fingers at once
    • Super responsive quad-core 1.2GHz processor
    • Power-over-Ethernet or DC voltage input
    • Contact-closure inputs and digital outputs for external interfaces
    • 12VDC output for external occupancy/motion detectors
    • Powder coated machined solid aluminum
    • Standard 3-gang wall box flush-mounting
    • Available in White or Black trim
    Code Image Product Name Attributes Price
    IT-ST-IET7-CB
    Insite 7" Touchscreen, Ethernet, Black
    Insite 7" Touchscreen, Ethernet, Black
    POA

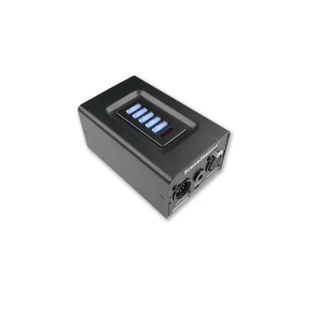

  • Portable SceneStation 3
    Portable SceneStation 3

    SceneStation sets a new standard for full-featured, easy to use, cost-effective DMX lighting control. The Portable SceneStation is entirely self-contained in a ruggedized metal enclosure with 5-pin XLR jacks. Perfect for rental jobs, temporary projects, trade show booths, churches and more, SceneStation can control nearly any DMX device (RGB fixtures, moving lights, dimmers, effects, etc.), while also remaining very simple for the end-user.

    SceneStation is dynamic. Instead of only offering the ability to playback a few simple “presets”, SceneStation can be programmed to run shows with multiple steps, loops, and beautiful built-in effects.

    The secret is the power and flexibility of the built-in effects engine and fully-customizable preset buttons. SceneStation goes way beyond simple “presets” with the ability for each scene to have stunning effects such as Twinkle, Sparkle, various colour animations and more. SceneStation’s buttons can be programmed with advanced features like running chases, stepping sequentially through a list of scenes, toggle, momentary, pile-on functions and more. Additionally, each button includes fully-programmable RGB backlighting and the button caps can be optionally engraved with custom legends.

    Another important feature of SceneStation is how easy it is to program. The powerful SceneStation Studio software (available for Mac or Windows) is a simple, but sophisticated graphical environment for setting up and building content for SceneStation.

    • Completely Self-Contained
    • SceneStation Studio software for Station Management, Programming and Operation
    • Built-in effects engine for creating beautiful, dynamic scenes
    • 64 Scene Capacity
    • Static, Sequential, Toggle, Chase, Momentary and Pile-On Modes for Each Button
    • Programmable RGB Backlit Buttons
    • Optional IR Remote for recalling presets or adjusting overall brightness
    • Multiple Master/Slave Stations via 2.4 GHz Wireless Network
    • DMX-512 Output with 44Hz Update Rate for silky-smooth fades and effects
    • DMX Snapshot Recording Directly from Front-Pane
    • Automatic Power-On Preset Activation
    • Automatic Console Backup
    • 11-28 VDC (5W) or 14-28 VAC (5VA) Operation
    • Optional Button Engraving
    Code Image Product Name Attributes Price
    SS-310
    Portable SceneStation 3
    Portable SceneStation 3
    POA

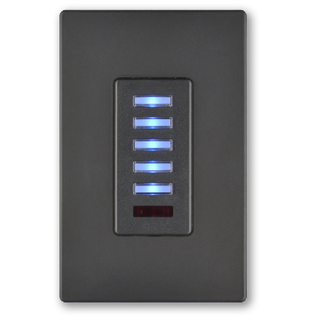

  • SceneStation 3 (Black)
    SceneStation 3 (Black)

    SceneStation sets a new standard for full-featured, easy to use, cost-effective DMX lighting control. SceneStation is entirely self-contained in a single gang wall switch sized unit. Perfect for restaurants, high-end residential, trade show booths, churches and more, SceneStation can control nearly any DMX device (RGB fixtures, moving lights, dimmers, effects, etc.), while also remaining very simple for the end-user.

    SceneStation is dynamic. Instead of only offering the ability to playback a few simple, SceneStation can be programmed to run shows with multiple steps, loops and beautiful built-in effects.

    The secret is the power and flexibility of the built-in effects engine and fully-customizable preset buttons. SceneStation goes way beyond simple; with the ability for each scene to have stunning effects such as Twinkle, Sparkle, various colour animations and more. SceneStation buttons can be programmed with advanced features like running chases, stepping sequentially through a list of scenes, toggle, momentary, pile-on functions and more. Additionally, each button includes fully-programmable RGB backlighting and the button caps can be optionally engraved with custom legends.

    Another important feature of SceneStation is how easy it is to program. The powerful SceneStation Studio software (available for Mac or Windows) is a simple, but sophisticated graphical environment for setting up and building content for SceneStation

    • Completely self-contained preset station with 64 scene capacity
    • Static, Toggle, Sequential, Preset Range, Chase, Momentary, Pile-On, Grandmaster, Blackout & Power Toggle Functions for each button
    • Built-in effects engine for creating dynamic scenes
    • IR remotes for programming and operation
    • SceneStation Studio software for station management, programming and operation
    • Programmable RGB Buttons
    • Multiple Master/Slave Stations via built-in 2.4GHz wireless network
    • DMX-512 output with 44Hz update rate
    • DMX input snapshot and/or manual channel editing
    • Automatic "Power-On" preset activation
    • Automatic DMX console backup function
    • Decora® Wall Station Compatible
    • Optional button engraving
    Code Image Product Name Attributes Price
    IT-SS-305-BLK
    SceneStation 3 (Black)
    SceneStation 3 (Black)
    POA

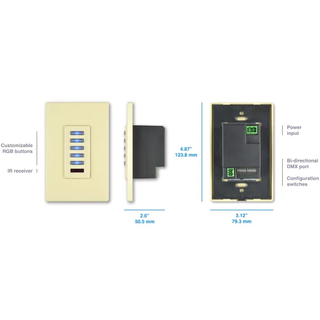

  • SceneStation 3 (White)
    SceneStation 3 (White)

    SceneStation sets a new standard for full-featured, easy to use, cost-effective DMX lighting control. SceneStation is entirely self-contained in a single gang wall switch sized unit. Perfect for restaurants, high-end residential, trade show booths, churches and more, SceneStation can control nearly any DMX device (RGB fixtures, moving lights, dimmers, effects, etc.), while also remaining very simple for the end-user.

    SceneStation is dynamic. Instead of only offering the ability to playback a few simple “presets”, SceneStation can be programmed to run shows with multiple steps, loops and beautiful built-in effects.

    The secret is the power and flexibility of the built-in effects engine and fully-customizable preset buttons. SceneStation goes way beyond simple “presets” with the ability for each scene to have stunning effects such as Twinkle, Sparkle, various colour animations and more. SceneStation’s buttons can be programmed with advanced features like running chases, stepping sequentially through a list of scenes, toggle, momentary, pile-on functions and more. Additionally, each button includes fully-programmable RGB backlighting and the button caps can be optionally engraved with custom legends.

    Another important feature of SceneStation is how easy it is to program. The powerful SceneStation Studio software (available for Mac or Windows) is a simple, but sophisticated graphical environment for setting up and building content for SceneStation

    • Completely self-contained preset station with 64 scene capacity
    • Static, Toggle, Sequential, Preset Range, Chase, Momentary, Pile-On, Grandmaster, Blackout & Power Toggle Functions for each button
    • Built-in effects engine for creating dynamic scenes
    • IR remotes for programming and operation
    • SceneStation Studio software for station management, programming and operation
    • Programmable RGB Buttons
    • Multiple Master/Slave Stations via built-in 2.4GHz wireless network
    • DMX-512 output with 44Hz update rate
    • DMX input snapshot and/or manual channel editing
    • Automatic "Power-On" preset activation
    • Automatic DMX console backup function
    • Decora® Wall Station Compatible
    • Optional button engraving
    Code Image Product Name Attributes Price
    IT-SS-305-WHT
    SceneStation 3 (White)
    SceneStation 3 (White)
    POA
