4 risers, 5 sections.
Leg: 30 x 30mm
Chrome plated steel stand with braked wheels
Dia. 90mm, 80mm, 70mm, 60mm, 50mm
Wind bracing kit

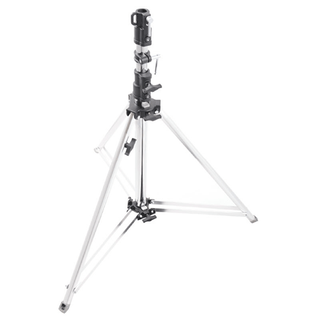

The Kupo Jumbo Stand, made from chrome plated steel, is specifically designed to satisfy the industry’s requirement for extra heavy loads with the ultimate safety in mind. The Kupo Jumbo Stand can support a load capacity up to 70kg and delivers a maximum working height of 6.1m (20') when fully extended. Features Kupo's direct drive gear mechanism and auto-locking instead of pullies and cables.
Features:
3 risers, 4 sections.
Dia.: 45mm, 40mm, 35mm, 30mm
Leg: 25mm x 25mm
Chrome plated steel with KC-100S caster
Spring cushioned

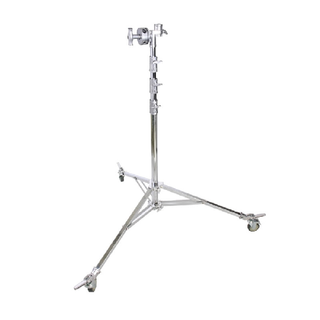

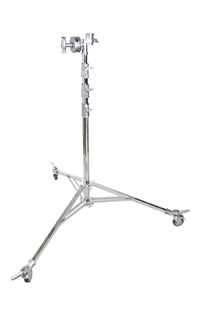

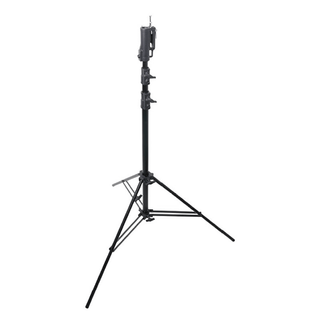

Designed primarily to support overhead frames, also known as butterfly frames this giant is ready to take your support needs skyward. Each riser is spring cushioned as a safety feature to protect lighting fixtures from a sudden drop if the locking collar becomes loose. The solid steel construction has a maximum load capacity of 40kg and is equipped with braked casters to easily reposition heavy loads. Each caster is equipped with a peg that extends past the wheel allowing it to stand upright when collapsed. The High Overhead Stand also features a true combination head with a 4 1/2" grip head, and a junior 1-1/8" (28mm) receiver to accept any kind of mounting challenge.

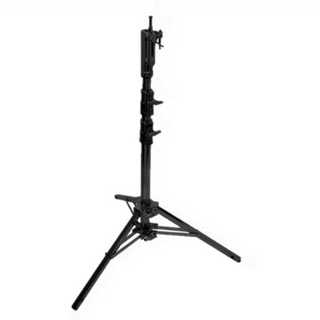

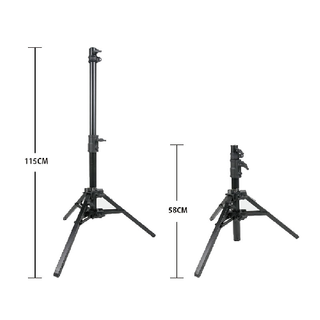

A great choice for support of sliders mounted with cameras of almost any size, the black-finished Kupo 161MB Slider Stand weighs just 5.8 kg but can handle rigs weighing up to 36 kg. The stand rises to a maximum working height of 115 cm, and a minimum height of 58 cm, and folds down to 68 cm in length. A memory collar is included so you can quickly return to a previous height adjustment.
Its wide 55 cm footprint makes for a stable base and is augmented by two adjustable levelling legs fortified with centre braces that maintain balance on uneven terrain. As a convenience, a bubble is located near the centre column. The Slider Stand has a 1-1/8" receiver for gear with a Junior pin, but there are easily accessed adapters that can convert it to a 5/8" stud.

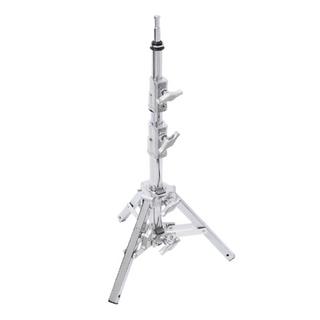

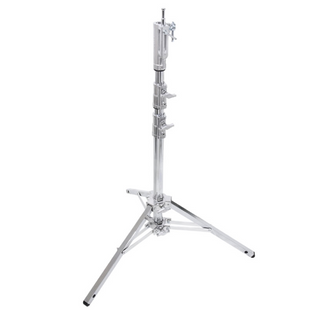

The Kupo 186M Short Low Mighty Stand is ideal for a heavy light head at low level and ranges from a full working height of 101cm, down to a minimum of 64.5cm.
The Short Low Mighty Stand also features the triple function universal combo head with both 1-1/8" (28mm) and 5/8" (16mm) receivers plus a multi-direction 5/8" (16mm) stud to accept any kind of mounting challenge.
Specifications
- 2 risers, 3 sections with diameters of 35mm, 30mm, 25mm
- Legs 22mm x 22mm
- Chrome plated steel
- 1 adjustable levelling leg
- Footprint diameter of 48cm
- Safe working load of 15kg
- Product weight of 4.5kg

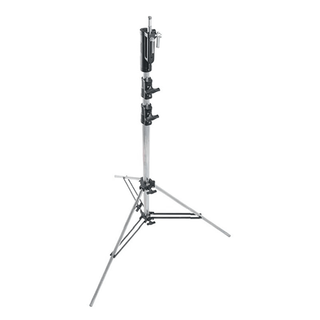

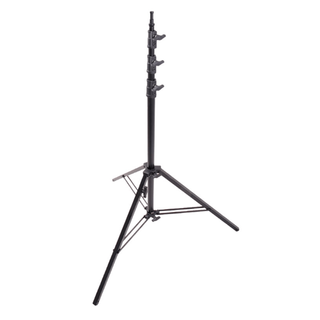

The Kupo Master Combo Alu Senior Stand is designed to hold loads up to 12kg at a maximum working height of 3.15m using a 2-riser, 3-section design. The stand features aluminium construction, a triple-function universal head and a levelling leg for uneven terrain.

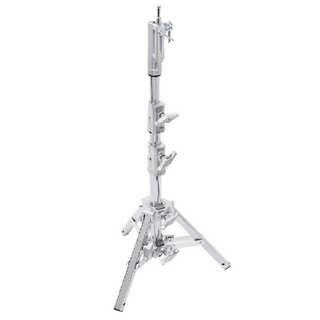

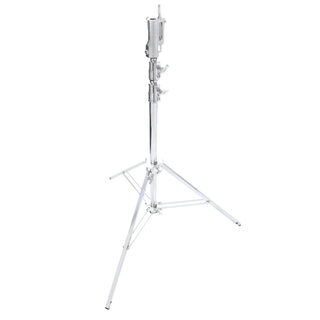

Designed to support heavy gear weighing up to 35kg at its maximum height of 2.05m, the 7.8kg chrome-plated steel Low Mighty Stand from Kupo has a generous footprint diameter of 1.04m for stability, and an extendable levelling leg for uneven terrain. The triple-function universal combo head has mounting options covered. Not only does it have 1-1/8" and 5/8"(16mm) receivers, but it also has a multidirectional 5/8"(16mm) stud. Economical on space requirements, the Low Mighty Stand folds down to 92cm for storage and transport.

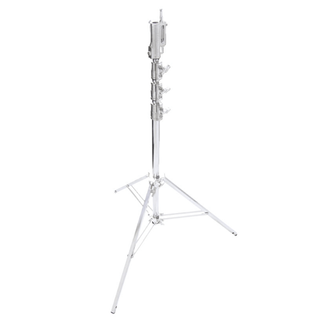

Designed to support heavy gear weighing up to 35kg at its maximum height of 2.04m, the 11kg steel Master Cine Stand from Kupo has a generous footprint diameter of 1.38m for stability, and an extendable levelling leg for uneven surfaces or terrain. The triple-function universal combo head has mounting options covered. Not only does it have 1-1/8" and 5/8" receivers, but it also has a multidirectional 5/8"(16mm) stud. The Master Cine Stand folds down to 1.38m for storage and transport.
When you need to rig an overhead frame, the maximum height for this stand is 20.7' (6.33M).
The stand is constructed from steel and has metal knobs and locking collars and a wide footprint for extra stability. The stand also has a single leg with sliding extension, for leveling on uneven terrain.
It has a collapsible base, 2 leveling legs, and 3 wind bracing eye rings. Each riser is spring cushioned as a safety feature to prevent equipment from a sudden drop. Features a combination head with 4 1/2" (11.4cm) Grip Head with 1/8"(28mm) stud and receiver
