Wash

Wash

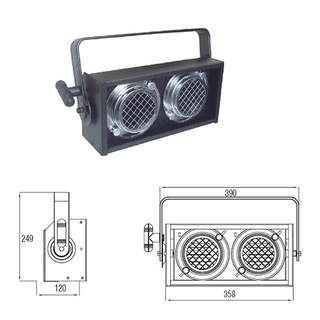

  • Blinder 2 Way Par36 Black Unwired/ Duet
    Blinder 2 Way Par36 Black Unwired/ Duet
    The audience blinders have been designed DWE 120V 650W lamps.
    The units consist of a sturdy, black anodized aluminum case with a strong, adjustable bracket.
    The rear plate with louver for better ventilation and keeping lamp life longer.
    The heavy duty yoke with positive lock off and T bar enables this unit to be set at any angle.
    Each bank can be adjusted
    Code Image Product Name Attributes Price
    KU-BLIND2WAY
    Blinder 2 Way Par36 Black Unwired/ Duet
    Blinder 2 Way Par36 Black Unwired/ Duet

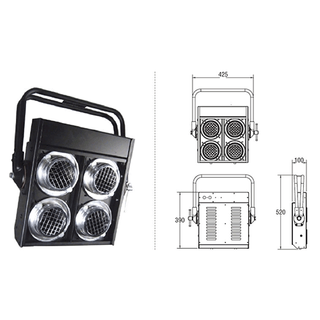

  • Blinder 4 Way Par36 Black unwired
    Blinder 4 Way Par36 Black unwired
    The audience blinders have been designed DWE 120V 650W lamps.
    The units consist of a sturdy, black anodized aluminum case with a strong, adjustable bracket.
    The rear plate with louver for better ventilation and keeping lamp life longer.
    The heavy duty yoke with positive lock off and T bar enables this unit to be set at any angle.
    Each bank can be adjusted
    Code Image Product Name Attributes Price
    KU-BLIND4WAY
    Blinder 4 Way Par36 Black unwired
    Blinder 4 Way Par36 Black unwired
  • Blinder 8 Way Par36 Black unwired
    Blinder 8 Way Par36 Black unwired
    The audience blinders have been designed DWE 120V 650W lamps.
    The units consist of a sturdy, black anodized aluminum case with a strong, adjustable bracket.
    The rear plate with louver for better ventilation and keeping lamp life longer.
    The heavy duty yoke with positive lock off and T bar enables this unit to be set at any angle.
    Each bank can be adjusted
    Code Image Product Name Attributes Price
    KU-BLIND8WAY
    Blinder 8 Way Par36 Black unwired
    Blinder 8 Way Par36 Black unwired

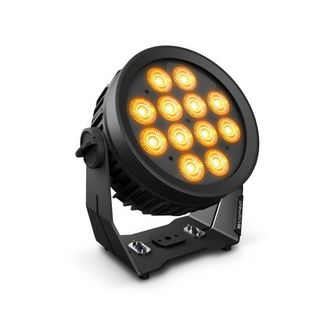

  • Cameo Flat Pro 12
    Cameo Flat Pro 12
    Description

    Set up, connect, finished! The FLAT PRO 12 G2 LED PAR spotlight offers you a professional outdoor allrounder that saves you a lot of work under adverse conditions: whether as a calibrated and compact IP65 uplight fixed to a building facade, as a noiseless light source in theatres or as an effects light for live shows.

    Its patented EZChase DMX delay feature allows you to create running lighting effects without an external controller. This saves on DMX channels as well as time and patience. You can also rely on it to always provide consistent ambient lighting. Regardless of how many FLAT PRO G2s you connect together, the integrated calibration chip ensures that full and pastel RGBWA colour spectrum colours can be used without any deviations.

    The FLAT PRO 12 G2 comprises 12 x 10-watt 5-in-1 RGBWA LEDs for an impressive luminous flux of 4,300 lm. Thanks to its adjustable PWM frequency (650 Hz to 25 kHz), there's no need to worry about flickering LEDs when dimming for theatre, TV studios, film sets or light festivals.

    An outdoor IP65 flat PAR spotlight is only as good as its handling. That's why we've optimised many points of the series' design. The handle is inconspicuously integrated into the compact metal housing, while the OLED display with touch-sensitive keys delivers fast and simple operation. Every seconds counts when working in wind and rain. The redesigned convection cooling and the professional connection options with Neutrik True-compatible inputs and outputs and 3-pin IP65 DMX sockets all offer the highest possible reliability.

    For even greater installation flexibility, the FLAT PRO 12 G2 can also be optionally retrofitted with a fold-out 16-mm TV spigot that uses patented SPIN16 technology.

    The versatile FLAT PRO 12 G2 IP65 LED PAR spotlight is ideal for all lumen beings looking for an uncompromising way to express their passion for lighting in the great outdoors.

    Product type LED PAR Lighting
    Type PAR
    Colour spectrum RGBWA
    Number of LEDs 12
    LED type 10 W
    LED PWM Frequency 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 25000 Hz (adjustable)
    Dispersion 30 Deg
    DMX input XLR 3-pin male
    DMX output XLR 3-pin female
    DMX mode 11-channel, 14-channel, 2-channel, 4-channel 1, 4-channel 2, 6-channel 1, 6-channel 2
    DMX Functions colour fade, Colour presets, Colour temperature correction, Dimmer, Dimmer Fine, DMX Delay, RGBWA, Speed Selection, Strobe, System settings
    Control DMX512, RDM
    Standalone modes Auto programs, CCT, Colour presets, Loop, Static, User Colours
    Controls Down, Enter, Mode, Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 110 W
    Power connector Neutrik True One
    Max. output current 11 A
    Housing material Metal
    Cabinet colour Black
    Protection class IP IP65
    Cooling Convection
    Luminous flux 4300 lm
    Calibration modes calibrated, RAW, User
    Fuse F3A / 250 V
    Operating Temperature -15 - 40 C
    Relative Humidity 80 %, not condensing
    Width 292 mm
    Height 300 mm
    Length 156 mm
    Weight 6 kg
    Accessories (included) Power cord
    Code Image Product Name Attributes Price
    CAM-FP-12
    Cameo Flat Pro 12
    Cameo Flat Pro 12
    POA

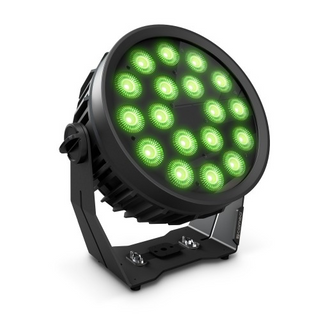

  • Cameo Flat Pro 18
    Cameo Flat Pro 18
    Description

    Set up, connect, finished! The FLAT PRO 18 G2 LED PAR spotlight offers you a professional outdoor allrounder that saves you a lot of work under adverse conditions: whether as a calibrated and compact IP65 uplight fixed to a building facade, as a noiseless light source in theatres or as an effects light for live shows.

    Its patented EZChase DMX delay feature allows you to create running lighting effects without an external controller. This saves on DMX channels as well as time and patience. You can also rely on it to always provide consistent ambient lighting. Regardless of how many FLAT PRO G2s you connect together, the integrated calibration chip ensures that full and pastel RGBWA colour spectrum colours can be used without any deviations.

    The FLAT PRO 18 G2 comprises 18 x 10-watt 5-in-1 RGBWA LEDs for an impressive luminous flux of 6600 lm. Thanks to its adjustable PWM frequency (650 Hz to 25 kHz), there's no need to worry about flickering LEDs when dimming for theatre, TV studios, film sets or light festivals.

    An outdoor IP65 flat PAR spotlight is only as good as its handling. That's why we've optimised many points of the series' design. The handle is inconspicuously integrated into the compact metal housing, while the OLED display with touch-sensitive keys delivers fast and simple operation. Every seconds counts when working in wind and rain. The redesigned convection cooling and the professional connection options with Neutrik True-compatible inputs and outputs and 3-pin IP65 DMX sockets all offer the highest possible reliability.

    For even greater installation flexibility, the FLAT PRO 18 G2 can also be optionally retrofitted with a fold-out 16-mm TV spigot that uses patented SPIN16 technology.

    The versatile FLAT PRO 18 G2 IP65 LED PAR spotlight is ideal for all lumen beings looking for an uncompromising way to express their passion for lighting in the great outdoors.

    Product type LED PAR Lighting
    Type PAR
    Colour spectrum RGBWA
    Number of LEDs 18
    LED type 10 W
    LED PWM Frequency 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 25000 Hz (adjustable)
    Dispersion 30 Deg
    DMX input XLR 3-pin male
    DMX output XLR 3-pin female
    DMX mode 11-channel, 14-channel, 2-channel, 4-channel 1, 4-channel 2, 6-channel 1, 6-channel 2
    DMX Functions colour fade, Colour presets, Colour temperature correction, Dimmer, Dimmer Fine, DMX Delay, RGBWA, Speed Selection, Strobe, System settings
    Control DMX512, RDM
    Standalone modes Auto programs, CCT, Colour presets, Loop, Static, User Colours
    Controls Down, Enter, Mode, Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 170 W
    Power connector Neutrik True One
    Max. output current 11 A
    Housing material Metal
    Cabinet colour Black
    Protection class IP IP65
    Cooling Convection
    Luminous flux 6600 lm
    Calibration modes calibrated, RAW, User
    Fuse F3A / 250 V
    Operating Temperature -15 - 40 C
    Relative Humidity 80 %, not condensing
    Width 339 mm
    Height 353 mm
    Length 170 mm
    Weight 7.5 kg
    Accessories (included) Power cord
    Code Image Product Name Attributes Price
    CAM-FP-18
    Cameo Flat Pro 18
    Cameo Flat Pro 18
    POA

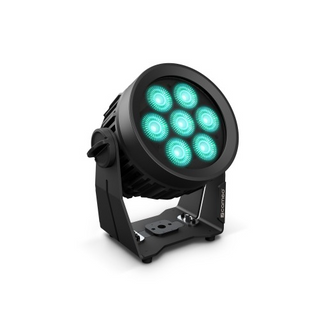

  • Cameo Flat Pro 7
    Cameo Flat Pro 7
    Description

    Set up, connect, finished! The FLAT PRO 7 G2 LED PAR spotlight offers you a professional outdoor allrounder that saves you a lot of work under adverse conditions: whether as a calibrated and compact IP65 uplight fixed to a building facade, as a noiseless light source in theatres or as an effects light for live shows.

    Its patented EZChase DMX delay feature allows you to create running lighting effects without an external controller. This saves on DMX channels as well as time and patience. You can also rely on it to always provide consistent ambient lighting. Regardless of how many FLAT PRO G2s you connect together, the integrated calibration chip ensures that full and pastel RGBWA colour spectrum colours can be used without any deviations.

    The FLAT PRO 7 G2 comprises 7 x 10-watt 5-in-1 RGBWA LEDs for an impressive luminous flux of 2400 lm. Thanks to its adjustable PWM frequency (650 Hz to 25 kHz), there's no need to worry about flickering LEDs when dimming for theatre, TV studios, film sets or light festivals.

    An outdoor IP65 flat PAR spotlight is only as good as its handling. That's why we've optimised many points of the series' design. The handle is inconspicuously integrated into the compact metal housing, while the OLED display with touch-sensitive keys delivers fast and simple operation. Every seconds counts when working in wind and rain. The redesigned convection cooling and the professional connection options with Neutrik True-compatible inputs and outputs and 3-pin IP65 DMX sockets all offer the highest possible reliability.

    For even greater installation flexibility, the FLAT PRO 7 G2 can also be optionally retrofitted with a fold-out 16-mm TV spigot that uses patented SPIN16 technology.

    The versatile FLAT PRO 7 G2 IP65 LED PAR spotlight is ideal for all lumen beings looking for an uncompromising way to express their passion for lighting in the great outdoors.

    Product type LED PAR Lighting
    Type PAR
    Colour spectrum RGBWA
    Number of LEDs 7
    LED type 10 W
    LED PWM Frequency 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 25000 Hz (adjustable)
    Dispersion 30 Deg
    DMX input XLR 3-pin male
    DMX output XLR 3-pin female
    DMX mode 11-channel, 14-channel, 2-channel, 4-channel 1, 4-channel 2, 6-channel 1, 6-channel 2
    DMX Functions colour fade, Colour presets, Colour temperature correction, Dimmer, Dimmer Fine, DMX Delay, RGBWA, Speed Selection, Strobe, System settings
    Control DMX512, RDM
    Standalone modes Auto programs, CCT, Colour presets, Loop, Static, User Colours
    Controls Down, Enter, Mode, Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 60 W
    Power connector Neutrik True One
    Max. output current 11 A
    Housing material Metal
    Cabinet colour Black
    Protection class IP IP65
    Cooling Convection
    Luminous flux 2400 lm
    Calibration modes calibrated, RAW, User
    Fuse F3A / 250 V
    Operating Temperature -15 - 40 C
    Relative Humidity 80 %, not condensing
    Width 241 mm
    Height 253 mm
    Length 142 mm
    Weight 4 kg
    Accessories (included) Power cord
    Code Image Product Name Attributes Price
    CAM-FP-7
    Cameo Flat Pro 7
    Cameo Flat Pro 7
    POA

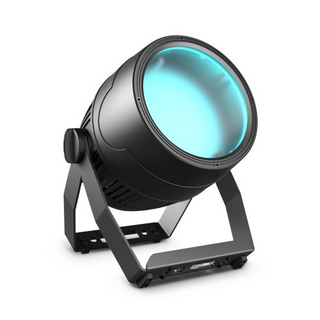

  • Cameo Zenit Z120
    Cameo Zenit Z120
    Description

    Following the hugely successful ZENIT Z 120, Cameo now introduces the ZENIT Z 120 G2 featuring an OLED display and patent pending mounting bracket which integrates a super clamp stud. The RDM enabled high output PAR can for demanding professional applications employs a single long-life 120 watt RGBW COB LED and 16-bit technology for vivid high-resolution colour mixes with maximum uniformity and perfect dimming behavior. Covering a range from 7 to 55 Deg, the motorized zoom provides flexible illumination from tightly focused, narrow beams to wide, diffuse washes.

    With a 3.600 Hz refresh rate for flicker-free operation and IP65 rating, the ZENIT Z 120 G2 is eminently suitable for TV, film and outdoor applications. The PAR can's advanced features include colour temperature correction, variable white balance and 4 selectable dimming curves with adjustable responses to mimic the ramp-down of halogen bulbs.

    Sporting 7 modes of DMX control, the ZENIT Z 120 G2 is also capable of master, slave and standalone operation. A bright OLED display with 4 touch buttons facilitates menu navigation and configuration while a security lock prevents unauthorized access. The heavy-duty diecast aluminium housing utilizes highly efficient convection cooling for completely silent operation. 5-pin DMX connectors e powerCON TRUE1 enable daisy chaining. The Cameo ZENIT Z 120 G2 runs on all voltages from 100 - 240 V AC.

    Product type LED PAR Lighting
    Type Outdoor
    Colour spectrum RGBW
    Number of LEDs 1
    LED type 120W (approx. 50000 operating hours)
    Refresh rate 3600 Hz
    Dispersion 7 - 55 Deg
    DMX input 5-pin IP65
    DMX output 5-pin IP65
    DMX mode 10-channel, 11-channel, 17-channel, 3-channel, 4-channel, 5-channel, 9-channel
    DMX Functions colour fade, colour jump, colour macro, Colour temperature correction, Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, reset, RGBW, RGBW Fine, Strobe, Zoom, Zoom Fine
    Standalone modes colour fade, colour jump, colour macro, Dimmer Curve, Dimmer Response, Display Lock, Master / Slave mode, static colour, Strobe, White Balance adjustable
    Controls Down, Enter, Mode, Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 180 W
    Power connector TRUE1 compatible Power I/O sockets
    Housing material Die-cast aluminium
    Cabinet colour Black
    Protection class IP 65
    Cooling Convection
    Illuminance (55 Deg) 3900 lx @ 1 m, (7 Deg) 62000 lx @ 1 m
    Luminous flux 2117 lm
    Code Image Product Name Attributes Price
    CAM-ZENIT-Z120
    Cameo Zenit Z120
    Cameo Zenit Z120
    POA
  • Cameo Zenit Z180
    Cameo Zenit Z180
    Description

    Versatile, rapid installation and simple, practical configuration the ZENIT Z 180 G2 is the new shining star. Thanks to our innovative, patented SPIN16 technology, it is mounted in an instant using the mounting brackets 16-mm TV spigot and a super clamp. The powerful RDM-enabled PAR spotlight for demanding professional applications now has a bright OLED display menu. The long-lasting 180 W RGBW COB LED and 16-bit technology create consistent, high-resolution colour blends and perfect dimming response. With a range of 10 to 40 Deg, the motor zoom provides flexible illumination ranging from sharp, narrow beams to widely spread expanses.

    With its flicker-free operation via 6 selectable PWM frequencies and its IP65 classification, the ZENIT Z 180 G2 is perfectly suited for use with film cameras or outdoors. The PAR spot also features colour temperature correction, a variable white balance and 4 selectable dimmer curves, whose response can be adjusted to simulate halogen lamps.

    The ZENIT Z 180 G2 can be controlled via 7 DMX modes or used as a master, slave or standalone unit. The bright OLED display with 4 illuminated touch-sensitive controls makes menu navigation and configuration child’s play, while an access lock prevents unauthorised setting changes. For almost silent operation, the extremely robust die-cast aluminium housing is equipped with a temperature-controlled fan. 5-pin DMX sockets and powerCON TRUE1-compatible power input and output facilitate easy parallel connection. The Cameo ZENIT Z 180 G2 runs on all voltages between 100 and 240 volts.

    Product type LED PAR Lighting
    Type Outdoor
    Colour spectrum RGBW
    Number of LEDs 1
    LED type 180 W COB
    LED PWM Frequency 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable
    Dispersion 10 - 40 Deg
    DMX input IP65, XLR 5-pin male
    DMX output IP65, XLR 5-pin female
    DMX mode 10-channel, 11-channel, 17-channel, 3-channel, 4-channel, 5-channel, 9-channel
    DMX Functions Colour Blending, colour change, colour macro, Colour temperature correction, Dimmer, Dimmer Fine, Dimmer response, RGBW, RGBW Fine, Stroboscope, Various system settings, Zoom, Zoom Fine
    Standalone modes Auto programs, colour macro, Master/Slave Mode, Static Mode, Strobe, Tunable White, User Colours
    System settings Colour calibration, Dimmer Curves, Dimmer response, Display Lock, DMX Fail, Factory reset, Fan controller, LED PWM Frequency, Lighted Display, Rotate display by 180Deg, Zoom Reset
    Control DMX 512, RDM enabled
    Controls Down, Enter, Mode, Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 220 W
    Power connector IP65, Power Twist
    Ambient temperature (operating) -15 - 45 Deg
    Housing material Metal
    Cabinet colour Black
    Protection class IP IP65
    Cooling temperature-controlled fan
    Illuminance 56,790 lx @ 1 m (narrow)
    Luminous flux 4900 lm
    Other features 1 x omega mounting, Flap, IP65 Power Twist connector, Power cord, TV spigots 16 mm
    Width 240 mm
    Height 240 mm
    Length 254 mm
    Weight 8.2 kg
    Code Image Product Name Attributes Price
    CAM-ZENIT-Z180
    Cameo Zenit Z180
    Cameo Zenit Z180
    POA

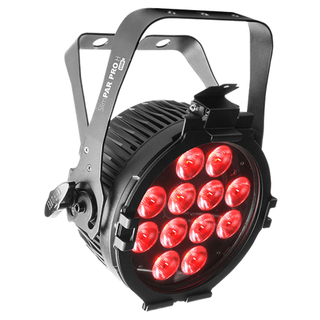

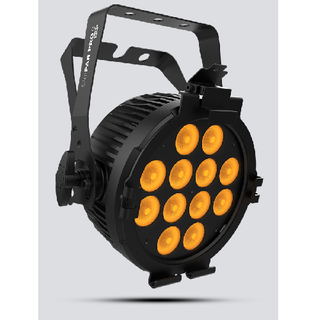

  • Chauvet Slim PAR Pro H, RGBAW-UV, XLR5, PowerCon
    Chauvet Slim PAR Pro H, RGBAW-UV, XLR5, PowerCon

    Chauvet SlimPAR Pro H is a hex-colour (RGBAW+UV) designed for any application that calls for a high-power, low-profile LED wash light with precise colours. SlimPAR Pro H has no moving parts and is flicker-free so it is ideal for quiet and on-camera applications.

    Generate a broad spectrum of colours and achieve natural-looking colour temperatures with 6-in-1 LED technology.

    • XLR 3 & 5 Pin
    • 12x 10w RGBAW + UV LEDs
    • 3,218 Lux @ 2m, 483 Lux @ 5m
    • PWM Frequency 1.2 kHz
    • Strobe Rate 0 to 31 Hz
    • Beam Angle 24 Degrees
    • Field Angle 41 Degrees
    • PowerCON In & Out Connectors
    • Link up to 10 Units
    Code Image Product Name Attributes Price
    CH-SPPH-USB
    Chauvet Slim PAR Pro H, RGBAW-UV, XLR5, PowerCon
    Chauvet Slim PAR Pro H, RGBAW-UV, XLR5, PowerCon
    POA

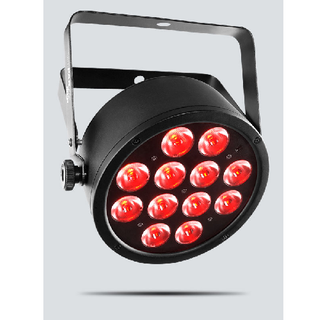

  • Chauvet Slim PAR Q USB
    Chauvet Slim PAR Q USB

    SlimPAR Pro Q USB is a high-powered quad-colour (RGBA), low-profile wash light with D-Fi USB compatibility for wireless control. Dynamic and natural-looking amber LEDs provide expanded colour mixing capabilities. Added light spill control is possible because the fixture is compatible with most 7.5” barn doors. Easily control static colours and automated programs with the optional IRC-6 remote and increase standalone versatility with multiple user-configurable settings. Fits best in the CHS-30 VIP Gear Bag.

    Highlights

    • LED Par designed for any application in need of a high-power quad-colour (RGBA), low-profile wash light
    • D-Fi USB compatibility for wireless Master/Slave or DMX control
    • powerCON®-compatible power input/output connections for power linking
    • Compatible with most 7.5” Barndoors for added light control
    • Generate a broad spectrum of colours and achieve natural-looking colour temperatures with punchy amber LED
    • Flicker-free operation suitable for on-camera use
    • Easily control static colours and automated programs with the optional IRC-6 remote
    • Ideal for quiet applications due to silent operation and no moving parts
    • Increase standalone versatility with multiple user-configurable settings
    • Save time running cables and extension cords by power linking multiple units
    • Fits best in the CHS-30 VIP Gear Bag

    • Compact design easily fits inside sticks of TRUSST

    Specifications

    • DMX Channels: 4, 5 or 10
    • DMX Connectors: 3-pin XLR
    • Light Source: 12 (quad-color RGBA) 6 W (2 A), 50,000 hours life expectancy
    • Strobe Rate: 0 to 31 Hz
    • Beam Angle: 16°
    • Field Angle: 31°
    • Illuminance: 5,690 lux @ 2 m, 1,015 lux @ 5 m
    • Power Linking: 7 units @ 120 V; 13 units @ 230 V
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 82 W, 1 A @ 120 V, 60 Hz
      78 W, 0.6 A @ 230 V, 50 Hz
    • Weight: 7.2 lb (3.3 kg)
    • Size: 10 x 3.9 x 11.4 in (253 x 98 x 290 mm)
    • Approvals: CE, MET
    • Optional Controllers: IRC-6, D-Fi USB
    Code Image Product Name Attributes Price
    CH-SLIMPARQ12USB
    Chauvet Slim PAR Q USB
    Chauvet Slim PAR Q USB
    POA

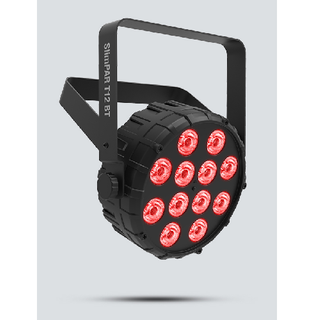

  • Chauvet Slim PAR T12 Bluetooth
    Chauvet Slim PAR T12 Bluetooth

    SlimPAR T12BT makes remote light control easy with its onboard Bluetooth wireless technology. Download the BTAir app (patent pending) for free from your favourite app store and enjoy the ultra-convenient ease of controlling SlimPAR T12BT right from your smartphone or tablet. SlimPAR T12BT has 12 tri-colour (RGB) LEDs and its compact design easily fits inside sticks of truss making it perfect for truss warming. An optional IRC-6 remote can also be used for control as well as DMX, automated and sound-activated programs. Compatible with BTAir.

    Highlights

    • Compact wash light with built-in Bluetooth® wireless technology
    • Control directly from a smartphone or tablet without any additional hardware
    • Easily set static colours or automated programs with the optional IRC-6 remote
    • Access built-in automated programs via IRC-6 remote, Master/Slave or DMX
    • Save time running cables and extension cords by power linking multiple units
    • Fits best in the CHS-30 VIP Gear Bag
    • Compact design easily fits inside sticks of TRUSST
    • Patent Pending

    Specifications

    • DMX Channels: 3 or 7
    • DMX Connectors: 3-pin XLR
    • Light Source: 12 LEDs (tri-color RGB) 2.5 W, (1 A), 50,000 hours life expectancy.
    • Strobe Rate: 0 to 25 Hz
    • PWM Frequency: 7.8 kHz
    • Beam Angle: 21°
    • Field Angle: 38°
    • Operating Frequency: 2.4 GHz
    • Illuminance: 2,850 lux @ 2 m
    • Power Linking: 13 units @ 120 V; 24 units @ 230 V
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 43 W, .6 A @ 120 V, 60 Hz
      42 W, .3 A @ 230 V, 50 Hz
    • Weight: 2.6 lb (1.2 kg)
    • Size: 10.3 x 8.4 x 3 in (264 x 214 x 76.9 mm)
    • Approvals: CE, FCC
    • Bracket Mounting Hole: 12.5 mm
    • Optional Controllers: IRC-6
    • Bluetooth Version: 4.2
    • Max Unobstructed Distance: 150 ft (25.7 m)
    Code Image Product Name Attributes Price
    CH-SLIMPT12BT
    Chauvet Slim PAR T12 Bluetooth
    Chauvet Slim PAR T12 Bluetooth
    POA
  • Chauvet Slim PAR T12 USB
    Chauvet Slim PAR T12 USB
    Specifications DMX Channels: 3 or 8 DMX Connectors: 3-pin XLR Light Source: 12 LEDs (tri-color RGB) 3 W (1 A), 50,000 hours life expectancy Strobe Rate: 0 to 20 Hz PWM Frequency: 1,200 Hz Beam Angle: 15° Field Angle: 29° Illuminance: 3,801 lux @ 2 m Power Linking: 14 units @ 120 V; 25 units @ 230 V Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 39 W, 0.6 A @ 120 V, 60 Hz 39 W, 0.3 A @ 230 V, 50 Hz Weight: 4 lb (1.8 kg) Size: 8.9 x 3.3 x 9.9 in (227 x 84 x 252 mm)
    Code Image Product Name Attributes Price
    CH-SLIMPT12USB
    Chauvet Slim PAR T12 USB
    Chauvet Slim PAR T12 USB
    POA

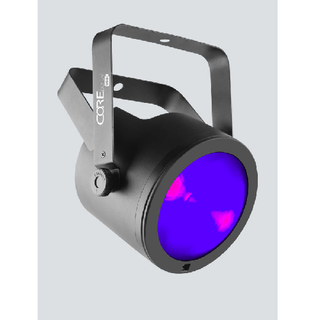

  • Chauvet Slim PAR UV USB
    Chauvet Slim PAR UV USB

    A Compact UV wash with COB (Chip-on-Board) LED technology, COREpar UV USB offers D-Fi USB compatibility for wireless master/slave or DMX control. It includes a separate magnetic lens to provide the ?exibility to go from an ultra-wide wash to a narrow beam in seconds. High frequency LED dimming achieves smooth LED fades and ensures a ?icker-free performance in video applications. Multiple control options include DMX, master/slave and sound activation modes as well as wireless control thanks to D-Fi USB compatibility. Point-and-shoot operation of static colors and automated programs is also possible with the optional IRC-6 remote control (sold separately). The unit’s robust sit-?at housing features power and DMX outlets on the side.

    Highlights

    • Compact ultra-wide UV wash with COB (Chip-on-Board) technology
    • D-Fi USB compatibility for wireless Master/Slave or DMX control
    • Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to a narrow beam in seconds
    • Withstand the harshness of travelling from gig to gig with a robust housing
    • Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
    • Achieve flicker-free video operation with high-frequency LED dimming
    • Save time running cables and extension cords by power linking multiple units
    • Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote
    • Multiple control options include DMX, Master/Slave, Sound-Active and Auto Program modes, IRC-6 or D-Fi USB
    • Fits best in the CHS-30 VIP Gear Bag

    Specifications

    • DMX Channels: 1 or 5
    • DMX Connectors: 3-pin XLR
    • Light Source: 1 COB LED (UV) 70 W, (1.5 A), 50,000 hours life expectancy
    • Strobe Rate: 0 to 33 Hz
    • PWM Frequency: 2,000 Hz
    • Coverage Angle: 100° without Fresnel lens, 50° with Fresnel lens
    • Power Linking: 8 units @ 120 V; 15 units @ 230 V
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 67 W, 0.975 A @ 120 V, 60 Hz
      65 W, 0.517 A @ 230 V, 50 Hz
    • Weight: 2.1 kg
    • Size: 139 x 200 x 253 mm
    Code Image Product Name Attributes Price
    CH-COREPARUVUSB
    Chauvet Slim PAR UV USB
    Chauvet Slim PAR UV USB
    POA

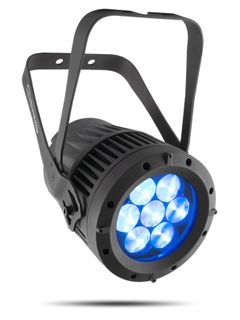

  • COLORado 1 Quad Zoom; IP; 7x 15w RGBW LED
    COLORado 1 Quad Zoom; IP; 7x 15w RGBW LED
    Code Image Product Name Attributes Price
    CH-COLORADO1-QUAD
    COLORado 1 Quad Zoom; IP; 7x 15w RGBW LED
    COLORado 1 Quad Zoom; IP; 7x 15w RGBW LED
    POA
  • COLORado1 Solo
    COLORado1 Solo

    COLORado 1 Solo builds on the pedigree of our Colorado line of fixtures with advanced optics and superb performance in any environment, from indoor stages to outdoor festivals. This powerful IP65 outdoor-rated RGBW LED wash projects an even, fully homogenized beam through fast and smooth zoom and precision optics. It utilizes IP rated power and data connectors as well as full convection cooling for a silent and reliable operation, indoors and outdoors

    At a Glance

    • Zooming RGBW LED wash for touring, rental and production indoors or out
    • Completely homogenized wash with superior colour mixing and zoom
    • 4 to 55 deg smooth and fast zoom
    • All environment operations with IP rated power and DMX connections
    • Colour temperature presets, from 3,200 K to 10,000 K
    • Selectable, smooth dimming curves for programming versatility
    • OLED display with password protection

    Specifications

    Optical

    • Light Source: 1 LEDs (quad-color RGBW) 60 W, (4 A), 50,000 hours life expectancy
    • Beam Angle: 4 to 40deg
    • Field Angle: 8 to 55deg
    • Zoom Range: 4 to 55deg
    • Illuminance (4deg): 5,370 lux @ 5 m
    • Illuminance (40deg): 97 lux @ 5 m
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 2,400 Hz, 6,000 Hz, 18,000 Hz, 25,000 Hz

    Dynamic Effects

    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Motorized
    • Strobe Rate: 0 to 25 Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 5
    • Built-in Automated Programs: Yes
    • Customisable Programs: Yes
    • Recall Custom Programs: Yes

    Construction / Physical

    • Dimensions: 346 x 176 x 242 mm
    • Weight: 5.4 kg
    • Exterior Color: Black
    • Housing Material: Aluminum die-cast
    • Accessory Holder/Gel Frame Size: 159 mm

    Connections

    • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Power Output: Seetronic Powerkon IP65
    • Data Connectors: 5-pin XLR IP65
    • Cable Length (power): 5 ft (1.5 m)

    Control

    • Protocol(s): DMX, RDM
    • DMX Channels: 9, 12 or 17
    Code Image Product Name Attributes Price
    CH-COLORADO1SOLO
    COLORado1 Solo
    COLORado1 Solo
    POA
  • Colorado2 Solo
    Colorado2 Solo

    COLORado 2 Solo is fitted with three 40 W RGBW LEDs to project a beautiful and fully homogenized beam through fast and smooth zoom and precision optics.

    This indoor/outdoor wash light has IP rated power and data connectors, and full convection cooling to ensure a reliable and silent performance in a wide range of applications, from theatrical stages to outdoor festival productions.

    AT A GLANCE

    • Zooming RGBW LED wash for touring, rental, and production, indoors or out

    • Completely homogenized wash with superior color mixing and zoom

    • 5 Deg to 42 Deg smooth and fast zoom

    • All environment operation with IP rated power and DMX connections

    • Color temperature presets, from 3200 K to 10000 K

    • Selectable, smooth dimming curves for programming versatility

    • OLED display with password protection

    Code Image Product Name Attributes Price
    CH-COLORADO2SOLO
    Colorado2 Solo
    Colorado2 Solo
    POA
  • COLORband H9 USB
    COLORband H9 USB

    COLORband H9 USB is a full-size hex-color LED strip light that functions as chase effect, blinder or wall washer. It is D-Fi USB compatible for wireless Master/Slave or DMX control.

    Its 6-in-1 LED technology generates a broad spectrum of colors and natural-looking color temperatures. Three zones of control create amazing chase effects and you can access multiple prebuilt programs with or without DMX.

    Sound activated and automated programs can be accessed with the optional IRC-6 remote. COLORband H9 USB is ideal for quiet applications due to its silent operation and no moving parts. Easily transports in the optional CHS-60 VIP Gear Bag

    Highlights

    • Full-size hex-color LED strip light functions as chase effect, blinder or wall washer

    • D-Fi USB compatibility for wireless Master/Slave or DMX control

    • Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology

    • 3 zones of control create amazing chase effects

    • Convenient access to multiple pre-built programs with or without DMX

    • Includes multiple DMX personalities for a wide variety of programming styles

    • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote

    • Ideal for quiet applications due to silent operation and no moving parts

    • Sound-activated programs dance to the beat of the music

    • Easily transports in the optional CHS-60 VIP Gear Bag

    Specifications

    • DMX Channels: 6, 9, 11, 18 or 23
    • DMX Connectors: 3-pin XLR
    • Light Source: 9 LEDs (hex-color RGBAW+UV) 10 W (2.3 A), 50,000 hours life expectancy
    • Strobe Rate:;0 to 26 Hz
    • PWM Frequency: 1.2 kHz
    • Beam Angle: 29 deg;
    • Field Angle: 48 deg;
    • Illuminance: 2,254 lux @ 2 m
    • Lumens: 2,485
    • Power Linking: 7 units @ 120 V; 13 units @ 230 V
      74 W, 0.6 A @ 230 V, 50 Hz
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 77 W, 1 A @ 120 V, 60 Hz
    • Weight: 3.2 kg
    • Size: 1000 x 56 x 168 mm
    • Approvals: CE
    Code Image Product Name Attributes Price
    CH-CB-H9USB
    COLORband H9 USB
    COLORband H9 USB
    POA

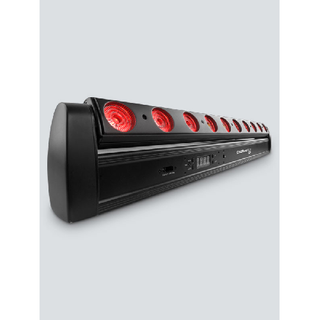

  • COLORband Pix-M USB
    COLORband Pix-M USB

    COLORband PiX-M USB, a moving LED strip light, is a versatile wall-wash light that can create dynamic sweeping, chase, animation and blinder effects thanks to its rotating base, pixel-mapping capabilities, and the ability to control each of its 10 LEDs separately. Its motors allow you to angle the light where it’s needed. COLORband Pix-M USB features D-Fi USB compatibility for wireless master/slave or DMX control but you can also access dramatic, pre-built automated programs with or without DMX. Wireless, non-DMX operation is also available with the optional IRC-6 remote.

    Highlights

    • Moving LED strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer

    • D-Fi USB compatibility for wireless master/slave or DMX control

    • Angle the light where it’s needed using the built-in motors

    • Create eye-catching animations and video effects with individual LED control

    • Access dramatic, pre-built automated programs with or without DMX

    • Wireless, non-DMX operation is available with the optional IRC-6 remote

    • Flexible control options with onboard 3 and 5-pin DMX connectors

    • Achieve flicker-free video operation with high-frequency LED dimming

    • Save time running cables and extension cords by power linking multiple units

    • powerCON compatible power input/output connections for power linking

    • Fits best in the CHS-60 VIP Gear Bag

    Highlights

    • Moving LED strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer

    • D-Fi USB compatibility for wireless master/slave or DMX control

    • Angle the light where it’s needed using the built-in motors

    • Create eye-catching animations and video effects with individual LED control

    • Access dramatic, pre-built automated programs with or without DMX

    • Wireless, non-DMX operation is available with the optional IRC-6 remote

    • Flexible control options with onboard 3 and 5-pin DMX connectors

    • Achieve flicker-free video operation with high-frequency LED dimming

    • Save time running cables and extension cords by power linking multiple units

    • powerCON compatible power input/output connections for power linking

    • Fits best in the CHS-60 VIP Gear Bag

    Code Image Product Name Attributes Price
    CH-CB-PIX-M
    COLORband Pix-M USB
    COLORband Pix-M USB
    POA
  • COLORdash Batten Quad 12
    COLORdash Batten Quad 12

    COLORdash Batten-Quad 12 is a linear wash fixture with 12 individually controllable quad-colored RGBA LEDs that produce any variation of white as well as richly saturated colors due to the inclusion of amber LEDs. It pixel maps beautifully when used in multiples because it maintains an even pixel pitch. Setup is easy with a hanging bracket, floor trunnions, secure Neutrik powerCON power in and out, and 3- and 5-pin DMX connections.

    AT A GLANCE

    • Built-in auto and custom programs recalled via DMX or Master/Slave

    • Metal construction for added durability

    • Individual pixel control

    • Silent flicker-free operation

    • Mount multiple units in stack or end-to-end to maintain pixel pitch

    SPECIFICATIONS

    OPTICAL

    • Light Source: 12 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
    • Color Temperature (range): 2,800 to 10,000 K
    • Installed Optics: 20 deg
    • Beam Angle: 22 deg
    • Field Angle: 31 deg
    • Illuminance: 539 lux @ 5 m
    • PWM Frequency: 600 Hz

    DYNAMIC EFFECTS

    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0 to 20 Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 4
    • Built-in Automated Programs: Yes

    CONTROL

    • Control Protocol: DMX
    • DMX Channels: 4, 6, 10, 48 or 52
    • Modes/Personalities: 5 personalities (4CH, 6CH, 10CH, 48CH, 52CH)
    Code Image Product Name Attributes Price
    CH-CDASH-BAT-QUAD12
    COLORdash Batten Quad 12
    COLORdash Batten Quad 12
    POA

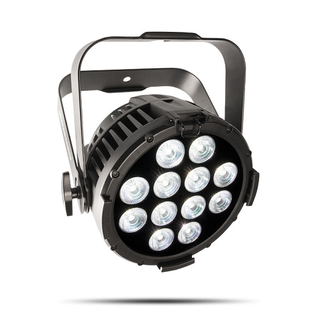

  • COLORdash Par H12IP IP-Rated RGBAWUV LED
    COLORdash Par H12IP IP-Rated RGBAWUV LED

    COLORdash Par H12IP is a compact, yet powerful IP-rated RGBWAUV LED wash delivering a beautifully mixed, soft field of richly saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

    AT A GLANCE

    • Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed

    • At home in any weather conditions with IP rated power and DMX connections

    • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

    • RDM (Remote Device Management) for added flexibility

    • Selectable, smooth dimming curves for eliminate flicker and choppiness in fades

    • Easy to read OLED display with password protection and touchscreen interface

    • Advanced optics provide exceptional color mixing and high efficiency

    • Double-bracketed yoke doubles as floor stand

    SPECIFICATIONS

    OPTICAL

    • Light Source: 12 LEDs (hex-color RGBAW+UV) 10 W, (650 mA), 50,000 hours life expectancy
    • Color Temperature (range): 2,800 to 10,000 K
    • Installed Optics: 15 deg
    • Beam Angle: 22 deg
    • Field Angle: 34 deg
    • Illuminance (total): 1180 lux @ 5 m
    • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

    DYNAMIC EFFECTS

    • Dimmer: Electronic
    • Strobe Rate: 0 to 30 Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 4
    • Built-in Automated Programs: Yes

    CONSTRUCTION / PHYSICAL

    • Dimensions: 322 x 305 x 177 mm
    • Weight: 6.1 kg
    • Exterior Color: BLACK
    • Housing Material: Aluminum die-cast
    • Accessory Holder/Gel Frame size: 8.5 in ( 216 mm)

    CONTROL

    • Control Protocol: DMX, RDM
    • DMX Channels: 6, 8 or 13
    • Modes/Personalities: 3 personalities (6, 8, 13)
    Code Image Product Name Attributes Price

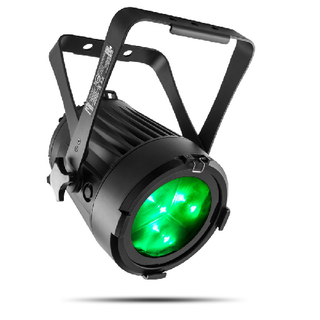

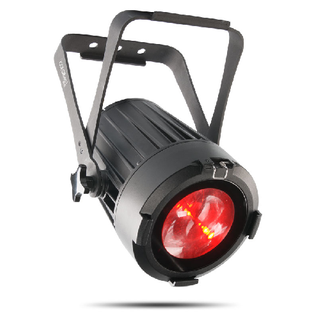

    CH-CDP-H12IP
    COLORdash Par H12IP IP-Rated RGBAWUV LED
    COLORdash Par H12IP IP-Rated RGBAWUV LED
    POA

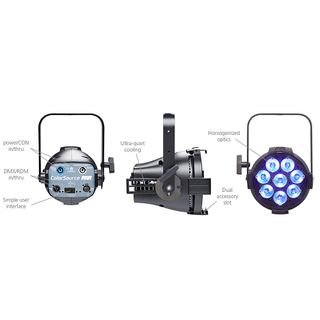

  • ColorSource PAR LED
    ColorSource PAR LED

    Washlight workhorse

    An LED luminaire crafted by lighting experts, the ColorSource PAR uses a balanced recipe of red, green, blue, a twist of lime, and an extra dash of red to provide a richness of colour only possible from ETC LED luminaires. The extremely lightweight ColorSource PAR outputs bright, beautiful light, is easy to use with or without a lighting desk and lives up to ETC’s high standards for quality

    ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-colour mixing system offering bright, vibrant colours and perfectly-mixed pastels.

    The thermal management algorithms built into every ColorSource fixture ensure that the colours you choose in rehearsal are the colours you get during the show.

    What's your angle?

    Numerous diffusion and beam-shaping lenses options unlock ColorSource PARs potential. High backlight, low sidelight, pipe-end positions – you name it, ColorSource PAR will hit it just right.

    Long, light life

    ColorSource PAR has been independently tested using the LM-84 standard. These tests have confirmed what we knew from the beginning: ColorSource PAR is built to last! 55,000 hours. The math: if you ran a ColorSource PAR for three hours a day, seven days a week, all year long – we are talking about 50 years of light.

    Thats a lot of beautifully-lit shows.

    Code Image Product Name Attributes Price
    ETC-CSPAR
    ColorSource PAR LED
    ColorSource PAR LED
    POA

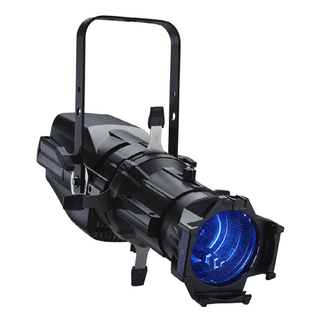

  • ColorSource Spot LED Luminaire RGBL; w/ Shutter Barrel; Black; DMX
    ColorSource Spot LED Luminaire RGBL; w/ Shutter Barrel; Black; DMX

    Rich, emotional color

    An LED luminaire crafted by lighting experts, ColorSource Spot uses a balanced recipe of red, green, blue, a twist of lime, and an extra dash of red to provide a richness of color only possible from ETC LED luminaires. ColorSource Spot outputs bright, beautiful light, is easy to use with or without a lighting desk, and lives up to ETC's high standards for quality.

    ColorSource luminaires are factory-calibrated to ensure consistency. Their four-color mixing system offers bright, vibrant colors, and perfectly-mixed pastels.

    The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.

    ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-color mixing system offering bright, vibrant colors and perfectly-mixed pastels.

    The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.



    S P E C I F I C A T I O N S

    SOURCE
    • 60 Lumileds LUXEON® Rebel LED
    • 6,932 Max lumens
    • 42.4 Lumens per watt
    • L70 rating (hours to 70% output): 54,000 hours (both variants)*
    COLOR
    • Spot: Red, green, blue, limeSpot DB: Red, green, indigo, lime
    • Color mixing
    • Calibrated array
    • No red shift
    OPTICAL
    • Swappable lens tubes between 5-90 degrees
    • 79-24 mm Gate size
    • 6.25"-14" (depending on lens tube) aperture size
    • Pattern projection
    • A or B Pattern size
    • 1,200 Hz (default) and 25,000 Hz (via RDM)
    • Can be used with Source Four LED CYC and Fresnel adapters
    ELECTRICAL
    • 100-240 VAC 50/60 Hz
    • powerCON power in and thru
    • 28 A at 120 V (First half-cycle)
      46 A at 240 V (First half-cycle)
    • 9 fixtures (15 A power thru connector) or 10 fixtures (R20 module or similar)
    • 147 W / 1.87 W at 120 V
    • 1.24 A at 120 V
    THERMAL
    • Ambient operating temp: 0–40deg
    • Fan (controllable)
    • Droop compensation
    • 21.2 dBa average at 1 m
    • 504.78 BTUs/hour
    CONTROLS
    • DMX512 via 5-pin XLR connector Input method
    • DMX512/RDM
    • 4 modes for footprint
    • RDM configuration
    • UI type: Seven-segment, three-button interface
    • Local control
    • 12 Onboard presets
    • 5 Onboard sequences
    • No onboard effects
    • Fixture-to-fixture control
    • 15-bit virtual dimming engine
    Code Image Product Name Attributes Price
    ETC-CSSPOTS
    ColorSource Spot LED Luminaire RGBL; w/ Shutter Barrel; Black; DMX
    ColorSource Spot LED Luminaire RGBL; w/ Shutter Barrel; Black; DMX
    POA
  • ColorSource Spot LED Luminaire, Deep Blue, RGB + Lime Control, DMX Black
    ColorSource Spot LED Luminaire, Deep Blue, RGB + Lime Control, DMX Black

    Rich, emotional color

    An LED luminaire crafted by lighting experts, ColorSource Spot uses a balanced recipe of red, green, blue, a twist of lime, and an extra dash of red to provide a richness of color only possible from ETC LED luminaires. ColorSource Spot outputs bright, beautiful light, is easy to use with or without a lighting desk, and lives up to ETC's high standards for quality.

    ColorSource luminaires are factory-calibrated to ensure consistency. Their four-color mixing system offers bright, vibrant colors, and perfectly-mixed pastels.

    The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.

    ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-color mixing system offering bright, vibrant colors and perfectly-mixed pastels.

    The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.



    About the ColorSource Array options - Original vs. Deep Blue

    Original ColorSource fixtures use an RGB-L array where the ‘B’ represents the use of blue LEDs. ColorSource Deep Blue replaces those blue LEDs with a deeper 'Royal Blue" (indigo) LED. How does this impact your color mixing? Please reference the color chart below.

    Original ColorSource fixtures can reach any color within the dark shaded triangle while the ColorSource Deep Blue fixtures can reach any color within the light shaded triangle. While much of these areas overlap, there is a portion of each range that can only be reached by the respective color arrays (A=Original, B=Deep Blue).

    S P E C I F I C A T I O N S

    SOURCE
    • 60 Lumileds LUXEON® Rebel LED
    • 6,932 Max lumens
    • 42.4 Lumens per watt
    • L70 rating (hours to 70% output): 54,000 hours (both variants)*
    COLOR
    • Spot: Red, green, blue, limeSpot DB: Red, green, indigo, lime
    • Color mixing
    • Calibrated array
    • No red shift
    OPTICAL
    • Swappable lens tubes between 5-90 degrees
    • 79-24 mm Gate size
    • 6.25"-14" (depending on lens tube) aperture size
    • Pattern projection
    • A or B Pattern size
    • 1,200 Hz (default) and 25,000 Hz (via RDM)
    • Can be used with Source Four LED CYC and Fresnel adapters
    ELECTRICAL
    • 100-240 VAC 50/60 Hz
    • powerCON power in and thru
    • 28 A at 120 V (First half-cycle)
      46 A at 240 V (First half-cycle)
    • 9 fixtures (15 A power thru connector) or 10 fixtures (R20 module or similar)
    • 147 W / 1.87 W at 120 V
    • 1.24 A at 120 V
    THERMAL
    • Ambient operating temp: 0–40deg
    • Fan (controllable)
    • Droop compensation
    • 21.2 dBa average at 1 m
    • 504.78 BTUs/hour
    CONTROLS
    • DMX512 via 5-pin XLR connector Input method
    • DMX512/RDM
    • 4 modes for footprint
    • RDM configuration
    • UI type: Seven-segment, three-button interface
    • Local control
    • 12 Onboard presets
    • 5 Onboard sequences
    • No onboard effects
    • Fixture-to-fixture control
    • 15-bit virtual dimming engine
    Code Image Product Name Attributes Price
    ETC-CSSPOTDB
    ColorSource Spot LED Luminaire, Deep Blue, RGB + Lime Control, DMX Black
    ColorSource Spot LED Luminaire, Deep Blue, RGB + Lime Control, DMX Black
    POA
  • ColorSource Spot LED Luminaire, Pearl; CTC;, w/ Shutter Barrel; Black
    ColorSource Spot LED Luminaire, Pearl; CTC;, w/ Shutter Barrel; Black

    Rich, emotional color

    An LED luminaire crafted by lighting experts, ColorSource Spot uses a balanced recipe of red, green, blue, a twist of lime, and an extra dash of red to provide a richness of color only possible from ETC LED luminaires. ColorSource Spot outputs bright, beautiful light, is easy to use with or without a lighting desk, and lives up to ETC's high standards for quality.

    ColorSource luminaires are factory-calibrated to ensure consistency. Their four-color mixing system offers bright, vibrant colors, and perfectly-mixed pastels.

    The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.

    ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-color mixing system offering bright, vibrant colors and perfectly-mixed pastels.

    The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.



    S P E C I F I C A T I O N S

    SOURCE
    • 60 Lumileds LUXEON® Rebel LED
    • 6,932 Max lumens
    • 42.4 Lumens per watt
    • L70 rating (hours to 70% output): 54,000 hours (both variants)*
    COLOR
    • Spot: Red, green, blue, limeSpot DB: Red, green, indigo, lime
    • Color mixing
    • Calibrated array
    • No red shift
    OPTICAL
    • Swappable lens tubes between 5-90 degrees
    • 79-24 mm Gate size
    • 6.25"-14" (depending on lens tube) aperture size
    • Pattern projection
    • A or B Pattern size
    • 1,200 Hz (default) and 25,000 Hz (via RDM)
    • Can be used with Source Four LED CYC and Fresnel adapters
    ELECTRICAL
    • 100-240 VAC 50/60 Hz
    • powerCON power in and thru
    • 28 A at 120 V (First half-cycle)
      46 A at 240 V (First half-cycle)
    • 9 fixtures (15 A power thru connector) or 10 fixtures (R20 module or similar)
    • 147 W / 1.87 W at 120 V
    • 1.24 A at 120 V
    THERMAL
    • Ambient operating temp: 0–40deg
    • Fan (controllable)
    • Droop compensation
    • 21.2 dBa average at 1 m
    • 504.78 BTUs/hour
    CONTROLS
    • DMX512 via 5-pin XLR connector Input method
    • DMX512/RDM
    • 4 modes for footprint
    • RDM configuration
    • UI type: Seven-segment, three-button interface
    • Local control
    • 12 Onboard presets
    • 5 Onboard sequences
    • No onboard effects
    • Fixture-to-fixture control
    • 15-bit virtual dimming engine
    Code Image Product Name Attributes Price
    ETC-CSSPOTSP
    ColorSource Spot LED Luminaire, Pearl; CTC;, w/ Shutter Barrel; Black
    ColorSource Spot LED Luminaire, Pearl; CTC;, w/ Shutter Barrel; Black
    POA
