Fresnel
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CAM-F2-FC-IP
|
|
|
Login For Price |

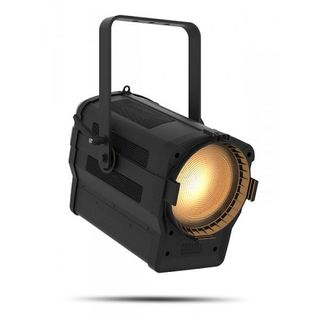

The Cameo F2 T is a professional Fresnel light with high-quality 200 mm lens and huge 12,500 lm output delivering a soft-edged beam with continuously variable 15 to 40 Deg spread. A perfect and energy saving replacement for conventional 1 kW Fresnels, the RDM-enabled spot light is powered by a single 240 watt warm white LED with 50,000 h life expectancy. It has a colour temperature of 3,200 K and a super high CRI of 97 showing colours faithfully and realistically.
The F2 T provides 6 modes of DMX control, a high-speed strobe function and smooth 16-bit dimming with a choice of 4 curves and adjustable response. It offers a selection of 6 PWM frequencies up to 25 kHz for flicker-free performance, and the super efficient heat pipe cooling and temperature controlled fan ensure optimum operation. The Fresnel's rugged die-cast aluminium housing features a rotary encoder and OLED display for easy configuration plus 5-pin DMX and Power Twist inputs and outputs for convenient daisy- chaining. The fixture comes with an 8-way barn door, gel frame and power cord.
| Product type | LED Fresnel Spotlight |
| Type | Theater Fresnel |
| Colour spectrum | Warm White (3200K) |
| Number of LEDs | 1 |
| LED type | 240 W (ca. 50,000 Operating Hours) |
| Refresh rate | Adjustable: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000 Hz |
| Dispersion | Beam Angle: 16 - 40, Field Angle: 28 - 60 |
| Lens | 200 mm Fresnel |
| DMX input | 5-Pol |
| DMX output | 5-Pol |
| DMX mode | 1-channel, 2-channel 1, 2-channel 2, 3-channel, 4-channel, 5-channel |
| DMX Functions | Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, Strobe |
| Standalone modes | Master / Slave mode, Static |
| Controls | Encoder |
| Indicators | OLED Display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 210 W |
| Power connector | TRUE1 Compatible Power I/O Socket |
| Housing material | Die-cast aluminium |
| Cabinet colour | Black |
| Protection class IP | 20 |
| Cooling | Combination of Heat Pipe and Temperature Controlled Fan |
| Luminous flux | 12.500 lm |
| Efficiency | 57 lm/W |
| Ambient temperature (operating) | -15 - 45 Deg |
| Colour temperature | 3200 K |
| Weight | 9 kg |
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CAM-F2-T
|
|
|
Login For Price |

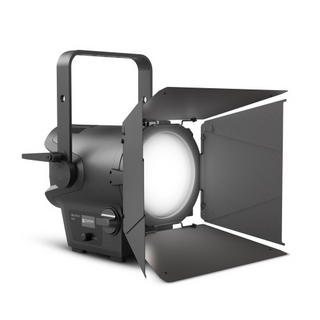

F2 D IP IP65 Fresnel Spotlight with Tungsten LED
Based on the already established F2 models of the F series, there are now three more weatherproof Fresnel spotlights that open up completely new areas of application with their IP65 protection class. Thanks to the IP65 upgrade, these Fresnel spotlights can now also be used for open-air theatres, musicals or concerts as well as film and TV productions and defy all weather conditions.
With a 200 mm quality lens and high luminous flux of 15,000 lm, the RDM-capable spotlight produces a softly edged light beam with an infinitely adjustable beam angle of 15deg to 40deg, offering a perfect and energy-saving alternative for conventional 1 kW Fresnel models. Its 240 W daylight LED with 5,400 K colour temperature has a service life of 50,000 hours. Colours are reproduced naturally and unaltered thanks to the extremely high colour rendering index of 96.
The F2 D IP has 6 DMX control modes, a fast strobe function and 4 dimmer curves with 16-bit resolution and adjustable response. Six selectable pulse width modulation frequencies up to 25 kHz ensure flicker-free operation, highly efficient heat pipe cooling and a temperature-controlled fan ensure optimal function. The robust cast aluminium housing is equipped with a rotary encoder and OLED display for convenient configuration of the spotlight, 5-pin DMX connections and Power-Twist mains sockets enable easy back-to-back switching. The scope of delivery includes an 8-way barndoor, a gel frame and the power cable.
| Product type | LED Fresnel Spotlight |
| Type | Outdoor |
| Colour spectrum | Tungsten |
| Number of LEDs | 1 |
| LED type | 240 W (ca. 50,000 Operating Hours) |
| Refresh rate | 800 - 25000 Hz |
| Dispersion | Beam Angle: 17 deg - 53 deg, Field Angle: 30 deg - 87 deg |
| Lens | 200 mm Fresnel |
| DMX input | 5-Pin |
| DMX output | 5-Pin |
| DMX mode | 10-channel CCT, 10-channel HSI, 14-channel, 3-channel CCT, 3-channel HSI, 4-channel, 7-channel CCT, 7-channel HSI, 8-channel, 9-channel |
| DMX Functions | Colour macros, Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, Hue Saturation, RGBW, RGBW Fine, Strobe |
| Standalone modes | Loop, Master / Slave mode, Static |
| Controls | Encoder |
| Indicators | OLED Display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 250 W |
| power factor | 0.95 / 230 V, 0.99 / 120 V |
| Power connector | TRUE1 Compatible Power I/O Socket |
| Housing material | Die-cast aluminium |
| Cabinet colour | Black |
| Protection class IP | IP65 |
| Cooling | Combination of Heat Pipe and Temperature Controlled Fan |
| Luminous flux | 6500 lm |
| Efficiency | 27 lm/W |
| Color temperature | 1600 - 6500 K |
| Ambient temperature (in operation) | -15 - 45 deg |
| Weight |
10 kg |
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CAM-F2-T-IP
|
|
|
Login For Price |

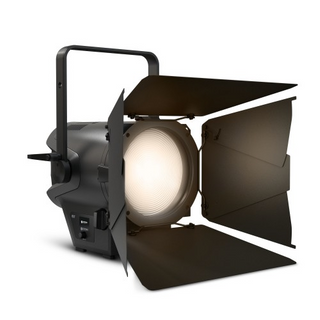

As an event technician and theater lighting designer you know: the requirements for a Fresnel spotlight are identical regardless of the size of the application - high quality of light in the most compact dimensions possible, natural color rendering, professional features such as adjustable PWM and silent mode, and more.
In addition to large, powerful spotlights with several kW light output, large theaters need smaller versions that fit seamlessly into the lighting concept. But what about smaller stages, theater festivals away from the big festivals, ensembles on tour in unusual locations?
The F1 D provides you with an ultra-versatile LED Fresnel spotlight with daylight LED for use in theatres, live applications, broadcasting and film. It can be quickly and easily transported anywhere and utilized without mains cables when needed.
Cameo's F series is rounded off by the F1, which is the most compact spotlight in the range. It functions on less power than the larger F2 and F4 models and, with 6,000 lm of daylight white, it can be easily used in place of conventional spotlights which have comparatively inefficient 650-watt halogen lamps. In professional applications, the F1 is every bit as good as its big brothers: an impressive CRI rating of >90 faithfully reproduces colors when lighting objects and people, Silent Mode for virtually silent use in noise-sensitive environments, and flicker-free operation thanks to selectable pulse width modulation frequency up to 25 kHz.
Paired with the infinitely variable zoom range of 15 deg to 53 deg, you're free to use the F1 D as a theatre or TV/film light: it works just as well as a high-performance front light or as flexible additional lighting, then wows the very next day when used as a durable spotlight in the conference foyers, and then finally wraps up the week as a natural light source in interviews. Frequently traveling lighting technicians are well aware of the wide range of requirements placed on spotlights and will love the compact, lightweight magnesium housing. In addition, the F1 D can be converted into a battery-operated spotlight for mobile use in just a few steps with the optional V-Mount battery plate.
All requirements covered? With the compact Cameo F1 D you can always make any production a huge success.
| Product type | LED Fresnel Spotlight |
| Type | Theater Fresnel |
| Colour spectrum | Daylight |
| Number of LEDs | 1 |
| LED type | 78 W (approx. 50000 operating hours) |
| LED PWM Frequency | 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable |
| Dispersion | Beam Angle: 15 - 53 deg, Field Angle: 24 - 78 deg |
| Lens | 150 mm Fresnel |
| DMX input | 5-Pin |
| DMX output | 5-Pin |
| DMX Functions | Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, Strobe |
| Standalone modes | Master / Slave mode, Static |
| Controls | Push encoder |
| Indicators | OLED Display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 87 W |
| Power connector | TRUE1 Compatible Power I/O Socket |
| Power supply connection | 4-pin connector |
| Housing material | Magnesium |
| Cabinet colour | Black |
| Protection class IP | IP20 |
| Cooling | Combination of Heat Pipe and Temperature Controlled Fan |
| Luminous flux | 6000 lm |
| Efficiency | 66 lm/W |
| Color temperature | 5600 K |
| Operating Temperature | -15 - 45 degC |
| Width | 225 mm |
| Height | 255 mm |
| Length | 280 mm |
| Weight | 4.5 kg |

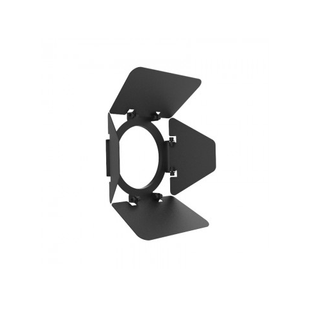

| Accessories (included) | 8-way barndoor, gel frame, Power cord |
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CAM-F1-D
|
|
|
Login For Price |

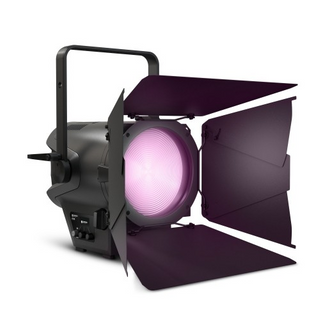

As an event technician and theater lighting designer you know: the requirements for a Fresnel spotlight are identical regardless of the size of the application - high quality of light in the most compact dimensions possible, natural color rendering, professional features such as adjustable PWM and silent mode, and more. If the spotlight also has to cover the complete RGB color spectrum, the requirements catalog gets thicker and thicker.
In addition to large, powerful spotlights with several kW light output, large theaters need smaller versions that fit seamlessly into the lighting concept. But what about smaller stages, theater festivals away from the big festivals, ensembles on tour in unusual locations?

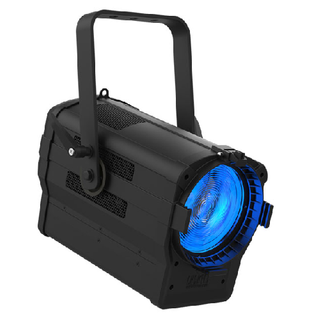

The F1 FC is an extremely versatile LED Fresnel spotlight with RGBW-LED for the theatre, live, broadcasting, and film, which can be transported quickly and easily to any location and can work completely without power cabling if necessary.
Cameo's F series is rounded off by the F1, which is the most compact spotlight in the range. It uses less power compared with the larger models F2 and F4 and, with its 2,600 lm full-colour LED, effortlessly replaces conventional spotlights with comparatively inefficient 650 Watt halogen lamps. For professional use, the F1 FC is equal to its big brothers in every respect: RGBW color mixing in HSI mode for setting color, intensity, and saturation quickly and precisely via three channels, a CCT mode for optimised white light rendition (CRI >90) including green-magenta correction, a silent mode for practically silent use in noise-sensitive environments and flicker-free operation thanks to selectable pulse width modulation frequency up to 25 kHz.
Paired with the infinitely variable zoom range of 15deg to 53deg, you're free to use the F1 FC as a theatre or TV/film light: it works just as well as a high-performance front light or as flexible additional lighting, then wows the very next day when used as a durable spotlight on the street festival stage, and then finally wraps up the week as a natural light source in interviews. Frequently traveling lighting technicians are well aware of the wide range of requirements placed on spotlights and will love the compact, lightweight magnesium housing. In addition, the F1 T can be converted into a battery-operated spotlight for mobile use in just a few steps with the optional V-Mount battery plate.
All requirements covered? With the compact Cameo F1 FC, you can turn any production into a big success.
| Product type | LED Fresnel Spotlight |
| Type | Theater Fresnel |
| Colour spectrum | RGBW |
| Number of LEDs | 10 x green, 10 x red, 20 x white, 6 x blue |
| LED type | 124 W (approx. 50000 operating hours), 87 W (approx. 50000 operating hours) |
| LED PWM Frequency | 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable |
| Dispersion | Beam Angle: 15 - 51 °, Field Angle: 26 - 75 ° |
| Lens | 150 mm Fresnel |
| DMX input | 5-Pin |
| DMX output | 5-Pin |
| DMX Functions | CCT, colour macro, Device Settings, Dim to Warm, Dimmer, Dimmer Curve, Dimmer Fine, Hue Saturation, RGBW, RGBW Fine, Strobe |
| Standalone modes | Master / Slave mode, Static |
| Controls | Push encoder |
| Indicators | OLED Display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 128 W |
| Power connector | TRUE1 Compatible Power I/O Socket |
| Power supply connection | 4-pin connector |
| Housing material | Magnesium |
| Cabinet colour | Black |
| Protection class IP | IP20 |
| Cooling | Combination of Heat Pipe and Temperature Controlled Fan |
| Luminous flux | 2600 lm |
| Efficiency | 20 lm/W |
| Color temperature | 1600 - 6500 K, 5600 K |
| Operating Temperature | -15 - 40 degC |
| Width | 225 mm |
| Height | 255 mm |
| Length | 280 mm |
| Weight | 4.5 kg |
| Accessories (included) | 8-way barndoor, gel frame, Power cord |
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CAM-F1-FC
|
|
|
Login For Price |

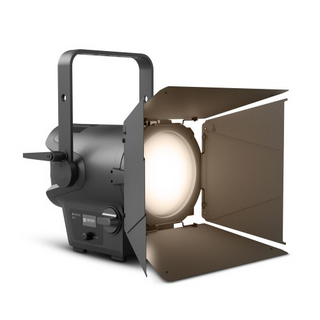

As an event technician and theater lighting designer you know: the requirements for a Fresnel spotlight are identical regardless of the size of the application - high quality of light in the most compact dimensions possible, natural color rendering, professional features such as adjustable PWM and silent mode, and more.
In addition to large, powerful spotlights with several kW light output, large theaters need smaller versions that fit seamlessly into the lighting concept. But what about smaller stages, theater festivals away from the big festivals, ensembles on tour in unusual locations?

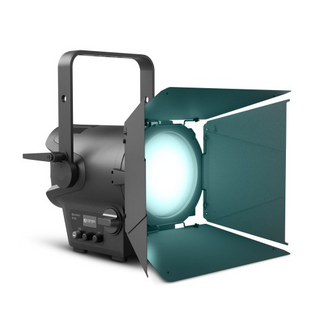

The F1 T provides you with an ultra-versatile LED Fresnel spotlight with tungsten LED for use in theatres, live applications, broadcasting and film. It can be quickly and easily transported anywhere and utilized without mains cables when needed.
Cameo's F series is rounded off by the F1, which is the most compact spotlight in the range. It functions on less power than the larger F2 and F4 models and, with 4,800 lm of warm white, it can be easily used in place of conventional spotlights which have comparatively inefficient 650-watt halogen lamps. In professional applications, the F1 is every bit as good as its big brothers: an impressive CRI rating of 98 faithfully reproduces colors when lighting objects and people, Silent Mode for virtually silent use in noise-sensitive environments, and flicker-free operation thanks to selectable pulse width modulation frequency up to 25 kHz.
Paired with the infinitely variable zoom range of 15 deg to 53 deg, you're free to use the F1 T as a theatre or TV/film light: it works just as well as a high-performance front light or as flexible additional lighting, then wows the very next day when used as a durable spotlight on the street festival stage, and then finally wraps up the week as a natural light source in interviews. Frequently traveling lighting technicians are well aware of the wide range of requirements placed on spotlights and will love the compact, lightweight magnesium housing. In addition, the F1 T can be converted into a battery-operated spotlight for mobile use in just a few steps with the optional V-Mount battery plate.
All requirements covered? With the compact Cameo F1 T you can always make any production a huge success.
| Product type | LED Fresnel Spotlight |
| Type | Theater Fresnel |
| Colour spectrum | Tungsten |
| Number of LEDs | 1 |
| LED type | 78 W (approx. 50000 operating hours) |
| LED PWM Frequency | 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable |
| Dispersion | Beam Angle: 15 - 53 deg, Field Angle: 24 - 78 deg |
| Lens | 150 mm Fresnel |
| DMX input | 5-Pin |
| DMX output | 5-Pin |
| DMX Functions | Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, Strobe |
| Standalone modes | Master / Slave mode, Static |
| Controls | Push encoder |
| Indicators | OLED Display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 87 W |
| Power connector | TRUE1 Compatible Power I/O Socket |
| Power supply connection | 4-pin connector |
| Housing material | Magnesium |
| Cabinet colour | Black |
| Protection class IP | IP20 |
| Cooling | Combination of Heat Pipe and Temperature Controlled Fan |
| Luminous flux | 4800 lm |
| Efficiency | 51 lm/W |
| Color temperature | 3000 K |
| Operating Temperature | -15 - 40 degC |
| Width | 225 mm |
| Height | 255 mm |
| Length | 280 mm |
| Weight | 4.5 kg |
| Accessories (included) | 8-way barndoor, gel frame, Power cord |
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CAM-F1-T
|
|
|
Login For Price |

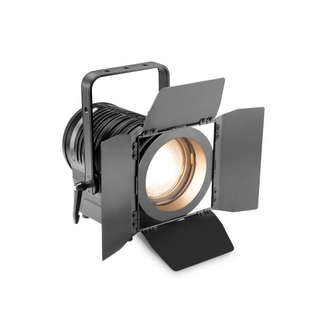

The Cameo TS 100 WW is a versatile theatre spotlight with Fresnel lens and manual zoom for easy spot-to-flood focus adjustment. Delivering a soft-edged beam with continuously variable 14 to 38 Deg angle, the RDM-enabled fixture is powered by a single 100 watt warm white LED. It sports a colour temperature of 3,100 K, an illuminance of 52,000 lux at 1 metre distance and shows colours faithfully and realistically with a super high CRI of 97.
The spotlight's DMX functions include a high-speed strobe with adjustable flash rate from 1 - 20 Hz and a choice of dimming curves with 16-bit resolution. Selectable refresh rates up to 25 kHz ensure flicker-free performance. The TS 100 WW comes in a tough metal housing with temperature controlled fan. It provides a 4-button display for easy configuration, 3 and 5-pin DMX and Power Twist inputs and outputs for convenient daisy-chaining. The package includes a beam-shaping rotating barn door and colour filter frame.
| Product type | LED PAR Lighting |
| Type | Theater Spot |
| Colour spectrum | Warm white |
| Number of LEDs | 1 |
| Color temperature | 3100 K |
| CRI | 97 |
| LED type | warm white 100 W |
| Refresh rate | 650 Hz; 1530 Hz; 3600 Hz; 25 k Hz |
| Dispersion | 14 - 38 |
| DMX input | XLR 3-pin male, XLR 5-pin male |
| DMX output | XLR 3-pin female, XLR 5-pin female |
| Modes of operation | DMX 512, Stand Alone, Master/Slave |
| DMX mode | 1-channel, 3-channel, 5-channel |
| DMX Functions | 16-Bit Dimmer, Device Settings, Dimmer Curve, Strobe |
| Strobe flash rate | 1 Hz - 20 Hz |
| Standalone modes | Dimmer |
| Controls | Down, Enter, Mode, Up |
| Indicators | LC display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 120 W |
| Power connector | Blue and White Power Twist |
| Housing material | die cast metal |
| Cabinet colour | Black |
| Cooling | temperature-controlled fan |
| Operating Temperature | 0 - 40Deg |
| Illuminance | 52000 lx @ 1m |
| Luminous flux | 4100 lm |
| Width | 320 mm |
| Height | 370 mm |
| Depth | 310 mm |
| Weight | 7. kg |
| Accessories (included) | Barndoor, Colour Filter Frame |
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CAM-TS-100-WW
|
|
|
Login For Price |

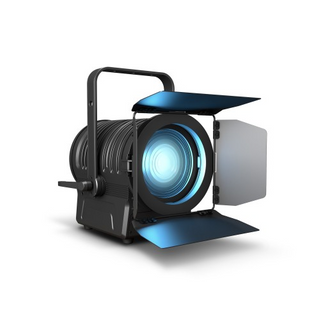

Any DJ, band, event organiser or company who considers it important to have the optimum light output combined with an extensive colour spectrum for their stage, podium or lectern, should take a look at the Cameo TS 200 FC. With its mixture of red, green, blue, amber, lime and cyan (RGBALC), the Fresnel spotlight is a genuine all-rounder that, thanks to 200 W and full colour, is able to meet the very highest demands in virtually all lighting situations. This is made possible by a light output of 5,500 lm at 3,200 K and a simulated halogen lamp dimmer response - the so-called Dim-To-Warm technology (DTW). The Cameo TS 200 FC provides you with an LED engine for light in all its forms. The Fresnel spotlight can also be operated in silent mode, making it an all-rounder for use in theatres, on film sets and at events.
| Product type | LED Fresnel Spotlight |
| Type | Fresnel Theater Spot with zoom function |
| Colour spectrum | RGBALC |
| Number of LEDs | 1 |
| Color temperature | 2800 - 8000 K |
| CRI | >0 |
| LED type | 200 W |
| Refresh rate | 12000 Hz, 1530 Hz, 25000 Hz, 3600 Hz, 650 Hz |
| Dispersion | 14 - 50 Deg |
| DMX input | XLR 3-pin male, XLR 5-pin male |
| DMX output | XLR 3-pin female, XLR 5-pin female |
| DMX colour modes | CCT, Direct, HSI |
| Modes of operation | DMX512, Master / Slave mode, Standalone |
| DMX Functions | Amber, Blue, CCT, Colour macros, Cyan, Device Settings, Dim to Warm, Dimmer, Dimmer Fine, Green, Hue Saturation, Lime, Red, Silent Mode, Strobe, Tint |
| RDM | Yes |
| Strobe flash rate | 1-20Hz |
| Standalone modes | CCT, Colour macros, Direct, HSI, Master / Slave mode |
| Controls | Down, Enter, Mode, Up |
| Indicators | LC display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 200 W |
| Power connector | Blue and White Power Twist |
| Fuse | T3A / 250 V (5 x 20 mm) |
| Housing material | die cast metal |
| Cabinet colour | Black |
| Cooling | temperature-controlled fan |
| Relative Humidity | < 80 %, not condensing |
| Operating Temperature | 0 - 40Deg |
| Luminous flux | 5500 (@3200 K) lm |
| Width | 320 mm |
| Height | 370 mm |
| Depth | 310 mm |
| Weight | 8 kg |
| Accessories (included) | Barndoor, Colour Filter Frame |
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CAM-TS-200-FC
|
|
|
Login For Price |
The Cameo TS 200 WW is a versatile theatre spotlight with Fresnel lens and manual zoom for easy spot-to-flood focus adjustment. Delivering a soft-edged beam with continuously variable 14 to 38 Deg angle, the RDM-enabled fixture is powered by a single 180-watt warm white LED. It sports a colour temperature of 3,100 K, an illuminance of 67,500 lux at 1-metre distance and shows colours faithfully and realistically with a super high CRI of 96.
The spotlight's DMX functions include a high-speed strobe with adjustable flash rate from 1 - 20 Hz and a choice of dimming curves with 16-bit resolution. Selectable refresh rates up to 25 kHz ensure flicker-free performance. The TS 200 WW comes in a tough metal housing with temperature controlled fan. It provides a 4-button display for easy configuration, 3 and 5-pin DMX and Power Twist inputs and outputs for convenient daisy-chaining. The package includes a beam-shaping rotating barn door and colour filter frame.
| Product type | LED PAR Lighting |
| Type | Theater Spot |
| Colour spectrum | Warm white |
| Number of LEDs | 1 |
| Colour temperature | 3100 K |
| CRI | 97 |
| LED type | Warm White 180 W |
| Refresh rate | 650 Hz; 1530 Hz; 3600 Hz; 25 k Hz |
| Dispersion | 14 - 38 Deg |
| DMX input | XLR 3-pin male, XLR 5-pin male |
| DMX output | XLR 3-pin female, XLR 5-pin female |
| Modes of operation | DMX 512, Stand Alone, Master/Slave |
| DMX mode | 1-channel, 3-channel, 5-channel |
| DMX Functions | 16-Bit Dimmer, Device Settings, Dimmer Curve, Strobe |
| Strobe flash rate | 1 Hz - 20 Hz |
| Standalone modes | Dimmer |
| Controls | Down, Enter, Mode, Up |
| Indicators | LC display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 200 W |
| Power connector | Blue and White Power Twist |
| Housing material | die cast metal |
| Cabinet colour | Black |
| Cooling | temperature-controlled fan |
| Operating Temperature | 0 - 40 Deg |
| Illuminance | 67500 lx @ 1 m |
| Luminous flux | 6600 lm |
| Width | 320 mm |
| Height | 370 mm |
| Depth | 310 mm |
| Weight | 7.4 kg |
| Accessories (included) | Barndoor, Colour Filter Frame |
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CAM-TS-200-WW
|
|
|
Login For Price |
When warm, bright, even wash light is needed for mobile and installation applications, EVE P-160 RGBW delivers. This robust light boasts 160 total watts of red, green, blue and white LEDs for full colour output as well as preset white colour temperatures that are built right in. EVE P-160 RGBW includes interchangeable magnetic lenses to alter the beam to desired angles and a built-in gel frame holder and 6 1/4;-inch accessory slot to hold barn doors. Streaming and video applications? EVE P-160 RGBW is the perfect solution. It features high-frequency LED dimming for flicker-free operation on camera. Its fanless design ensures 100% silent operation great for quiet stage and studio needs. D-Fi USB compatibility is on board for wireless master/slave or DMX control. EVE P-160 RGBW is tough and road-ready with a cast aluminium housing that provides extra strength without the weight and powerCON compatible power input/output connections for power linking.
Highlights
-
Robust wash light designed for mobile and installation applications
-
Included interchangeable magnetic lenses alter the beam to desired angles
-
Full colour output as well as preset white colour temperatures built in.
-
Built-in gel frame holder and 6 1/4 inch accessory slot to hold barn doors
-
Fanless design ensures 100% silent operation
-
Flicker-free on video due to the high-frequency LED dimming
-
D-Fi USB compatibility for wireless master/slave or DMX control
-
Cast aluminium housing provides extra strength without the weight
-
powerCON compatible power input/output connections for power linking
-
Fits best in the CHS-40 VIP gear bag
Specifications
- DMX Channels: 4, 6 or 11
- DMX Connectors: 3- and 5-pin XLR
- Light Source: 61 LEDs (14 red, 13 green, 14 blue, 20 white) 160 W total, (3.8 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 33 Hz
- PWM Frequency: 2 kHz
- Beam Angle: 23Deg, 35Deg or 48Deg
- Field Angle: 50Deg, 63Deg or 85Deg
- Illuminance: (23Deg): 3,442 lux @ 2 m (no lens)
(35Deg): 2,414 lux @ 2 m (lens 1)
(48Deg): 1,310 lux @ 2 m (lens 2)
(23Deg): 519 lux @ 5 m (no lens)
(35Deg): 386 lux @ 5 m (lens 1)
(48Deg): 211 lux @ 5 m (lens 2) - Lumens: 4,880
- Power Linking: 11 units @ 120 V; 21 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 122 W, 1 A @ 120 V, 60 Hz
121 W, 0.5 A @ 230 V, 50 Hz - Weight: 3.6 kg
- Size: 220 x 245 x 305 mm
- Approvals: CE, MET, RoHS
- Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
- CRI: 80 (Warm White)
- Colour Temperature Range: 2700 to 6500 K
- Optional Controllers: DFI USB
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CH-EVE-P160RGBW
|
|
|
Login For Price |

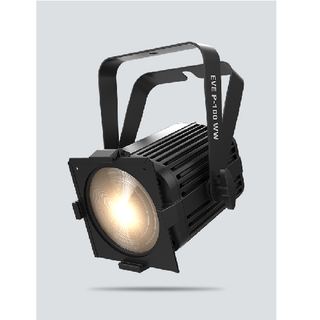

Warm, bright and even wash is at hand with EVE P-100 WW, a high output warm white (3500 K) wash light designed for mobile and installation applications. It includes interchangeable magnetic lenses to alter the beam to desired angles. EVE P-100 WW features a built-in gel frame holder and handy 6 1/4-inch accessory slot to hold barn doors.
Its fanless design ensures 100% silent operation making it great for quiet applications. High-frequency LED dimming eliminates flicker making EVE P-100WW great for video and broadcast applications. D-Fi USB compatibility is on board for wireless master/slave or DMX control as well as powerCON compatible power input/output connections for power linking. Sturdy cast aluminum housing provides extra strength without the weight. EVE P-100WW fits best in the CHS-40 VIP gear bag.
Highlights
-
High output warm white (3500 K) wash light designed for mobile and installation applications
-
Included interchangeable magnetic lenses alter the beam to desired angles
-
Built-in gel frame holder and 6 1/4 -inch accessory slot to hold barn doors
-
Fanless design ensures 100% silent operation
-
Flicker-free on video due to the high-frequency LED dimming
-
D-Fi USB compatibility for wireless master/slave or DMX control
-
Cast aluminum housing provides extra strength without the weight
-
powerCON-compatible power input/output connections for power linking
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CH-EVEP-100
|
|
|
Login For Price |
The TL-F1000 is an LED Fresnel spotlight with a light output equivalent to most 1000 watt incandescent Fresnel spotlights.
The F1000 is suitable for general lighting in larger theatres and TV studios, and for exhibition and lighting displays including art galleries and museums.
The F1000 can be fitted with an internal wireless DMX card by Lumen Radio (WDMX compatible).
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
TL-TLF1000-3K-5XLR
|
|
|
Login For Price |
The TL-F1000 is an LED Fresnel spotlight with a light output equivalent to most 1000 watt incandescent Fresnel spotlights.
The F1000 is suitable for general lighting in larger theatres and TV studios, and for exhibition and lighting displays including art galleries and museums.
The F1000 can be fitted with an internal wireless DMX card by Lumen Radio (WDMX compatible).
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
TL-TLF1000-5K-5XLR
|
|
|
Login For Price |
The TL-F500 is an LED Fresnel spotlight with a light output equivalent to most 500 watt incandescent Fresnel spotlights.
The F500 is suitable for general lighting in smaller theatres and TV studios, and for exhibition and lighting displays including art galleries and museums.
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
TL-TLF500-5K-5XLR
|
|
|
Login For Price |
The TL-F500 is an LED Fresnel spotlight with a light output equivalent to most 500 watt incandescent Fresnel spotlights.
The F500 is suitable for general lighting in smaller theatres and TV studios, and for exhibition and lighting displays including art galleries and museums.
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
TL-TLF500-3K-5XLR
|
|
|
Login For Price |
fos/4 fixtures are designed and made in the ETC factory in Wisconsin, USA. But if you need more than fixtures, we’ve got you covered. fos/4 was designed to work with a full system of ETC products. Click below to read more about our consoles, apps, rigging, and other fixtures.
Over a decade of research has been realized in the fos/4 panels. It’s time to give your viewers the most realistic environments and skin tones possible. Why fix in postproduction what you can realize in production? fos/4 is available in both a tunable white light Daylight HDR array and a full-colour Lustr X8 array.
Intuitive UI
The user interface was designed with the cinematic workflow in mind. Features are simple and intuitive without compromising efficiency. The four backlit encoders change colours to correspond to the attributes they control on the screen. Even new users can quickly and accurately adjust settings.
Colour control
With fos/4 you have the option to change your fixture’s default philosophy. When working with additive colour, the fixture often decides how to mix the colour requested. There are many different options. Traditionally fixtures choose to mix the brightest version of the colour you’re trying to make. While this gives you intensity, it does not give you quality light. Aiming for quality may mean a noticeable decrease in intensity. We’re now letting you decide what you want to see. Use the tune functionality to choose brightest or best spectral.
Wireless control
Near field communication (NFC) enables you to push and pull information including fixture setup using ETC’s Set Light app from your mobile phone or tablet, even when the fixture isn’t powered.
Or use City Theatrical’s Multiverse wireless DMX control with your console. Broadcast as many as 10 universes of DMX from a single transmitter without excessive radio energy.
13-55 degree zoom
A true Fresnel with LED capabilities, fos/4 Fresnel has zoom control from either the front or the back of the fixture. Adjust the beam then use barn doors or other accessories to control the edges.
Deep Red
With the addition of a deep red LED, we render skin tones, sunsets, and moody saturated scenes better. We’ve reached further into the corners of the CIE colour space to grab the deepest red — a red that is essential to accurately capture the warm glow of firelight, romance at sunset, the most nuanced skin tones, and the truest whites.
Predictable nuanced colour from reality, to the camera, to the screen.
See how fos/4 transforms how you work each day.
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
ETC-FOS4FRESL
|
|
|
Login For Price |
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CH-OVATIONFBD
|
|
|
Login For Price |

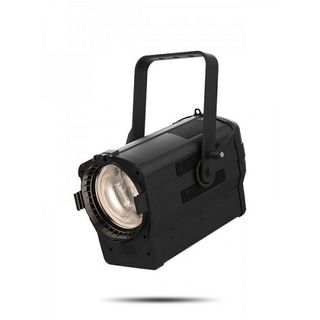

FEATURES
- Warm white Fresnel with output comparable to a 6" 650 W Fresnel
- Soft and even field of light
- 16-bit dimming resolution for smooth fades
- Virtually silent operation for use in any situation
- Motorized zoom angle between 25° to 65°, manually or via DMX
- Protocol(s): DMX, RDM
- DMX Channels: 1, 2, 2 or 5
- Modes/Personalities: 4 personalities (1, 2, 2, 5)
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CH-F145WW
|
|
|
Login For Price |
Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theatres and television studios.
A motorized zoom with a 16 Deg- 68 Deg field range and the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM and an easy to navigate OLED full text display.
AT A GLANCE
-
Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel
-
Soft and even field of light
-
16-bit dimming resolution for smooth fades
-
Virtually silent operation for use in any situation
-
Motorized zoom range between 16 Deg to 68 Deg, manually or via DMX
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CH-OVATIONF-265WW
|
|
|
Login For Price |
FEATURES
- Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
- Smooth, motorized zoom from 30deg; to 85deg;
- Beautiful 16-bit dimming of master dimmer and individual colours
- Easy to use onboard control of colour, zoom and dimming
- Virtual Color wheel with colour matched to popular gel colours
- Color Temperature Presets from 2800 K to 6500 K with high CRI and CQS
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Virtually silent operation for use in studio and theatre applications
SPECIFICATIONS
OPTICAL
- Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
- Colour Temperature (range): 2800 to 6500 K
- CRI (3200 K): 90
- Beam Angle: 17deg to 54deg
- Field Angle: 30deg to 85deg
- Zoom Angle: 30deg to 85deg
- Lumens (30deg): 4,294
- Lumens (73deg): 6,661
- Illuminance (30deg): 1,450 lux @ 5 m
- Illuminance (73deg): 312lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 27 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 569.44x 320 x 275 mm
- Weight: 8.6kg
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum die-cast
CONNECTIONS
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 1.5 m
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 3, 5, 7, 11, 13, 14 or 17
- Modes/Personalities: 8 personalities (3, 5, 7, 11, 13, 14, 17, HSV)
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CH-915FC-KIT
|
|
|
Login For Price | ||
|
CH-F-915FC
|
|
|
Login For Price |

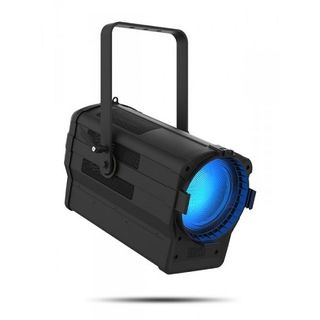

Ovation F-415FC
Ovation F-415FC is a 6" Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 14Deg & 68Deg field range allows you to add light where it is needed. Control of the virtual colour wheel, zoom and output can be via DMX or onboard dials. Its also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.
At a Glance
-
Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
-
Soft and even field of light
-
Smooth, motorized zoom from 14Deg to 68Deg
-
Beautiful 16-bit dimming of master dimmer and individual colours
-
Easy to use onboard control of colour, zoom and dimming
-
Virtual Color wheel with colour matched to popular gel colours
-
Color Temperature Presets from 2800 K to 6500 K
-
RDM (Remote Device Management) for added flexibility
-
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
-
Virtually silent operation for use in studio and theatre applications
| Code | Image | Product Name | Attributes | Price | |
|---|---|---|---|---|---|
|
CH-F-415FC
|
|
|
Login For Price |
