The SSD12 is a new product in a familiar package. Interface your patching and split system via the industry-standard LK multipin connector and you are ready to rock! The durable Neutrik brand ABS XLR connectors decrease the weight and space requirements of the system, leaving more space above the connectors for your favourite brand of tape.
The ONEstage SSD12 is designed to be a highly versatile multipin stage box for use on demanding touring and festival stages as well as TV and recording studios.
The highly modular design of the SSD12 allows the user to quickly and easily modify the I/O configuration, depending on its intended use. The high-quality LK brand multipin connector is wired to our very own PCB based XLR module using phoenix style 3pin plugs. This allows the user to swap one, or all of the XLR receptacles for male plugs or non-latching female connectors. The included blanking plate facilitates the addition of a throughput connector or replacing the multipin connector with a wired lead altogether. The solderless nature of the connectors is a quantum leap forward in terms of modularity and serviceability.
Industry-standard LK37MP with crimpled pins more maximum reliability
Room above connectors for your favourite brand of electrical tape.
8-position Colour and Letter labelled PSD (patch selector dial) for tapeless labelling and easy identification.
Easily modifiable using solderless XLR modules
Ruggedised Lightweight aluminium enclosure
Textured finish and anodised black for discrete appearance and low reflectivity on stage
Black ABS feet for increased durability
Medical grade Polycarbonate Label and adhesive with a matte finish prevents reflections
Truss mountable via integral M8 threaded inserts
Shares the same physical form factor as ONEstage SSD, SPX products
The overall weight of less than 900g saves weight and transport cost
2x M4 holes for mounting additional accessories
Plastic-free, recycled cardboard packaging
Proudly made in Melbourne Australia
The SSD12 uses Neutrik A sized hole, not compatible with D sized components
Whilst every effort was made to prevent the potential ingress of dust and moisture, the SSD12 is NOT officially IP rated
M8 threaded inserts are not TUV rated
LK37 dust cap not included
Specs are subject to change without notice
The SSD16e is ONEstage's ruggedized 16ch audio dropbox for stage and studio use. For use on demanding touring and festival stages, as well as TV and recording studios, the SSD16e shares a form factor with its little brother, the SSD12, with the addition of 4 channels available via an Ethercon connector.
The highly modular design of the SSD16e allows for easy modification between shows. The high-quality LK brand multipin connector is wired to our very own PCB based XLR module using phoenix style 3pin plugs. This allows the user to swap one or all, of the XLR receptacles for male plugs or non-latching female connectors. The integral Ethercon plug allows you to easily expand or change the I/O configuration to suit the application. The combination of Ethercon breakout and solderless connectors is a quantum leap forward in terms of modularity, useability, and serviceability.
Industry-standard LK54MP with crimpled pins more maximum reliability
Channels 13-16 on Ethercon plugs using our RJ4p
Ruggedised & Lightweight aluminium enclosure
Shares the same physical form factor as ONEstage SPD & & SPX products
The SSD16e uses Neutriks A sized hole, not compatible with D sized components
Channels 13-16 are ONLY available via the ethercon receptacle
Whilst every effort was made to prevent the potential ingress of dust and moisture, the SS16e is NOT officially IP rated
LK54 dust cap not included
The ONEstage MPD8, or Multi-Purpose Distro 8 outlet is a hybrid of the SPD8 and RPD8 products, with the addition of the DMM63 digital multi-meter as seen on the MD32 MD63 range of distros. Not to be pigeon-holed into a single-use case, the MPD8 is perfect for scenarios where a distro may be required to perform the dual function of providing power for rack-mounted equipment as well as powering extraneous equipment such as monitor consoles, DJ equipment or touring packages supplied by third parties.
Each of the 8 power channels is protected via a Hager ADC9 series MCB/RCD (also know as MCBO) which offer the rear output connectors the maximum possible current of 16a (10a on front) as well earth leakage protection.
On the front of the unit, you will find 4 T1 outputs with Power Present LEDs; discreetly mounted behind a transparent window of the medical grade polycarbonate overlay. On the rear of the MPD8 there are an additional 4 outlets with Flex mounting holes that allow either a 15a GPO or a TruCon in any position. The rear-mounted outlets also have Power Present LEDs on the front panel and all output are colour matched to suit the entire ONEstage range.
Front panel 3 phase and Neutral present LED with fault indication.
Dual pole switching to comply to AS/NZS3002/20218x High quality 16/10, 6k, 30ma Hager brand MCBO/GFCI.
Multipurpose layout and connectors options facilitate a range of use cases.
Phase labelled outputs for easy load balancing.
Recessed Power Present LEDs for each output.
User-configurable rear outputs (TruCon or GPO).
3phase power meter with V, A, Hz, Pf and KVA (firmware updatable).
3phase DC power supply ensures the multi-meter is always on, even if the supply drops a phase or neutral.
Medical grade Polycarbonate Label and adhesive with a matte finish for discrete appearance
Tapeless labelling to correspond with the ONEstage SPD3 & 5
Brass protective earth bond for easy PAT testing
Compact 250mm depth
WAGO brand terminals for reliable operation and easy fault finding by qualified repair technicians
Highly flexible 6mm2 Ozo flex brand supply cable. 2 meters in length
Fitted with Wilco 50A supply plug (other options available on request)
Not for standalone use, Must be housed in 19" rack mount compatible enclosure
Whilst every effort was made to prevent the potential ingress of dust and moisture, the MPD8 is NOT officially IP rated.
Supply must be fitted with suitable sized over current protection
The ONEstage SPD3's big brother the SPD5 raised the bar for portable power management and distribution and the miniaturised SPD3 has packed some of the same great features into a new smaller pack. Designed from the ground up to meet the stringent requirements of AS/NZS3002:2021 and AS/NZS3105:2017, the SPD3 keeps the original layout of the popular SPD-T1au and adds a robust 2-pole switch with thermal overload protection combined with a black rocker switch.
The recess power present led was borrowed from the SPD5 and is located behind a transparent window in the medical grade polycarbonate decal which allowed the designers to use a UV stabilized black rocker switch. As the only moving part, the lifespan of the rocker switch should be greatly increased, even when exposed to extreme UV conditions.
Audio-Visual integrators, audio production houses, lighting equipment suppliers, touring applications, stage power, event power, expo solution providers and temporary site power providers will benefit from the ruggedized general-purpose power outlet,The SPD3 is made for high demand applications when a reliable power outlet device requires interfacing with standard AU/NZ Type I equipment.
2-Pole combination breaker/switch to meet the stringent requirements of AS/NZS3002:2021 (Shows and Carnivals) and AS/NZS3105:2017 (EPODS). 2-Pole switching is now mandatory.
IP rated Locking input connector capable of 16A at 240VAC
3x Standard AU/NZ Type I outlets
Outlet one is rotated 90 degrees to accommodate plug-packs
Outlet 3 is double spaced to accommodate extra-large plugs
Recessed rocker switch to prevent nuisance tripping
Ruggedized Lightweight aluminium enclosure
Textured finish and anodised black for low reflectivity
UV stabilized black outlets allow for low stage presence and long lifespan
Shares same physical form factor as ONEstage SSD products
Overall weight of less than 900g saves weight and transport cost
2x M4 threaded inserts for mounting additional accessories
Maximum of 16A at 240VAC per circuit
Whilst every effort was made to prevent the potential ingress of dust and moisture, the ‘SPD3’ is NOT officially IP rated
M8/4 threaded inserts are not TUV rated.
Specifications are subject to change without notice
The ONEstage SPD5's older sibling the SPD-T1Au set a new standard in portable power management and distribution and the all-new SPD5 has upped the game again! Designed from the ground up to meet the stringent requirements of AS/NZS3002:2021 and AS/NZS3105:2017, the SPD5 keeps the original layout of the popular SPD-T1au and adds a robust 2-pole switch with thermal overload protection combined with a black rocker switch.
The power present led has been moved from inside the switch to behind a transparent window in the medical grade polycarbonate decal which allowed the designers to use a UV stabilized black rocker switch. As the only moving part, the lifespan of the rocker switch should be greatly increased, even when exposed to extreme UV conditions.
Audio-Visual integrators, audio production houses, lighting equipment suppliers, touring applications, stage power, event power, expo solution providers and temporary site power providers will benefit from the ruggedized general-purpose power outlet. The SPD5 is made for high demand applications when a reliable power outlet device requires interfacing with standard AU/NZ Type I equipment.
IP rated Locking input and throughput connectors capable of 16A at 240VAC
5x Standard AU/NZ Type I outlets
Outlet 5 is double spaced to accommodate extra-large plugs
Shares the same physical form factor as ONEstage SSD SPX products
Whilst every effort was made to prevent the potential ingress of dust and moisture, the SPD-T1au is NOT officially IP rated
SPX6 is ONEstage's truss-mountable Socapex break-out box. Suitable for use on permanent and semi-permanent installs, pre-rigged truss, touring rigs or powering LED screens, the SPX6 utilises our PSD (patch selector dial) tapeless labelling system; users simply turn the dial to the appropriate position to indicate the source supply. Designed with lighting rental houses, touring rigs, theatres and auditoriums in mind, the SPX6 is also suitable for other applications where remote control is required for power outlets that aren't easily accessible. Each output is labelled in a discrete black on grey design for minimal visual appearance.
When used in conjunction with compatible cabling systems and headers, the SPX6 offers 6 discreet outputs on 15a AU/NZ Type I receptacles.
6x Standard AU/NZ Type I 15amp outlets
Industry-leading LK branded connector
Blanking plate facilitates easy addition of a Throughput connector or moving the location of the input connector
Earth buss bar aggregates all 7 earth connections to ensure maximum compatibility and low earth loop impedance.
Shares the same physical form factor as ONEstage SSD & SPD products
The overall weight of 1.2kg saves rigging weight and transport cost
Current carrying capacity of the SPX6 is limited to the supply cable, systems and all other upstream equipment.
Whilst every effort was made to prevent the potential ingress of dust and moisture, the SPX6 is NOT officially IP rated
SPX6T is ONEstage's truss-mountable Socapex break-out box. Suitable for use on permanent and semi-permanent installs, pre-rigged truss, touring rigs or powering LED screens, the SPX6T utilises our PSD (patch selector dial) tapeless labelling system; users simply turn the dial to the appropriate position to indicate the source supply. Designed with lighting rental houses, touring rigs, theatres and auditoriums in mind, the SPX6 is also suitable for other applications where remote control is required for power outlets that aren't easily accessible. Each output is labelled in a discrete black on grey design for minimal visual appearance.
When used in conjunction with compatible cabling systems and headers, the SPX6T offers 6 discreet via the industry-standard 16a NEUTRIK TruCon connector
6x Standard TruCon outlets
Ruggedized & Lightweight aluminium enclosure
Shares the same physical form factor as ONEstage SSD, SPD products
2x M4 & 2x M8 Threaded holes for mounting additional accessories
Current carrying capacity of the SPX6T is limited to the supply cable, systems and all other upstream equipment.
Whilst every effort was made to prevent the potential ingress of dust and moisture, the SPX6T is NOT officially IP rated
The SPD8 is a compact, lightweight and highly intuitive 3-phase power distribution system. Designed primarily to be used on stage as the powerhouse behind the SPD5, the SPD8 would also be at home serving power for FOH applications, LED screens, lighting rigs, providing power for EXPO booths, powering site sheds, distribution for temporary tenancies or any application where a temporary power solution might be needed.
The SPD8 is loaded with high-quality components from leading manufacturers. It uses a compact 2RU form factor and delivers more power in less space than our competitors products. The combination of a simple labelling structure, Front Panel Patching and Power-Present LEDs make the unit easy to use and familiar to any experienced Audio, Lighting, Video or Electrical technician.
Rugged and compact, Lightweight 2ru aluminium enclosure
Front panel 3 phase and Neutral present LED with fault indication
Dual pole switching to comply with AS/NZS3002/2021
8x High-quality 16a/6K/30ma Hager brand MCBO/GFCI
T1 locking output connectors
Phase labelled outputs for easy load balancing
Recessed Power Present LEDs for each output
Tapeless labelling to correspond with the‘ONEstage SPD-T1au
Highly flexible 6mm2 Ozoflex brand supply cable. 2 meters in length
Wilco 50a connector
Whilst every effort was made to prevent the potential ingress of dust and moisture, the SPD8 is NOT officially IP rated.
Supply must be fitted with a suitable 4-pole 32a breaker
The SSD8 is a brand new addition to the SSD range, though in a slightly miniaturised package. Interface directly with your SP48 split and patch system via the industry-standard LK multipin connector and you are ready to rock! The durable Neutrik brand ABS XLR connectors decrease the weight and space requirements of the system, leaving more space above the connectors for your favourite brand of tape to label the channels.
The ONEstage SSD8 is designed to be a highly versatile multipin stage box for use on demanding touring and festival stages, corporate AV, Press audio distribution, as well as TV and recording studios.
The highly modular design of the SSD8 (borrowed from the SSD12 16) allows the user to quickly and easily modify the I/O configuration, depending on its intended use. The high-quality LK brand multipin connector is wired to our very own PCB based XLR module using phoenix style 3pin plugs. This allows the user to swap one, or all of the XLR receptacles for male plugs or non-latching female connectors. The included blanking plate facilitates the addition of a throughput connector or replacing the multipin connector with a wired lead altogether. The solderless nature of the connectors is a quantum leap forward in terms of modularity and serviceability.
Industry-standard LK25MP with crimpled pins more maximum reliability
It Shares the same physical form factor as ONEstage SPD3 products
The SSD8 uses Neutriks A sized hole, not compatible with D sized components
Whilst every effort was made to prevent the potential ingress of dust and moisture, the SSD8 is NOT officially IP rated
M4 & M8 threaded inserts are not TUV rated
LK25 dust cap not included

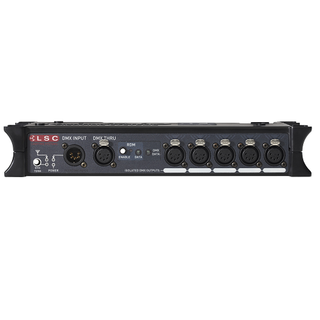

The comprehensive range of upgrade-able MDR professional DMX512/RDM data splitters deliver industry-best protection, providing correct DMX512 earth isolation and data integrity.
What else would you expect from the company that helped write the DMX512 standard?
