1 to 7 of 7 results

eDMX1 Pro 5 Pin

Compact and robust this single universe Ethernet DMX512 node suits a wide range of applications.
With power supplied via a USB-B socket many power source options exist since almost any USB port or USB charger/power supply will work just fine including USB ports on many wireless routers.
Both DMX512 output and DMX512 input functions are supported along with E1.20 RDM.
Designed and manufactured in New Zealand to the highest standards the eDMX1 PRO is the perfect first step into DMX512 over Ethernet.
Supporting both Art-Net and sACN the eDMX1 PRO is ideal for your single universe Luminair controlled rig right through to complex distributed high universe count applications.
Firmware v3.0+ eDMX1 PRO includes Universe Sync functionality.
Main Features
DHCP automatic network address by default - plug in and illuminate!
Supported operating systems: Any with Ethernet networking support. Windows, MAC OS, Linux, iOS, Android....
DMX512 Out or DMX512 In functionality over Art-Net / sACN E1.31
E1.20 RDM over Art-Net support.
Universe Sync Art-Net, sACN and Madrix Post Sync.
User configuration of Art-Net Node short and long names.
Compact tough metal enclosure.
Available with 3 pin or 5 pin XLR socket, no adapter purchase required.
External 5Vdc power input USB type B socket. Can be powered from computer USB port.
Fully compatible with *ALL* software and hardware that supports Art-Net I, II, 3 & 4 and sACN protocols.
Fully compatible with lighting consoles capable of generating Art-Net or sACN protocol.
Configuration utility with basic Art-Net output/input test functionality.
Firmware updates can be performed by end user.

Code	Image	Product Name	Attributes		Price
EDMX1-PRO		eDMX1 Pro 5 Pin		Login For Price

eDMX2 Pro - 2 Universe Art-Net sACN Node, PoE

Perfect middle ground when you need more than 1 universe but without the expense and bulk of 4 universe nodes.
We've incorporated both Art-Net/sACN and USB DMX in the same unit along with Power over Ethernet making this the most flexible 2 universe node around.
Built tough and compact the eDMX2 PRO takes little space in your bag and can be USB or PoE powered.
Mount an eDMX2 PRO closer to the rig and run Ethernet cable back to the controller using PoE power.

With USB DMX and ArtNet/sACN capabilities the eDMX2 PRO gives you the best of both worlds.
Run USB DMX from your laptop or PoE Ethernet ArtNet as part of a larger rig or even merge USB DMX from another lighting application with your main system.
eDMX2 PRO is the most flexible interface on the market.
Supporting both DMX512 output and DMX512 input individually configurable on each channel along with Art-Net and sACN protocols the eDMX2 PRO is the perfect choice for temporary small to medium rigs.
DMX merge functionality works from both Art-Net/sACN, DMX Input and USB DMX sources providing plenty of configuration possibilities.
Designed and manufactured in New Zealand to the highest standards.
Firmware v3.0+ eDMX2 PRO includes show recording and playback from microSD card and Universe Sync functionality.

Main Features
Static IP or DHCP network addressing.
Supported operating systems: Any with Ethernet networking support. Windows, MAC OS, Linux, iOS, Android....
Fully compatible with USB DMX software suitable for ENTTEC USB Pro. Drivers for Windows, OS X, Linux.
eDMX2 PRO - 2x DMX512 Out or DMX512 In with Art-Net, sACN E1.31 and E1.20 RDM support
Merge 2 incoming Art-Net/sACN streams per output channel with both HTP and LTP options
Merge Art-Net/sACN + DMX input -> DMX output
Merge DMX input + USB DMX source -> DMX output
USB DMX enhanced mode for 2 Universe Out or 1 In 1 Out.
1500V Isolation between every port.
Art-Net broadcast, Art-Net II, III & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support.
E1.20 RDM over Art-Net support.
Universe Sync Art-Net, sACN and Madrix Post Sync.
User configuration of Art-Net Node short and long names.
Compact tough metal enclosure.
Available with 3 pin or 5 pin XLR socket, no adapter purchase required.
Accessory port for external show triggering and future add on devices.
Power over Ethernet 802.3af compliant
External 5Vdc power input USB type B socket. Can be powered from computer USB port or USB charger unit.
etherCON for network connection.
Fully compatible with *ALL* software and hardware that supports Art-Net I, II, 3 & 4 and sACN protocols.
Works with your existing console if Art-Net or sACN external nodes are supported.
Configuration utility with basic Art-Net output/input test functionality.
Recording and playback to microSD card (not included). See eDMX PRO Record / Playback manual.
Standalone show playback without computer or network connection.
Firmware updates can be performed by end user.

Code	Image	Product Name	Attributes		Price
EDMX2-PRO		eDMX2 Pro - 2 Universe Art-Net sACN Node, PoE		Login For Price

eDMX4 Pro - 4 Universe Art-Net/ sACN Node

Need more universes? eDMX4 is the answer you've been looking for.
Built tough with plenty of mounting options the eDMX4 fits nicely in your lighting rig by simplifying cable runs and eliminating the need for DMX distribution amplifiers/splitters.
Mount an eDMX4 closer to the rig and run Ethernet cable back to the controller and better still power the eDMX4 right back at the controller up to 70m / 210feet away using Power over Ethernet.
Supporting both DMX512 output and DMX512 input individually configurable on each channel along with Art-Net and sACN protocols the eDMX4 is an ideal choice for universe hungry lighting rigs.
Flexible configuration permits 2 input DMX merge functionality too.
Designed and manufactured in New Zealand to the highest standards.
Rack Mount accessory available supporting 1 or 2 eDMX4 PRO units in 1U slot.
Firmware v3.0+ eDMX4 PRO includes show recording and playback from microSD card and Universe Sync functionality.
Important:
You need either a PoE network switch or PoE power injector to power this product!
Main Features
Static IP or DHCP network addressing.

Supported operating systems: Any with Ethernet networking support. Windows, MAC OS, Linux, iOS, Android....
eDMX4 PRO - 4x DMX512 Out or DMX512 In with Art-Net, sACN E1.31 and E1.20 RDM support
Merge 2 incoming Art-Net streams per output channel with both HTP and LTP options
Merge Art-Net + DMX input -> DMX output(s)
Merge 2x DMX input -> DMX output(s)
sACN Priority takeover for multi-tier controller arrangements
Mix and match ArtNet with sACN merge/priority sources
1500V Isolation between every port
Tough metal enclosure with multiple mounting options including 19" rack mount.
Available with 3 pin or 5 pin XLR socket, no adapter purchase required.
Power over Ethernet 802.3af compliant and etherCON for network connection.
E1.11 Higher Protection Level “DMX512-A Protected” device.
Fully compatible with *ALL* software and hardware that supports Art-Net I, II, 3 & 4 and sACN protocols.
Works with your existing console if Art-Net or sACN external nodes are supported.
Universe Sync Art-Net, sACN and Madrix Post Sync.
Recording and playback to microSD card (not included). See eDMX PRO Record / Playback manual.
Standalone show playback without computer or network connection.
Configuration utility with basic Art-Net output/input test functionality.
Firmware updates can be performed by end user.

Code	Image	Product Name	Attributes		Price
EDMX4-PRO		eDMX4 Pro - 4 Universe Art-Net/ sACN Node		Login For Price

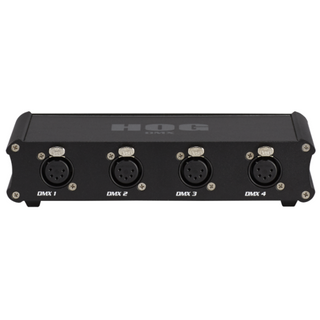

Hog4 USB DMX Super Widget

DMX Widgets allow you to easily expand your console’s DMX output. Simply attach USB DMX Widget and - just like that - you have more DMX outputs.
Each standard DMX Widget adds one universe.
The DMX Super Widget adds four ports and universes, and the DMX Super Duper Widget adds eight.

Code	Image	Product Name	Attributes		Price
HES-PCWID4		Hog4 USB DMX Super Widget		Login For Price	POA

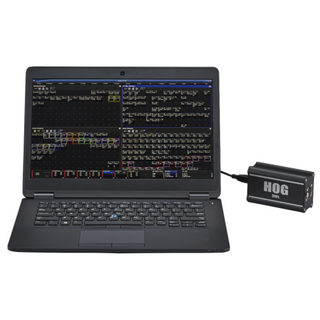

Hog4 USB DMX Widget

DMX Widgets allow you to easily expand your console’s DMX output. Simply attach USB DMX Widget and - just like that - you have more DMX outputs. Each standard DMX Widget adds one universe.

Code	Image	Product Name	Attributes		Price
HES-PCWID		Hog4 USB DMX Widget		Login For Price	POA

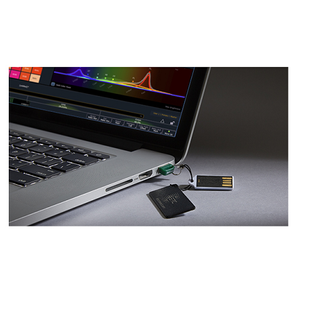

Nomad Base 1024 Output Kit USB Dongle compatible with Eos & Cobalt Software

Whether moving between venues or working on a show file in transit between gigs, a programmer is always on the go.

The Eos software is always free to download and use on Mac and PC, giving you access to all the latest features wherever you go - including Magic Sheets, effects, and the powerful 3D programming and visualization tools of the Augment3d platform.

When offline programming isn't enough, there's ETCnomad. This USB software key unlocks your laptop as a full-fledged part of your Eos system complete with networking and output capability.

Operates in stand-alone, primary, backup and client environments (when connected as a client, output capacity is determined by the system to which it is connected)
1,024 Outputs
32,768 Control Channels (mapped to any number from 1 to 99,999)
100,000 Cues
999 Cue Lists
999 Submasters
100 Fader Pages
4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
10,000 Presets (all palette)
10,000 Groups
10,000 Effects (relative, absolute or step)
99,999 Macros
10,000 Snapshots
10,000 Curves
10,000 Color Paths
99 discrete users
Partitioned control
Show import from Obsession, Express, ExpressioN, Emphasis, Congo, Cobalt, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
Magic Sheets suite for customized user programming and displays
Virtual Media Server function for pixel-mapping effects, images, and animations

Code	Image	Product Name	Attributes		Price
ETC-NOMAD1024		Nomad Base 1024 Output Kit USB Dongle compatible with Eos & Cobalt Software		Login For Price	POA

Nomad Unlocked 6144 Output; USB Dongle compatible with, Eos & Hog4 Software

Whether moving between venues or working on a show file in transit between gigs, a programmer is always on the go.

When offline programming isn't enough, there's ETCnomad. This USB software key unlocks your laptop as a full-fledged part of your Eos system complete with networking and output capability.

Operates in stand-alone, primary, backup and client environments (when connected as a client, output capacity is determined by the system to which it is connected)
6,144 Outputs
32,768 Control Channels (mapped to any number from 1 to 99,999)
100,000 Cues
999 Cue Lists
999 Submasters
100 Fader Pages
4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
10,000 Presets (all palette)
10,000 Groups
10,000 Effects (relative, absolute or step)
99,999 Macros
10,000 Snapshots
10,000 Curves
10,000 Color Paths
99 discrete users
Partitioned control
Show import from Obsession, Express, ExpressioN, Emphasis, Congo, Cobalt, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
Magic Sheets suite for customized user programming and displays
Virtual Media Server function for pixel-mapping effects, images, and animations
