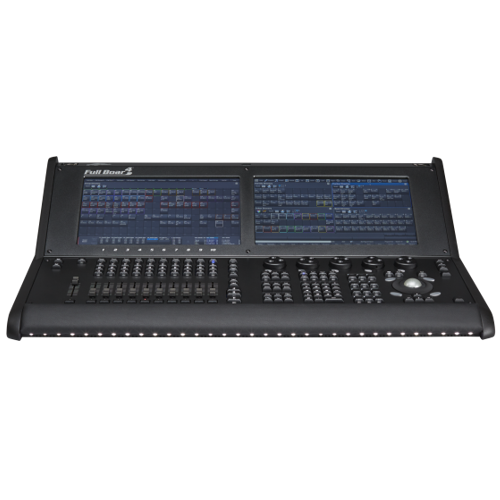

The Full Boar 4 is versatile enough to handle everything from a corporate show to a full stadium gig. The console offers all the power of the flagship Hog 4, but in a more compact and affordable package with sleek lines, raked screens, and that familiar Hog layout.

Full Boar 4 provides two 15.6” multi-touch monitors and two additional video outputs. Four on-board DMX universes drive the rig, and two gigabit Ethernet ports are included for Art-Net, sACN and console networking. Full Boar 4 satisfies the demanding programmer and brings the package in on budget.

Designed for touring, the Full Boar 4 offers the power of the flagship Hog 4-18, but in a more compact and affordable package, with sleek lines, raked screens, and that familiar layout.

With 12 universes of onboard processing, four local DMX outputs, two external touchscreen connections, USB and HogNet / FixtureNet ports, SMPTE and MIDI — what goes on tour connects on tour!

Product Features

Robust Hog 4 OS operating system
Hog-Net etherCON connector
Fixture-Net etherCON connector
Unlimited simultaneous crossfades
Internal solid-state hard drive
Two internal 15.6-inch 10-point touchscreens
Up to two external DisplayPort monitors/touchscreens supported
10 motorized playback faders
Motorized Grand Master
Dedicated DBO toggle key
Five expanded-wheelset encoders
12 user-assignable function keys with associated LCD
Tri-axis backlit trackball with rotary encoder and four configurable buttons
Kensington security slot
Integrated dimmable white lapwork light
Integrated dimmable blue vent light
Two dimmable white/blue desk lights included
Two USB flash drives for show storage and console recovery included
Dust cover included
Custom road case included
Compliance: ETL, CETL, CE
Capture Lighting Design Software, Quartet

Connectivity

Local output processing: 12x universes (6144 output channels)
Local DMX-512 outputs: 4x Neutrik 5-pin XLR
Expandable DMX-512 outputs via USB DMX Widgets
Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
Unlimited DMX-512, Art-Net and E1.31/sACN universes via HogNet-connected DP8Ks
LTC/SMPTE input via 3-pin XLR
MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
Expandable MIDI and LTC inputs via USB MIDI/LTC Widgets
Connectivity with visualizers via Fixture-Net (Art-Net or E1.31/sACN, unrestricted by local output capacity)
OSC (Open Sound Control) for remote control and integration
Supports USB playback and expansion Wings
USB 2.0 ports: 4 rear
USB 3.0 ports: 1 top
