The fixtures in a modern lighting designers toolkit have become more data-hungry, and ETCs Gateways are up to the challenge. Response Mk2 DMX Gateways flawlessly connect your sACN network to your DMX runs, allowing you to put data exactly where you need it, saving headaches, money, and time.

Response Mk2 DMX Gateways provide DMX and RDM data distribution, taking advantage of the reliability and interoperability of industry-standard protocols such as ANSI E1.31 (sACN) and ANSI E1.20 (RDM) using standard Ethernet cabling and infrastructure. The Gateways are available in 1-, 2-, and 4-port models to support multiple DMX universes. Each Gateway supports 256 RDM devices.

The 1-Port and 2-Port wall-mount models offer faceplates in Cream, Gray, Black, or White to blend in with any environment. And with portable form factors for each model it is possible to use accessories such as rack-mounting trays and c-clamp accessories.

Every model even the 1-port! features a crisp OLED screen and four-button interface for configuration, status, and diagnostics right at the Gateway itself.

For larger systems, Response Mk2 DMX Gateways are configurable using ETCs Concert software. Both network parameters and DMX/RDM configurations can be modified, saved, and re-loaded, allowing for maximum flexibility. On-board diagnostics and output tests make Response Mk2 Gateways a great tool for technicians.

Fully-integrated ETC systems

Response Mk2 DMX Gateways offer seamless integration into ETCs Unison architectural lighting control systems, and also pair perfectly with ETCs entertainment controls.

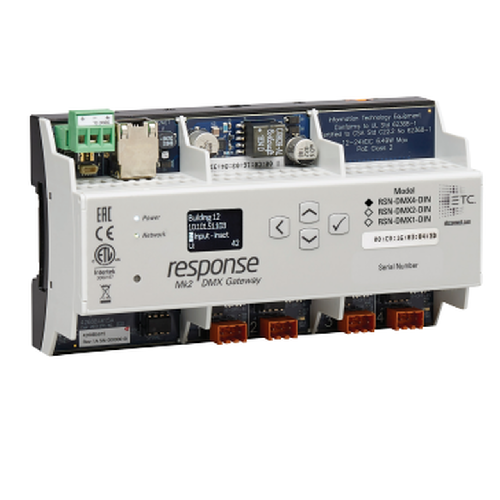

Finding the right Ethernet gateway has never been easier. With wall-mount, portable, and DIN rail form factors, you can always find the perfect fit for your application. And ETC's variety of DIN rail enclosures ensure you have a secure, convenient place to house your DIN rail devices. All Gateways can be powered via Power over Ethernet or 12-24 VDC external power supply.
