LSC Control; Powerpoint Distro; 12 Channel; 16 Amp; Flatpin; RCBO
Stock Code:
LSC-PWP12-16P-40
POA
Quantity Breaks
1+
POA
Please Call
Description

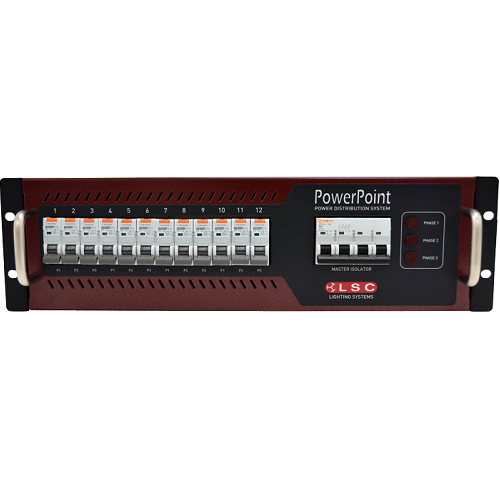

LSC Control PowerPoint
Simple Power Distribution
16 Amp Outputs; Flat Pins
A show cannot function without reliable power; consequently, power distribution has grown to be an integral part of any event. Simple and quick set-up of power distribution is handled effortlessly by the PowerPoint, delivering reliability at an affordable price.
Protection
- 16A Residual Current Breaker (RCBO) per output channel
- 30mA Earth leakage trip current per channel
- Front panel mounted neon power indicator per phase
- *PWP12/16/40A model supplied with a 3-phase 40A MCB in lieu of 4-pole mains isolator
Power Specifications
- Nominal 100-240V AC, 3-phase star TN-S with fully rated earth, 50-60Hz
- Operating range typically 90-260V AC, 45-65Hz auto voltage and frequency adjustment
- * PWP12/16/40A model supplied with 3-phase 1.2m H07 5 core x 6mm² rubber cable fitted with 40A 3-phase plug
Mechanical Specifications
- Dimensions: 483mm (w) x 132mm (h) x 300mm (d) – 3RU x 19" rackmount
- Weight: 11kg
- Corrosion-resistant, powder-coated steel chassis with rear-screened polycarbonate labels
