Belden CatSnake Cat6A; S/FTP; PVC; Black
Stock Code:
BEL-1303E
Quantity Breaks
1+
In Stock
Description

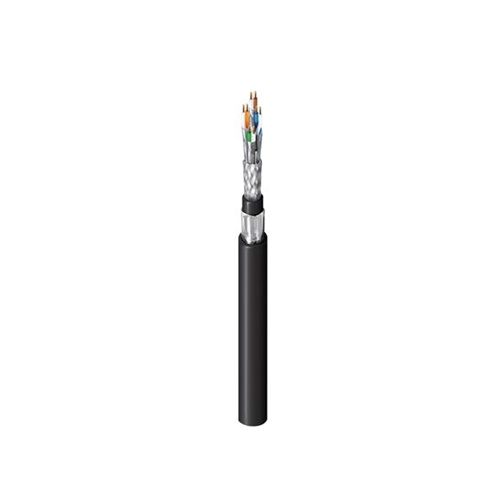

Belden 1303e CATSnake Cat6A
Cat6a, 4 Pair, S/FTP, PVC PVC Unjacketed
The Belden 1303E is a rugged, high-performance Category 6A S/FTP cable specifically engineered for professional AV, live sound and installation environments.
With individually foil-shielded pairs plus an overall braid, it supports demanding network protocols including 10 GBase-T, Dante, AVB, eSnake and CobraNet, sACN, ArtNet.
The robust 8.7 mm jacketed cable is built to withstand tough field use while maintaining excellent electrical performance, making it ideal for stage, studio, film and fixed installation applications.
Product Specifications
| Attribute | Value |
|---|---|
| Brand | Belden |
| Series | 1303E |
| LAN Category | Cat6a |
| Length | 500m Roll or Cut to Custon Legnth |
| Shield Type | S/FTP (foil individually shielded pairs + overall braid) |
| Shielded / Unshielded | Shielded |
| Sheath Colour | Black |
| Outer Sheath Material | PVC |
| Fire Behaviour | Flame Retardant |
| Standards Met | ANSI/TIA/EIA 568-B.2-10 (2008), EN 50173-1 Ed. 3:2011, IEC 60332-1, ISO/IEC 11801 Ed. 2.0:2002/A2:2010/C1:2011 |
| Cable Shape | Twisted Pair |
| Conductor Strand Type | Stranded |
| Number of Strands | 8 |
| Outer Diameter | 8.7 mm |
| American Wire Gauge (AWG) | 24 AWG |
Can be cut and terminated to custom legnths, can be found here
