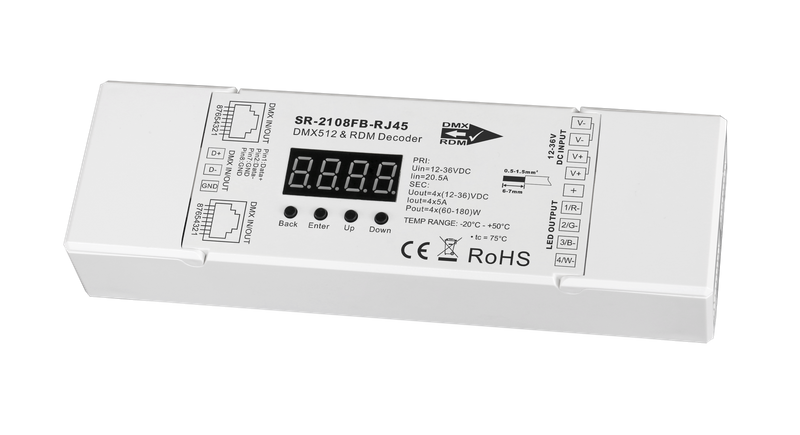

DMX Decoder TV; 4CH; 5A; 12-36VDC; CV; RDM; 500Hz-30kHz; RJ45 Term
Stock Code:
SR-2108FB-RJ45
Quantity Breaks
1+
In Stock
Description
Constant Voltage 4 Channels DMX & RDM Controller
Overview
The SR-2108FB-RJ45 is a cutting-edge constant voltage DMX and RDM controller designed to facilitate seamless control of LED lighting systems. With its master and decoder modes, this controller is versatile, making it ideal for various lighting applications, including stage, architectural, and commercial lighting.
Key Features
- 4 Channels Output: Each of the four channels supports a maximum output of 5A, allowing for comprehensive control of multiple LED fixtures.
- DMX & RDM Support: Fully compatible with DMX512, DMX512-A, and RDM protocols, ensuring easy integration with existing DMX control systems.
- Master & Decoder Modes: Switch effortlessly between master and decoder modes for versatile operation and control.
- RJ45 Connectivity: Utilizes RJ45 connectors for reliable data transmission and easy networking of multiple units.
- Adjustable PWM Frequency: Optimizes dimming performance, providing flicker-free operation at various brightness levels.
- Digital Display: Features a user-friendly digital display for easy setup and monitoring of DMX addresses.
- Compact Design: Lightweight and easy to mount, making it suitable for a variety of installation scenarios.
Specifications
- Model Number: SR-2108FB-RJ45
- Input Voltage: AC 100-240V
- Output Voltage: 12V, 24V (selectable)
- Output Current: 5A per channel
- Channels: 4 channels
- Dimensions: 244mm x 64mm x 32mm
- Weight: Approximately 1.2kg
- Operating Temperature: -20°C to 60°C
Application Areas
- Architectural Lighting: Perfect for illuminating buildings and outdoor spaces.
- Stage and Event Lighting: Ideal for theatrical productions, concerts, and exhibitions.
- Commercial Lighting: Suitable for retail and hospitality environments requiring dynamic lighting control.
