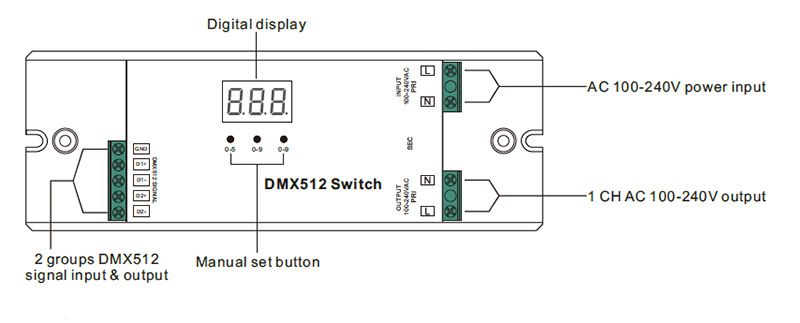

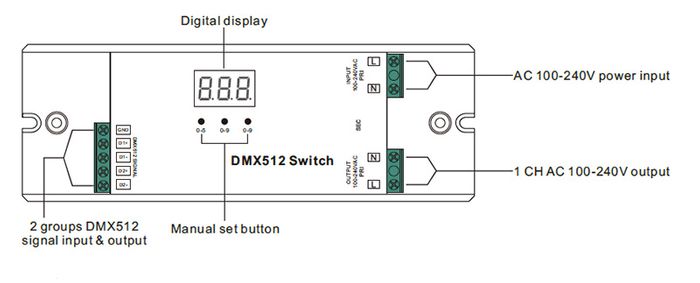

The SR-2703B is an 1CH DMX512 switch designed for use in lighting control systems. It features stand-alone mode capabilities and is compatible with standard DMX protocols. This versatile switch is ideal for managing various lighting applications, providing reliable performance and ease of use.

Key Features

DMX512 Protocol Compliance: Fully complies with DMX standards, ensuring compatibility with various lighting consoles.
Stand-Alone Mode: Allows for operation without a DMX controller, easily set up for simple lighting control.
Manual DMX Addressing: DMX addresses can be manually assigned and displayed on the numeric digital display.
Automatic DMX Addressing: Supports automatic addressing when connected to a master controller.
3 Channel Output: Provides three independent channels for controlling different lighting fixtures.
Wide Input Voltage Range: Operates on an input voltage of AC 100-240V.
Compact Design: Lightweight and easy to install in various locations.
LED Indicator: Equipped with LED indicators for monitoring power and DMX signal status.

Specifications

Model Number: SR-2703B
Input Voltage: AC 100-240V
Output Current: 5A per channel
Maximum Output Power: 500W
Output Type: Compatible with HV-halogen lamps, LED lamps, electronic ballast, Led tape
Dimensions: 59mm x 170mm x 29mm
Weight: Approximately 0.5kg

Application Areas

Theater Lighting: Ideal for controlling stage lighting and effects.
Architectural Lighting: Suitable for building illumination and decorative lighting.
Event Lighting: Perfect for managing lighting in events, parties, and exhibitions.
