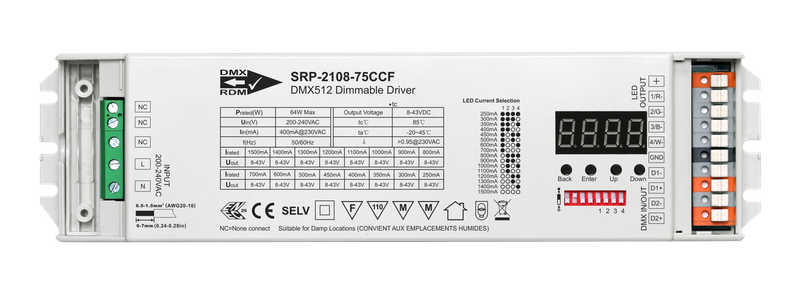

The SR-2108-75CCF is a versatile and high-performance 4-channel RGBW LED driver designed for professional lighting applications. With its advanced DMX control technology, this driver allows for precise lighting control and dimming capabilities, making it ideal for both commercial and residential setups.

Key Features

Dimmable LED Driver: Capable of handling a maximum output power of 75W.
4 Channels: Supports 4-channel constant current output with selectable currents from 300mA to 1500mA, allowing flexibility in lighting designs.
DMX Control: Complies with DMX protocols for seamless integration with universal lighting controllers
Built-in RDM: Supports RDM (Remote Device Management) for bi-directional communication and easy management of connected devices.
User-Friendly Setup: Simple dipswitch settings for operation current and DMX channel configuration.
PWM Dimming: Allows smooth dimming capabilities with adjustable PWM output frequency (500Hz to 2KHz) and resolution (8-bit or 16-bit).
Compact Design: Features a full isolated plastic case, making it safe for various applications.
High Efficiency: Efficiency over 87% with a power factor greater than 0.9, reducing energy consumption.
IP20 Rating: Designed for indoor applications, ensuring reliability and safety.

Specifications

Model Number: SR-2108-75CCF
Input Voltage: 200-240VAC
Output Current: 250mA - 1500mA (selectable via dipswitch)
Maximum Output Power: 75W
Output Voltage Range: 8-48VDC
Dimensions: 244mm x 64mm x 32mm
Weight: Approximately 1.2kg
Operating Temperature: -20deg to 60deg

Application Areas

Architectural Lighting: Perfect for illuminating buildings, landscapes, and interiors.
Theater and Stage Lighting: Ideal for use in theatrical productions, concerts, and events.
Commercial Lighting: Excellent for retail displays, restaurants, and bars requiring dynamic lighting solutions.
