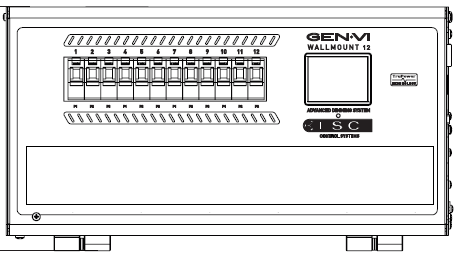

LSC Control; GENX Dimmer; Wall Mount; 12 Channel; 10 Amp; Terminals
Stock Code:
LSC-GNXW12-10T
POA
Quantity Breaks
1+
POA
Please Call
Description
LSC Control GENX - 12 Channel x 10 Amp
Wall Mount; Terminals
Next-Generation Ethernet in Power and Dimming Control
More than just a dimmer, GENX is the next generation of LSC's DIMSwitch technology. Introducing built-in Ethernet connectivity for direct control via sACN or ArtNet, no gateway or node required. Developed through global experience and user feedback, GENX offers a refined, flexible solution for today's complex lighting and power control needs.
Key Features
- 3.2" Colour LCD Touchscreen
- Programmable stand-alone mode via easy-to-use menus
- DMX512 (1990) or DMX512-A (E1-11) input with RDM (E1-20) functionality on 5-pin XLR connectors
- sACN (E1-31), Art-Net and artRDM via Ethercon RJ45 connector
- Set individual channels to ATC (Active Triac Control) dimmer or TruPower switch mode
- Selectable fade curve, min and max levels per channel
- DMX snapshot scene for emergency backup on loss of signal
Specifications
Electrical Specifications
- 12 channel x 10A RCBO breakers with 30mA trip per channel
- Nominal voltage: 100-240V, 3-phase star, 50-60Hz
- Operating range: Typically 90-260V, 45-65Hz
- Hardwired models supplied with L1, L2, L3, N, and E terminals for power connection
Physical Specifications
- Dimensions: 490mm (w) x 270mm (d) x 250mm (h)
- Weight: 16kg
- Full metal two-part hinged chassis with rear-screened polycarbonate labels
- Touchscreen, DMX in/thru, ethernet and RCBOs located on front panel
- Output connectors are hardwired
- Input power terminals housed internally, optional cable gland to allow flying tail to be connected
Monitoring and Configuration
- Phases present, DMX, RDM, temperature and fan monitoring on main display
- Remote configuration and monitoring via RDM
- Remote configuration and monitoring via LSC's HOUSTON X software
