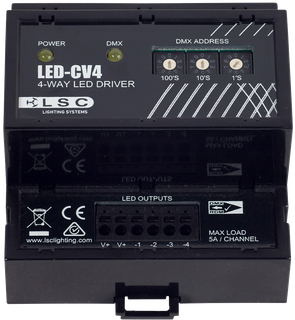

    LSC Control LED-CV4

    LED by Design

    Affordability and reliability don’t normally go hand-in-hand – until now. The LED-CV4 is a 4-channel LED dimmer marrying the latest technology, years of experience, and good, old-fashioned quality to deliver unparalleled performance at an exceptional price.

    Control Features

    • DMX and RDM input and thru connectors via a choice of RJ45 connectors or 3-pole push-fit terminals
    • DMX512 addressing via front-panel decimal encoders or via RDM protocol

    Protection

    • Short-circuit protection per output with auto-reset

    Monitoring

    • Real-Time monitoring of loads, accurate to 100mA, reportable via RDM protocol and LSC’s HOUSTON X software
    • No-load detection per output reportable via RDM protocol and LSC’s HOUSTON X software
    • Remote configuration, fault reporting, auditing, system logging, and monitoring via LSC’s HOUSTON X software on Windows and Mac computers as well as Android and iOS tablets
    • Configuration, monitoring, and software upgrades via HOUSTON X over DMX512 cabling

    Outputs

    • 4 channels x 5A constant voltage PWM dimmer outputs via push-fit terminals
    • Selectable frequency output (1, 2, 3, or 4 kHz)
    • 100% duty cycle rated for each output at either 12V or 24V
    • 8-bit or true 16-bit dimming per channel, set over RDM
    • Proprietary smoothing algorithm for stepless dimming on 8-bit control

    Power

    • 9-24V DC input – reverse polarity protected, via 2-pole push-fit terminals

    Mechanical Specifications

    • Dimensions: 88mm (w) x 104mm (d) x 59mm (h)
    • Weight: 165g
    • Standard TS35 DIN rail mount
    • ABS plastic UL94-VO rated housing
    Code Image Product Name Attributes Price
    LSC-LED-CV4
    LSC Control; 4 Way LED Driver
    LSC Control; 4 Way LED Driver
    POA
