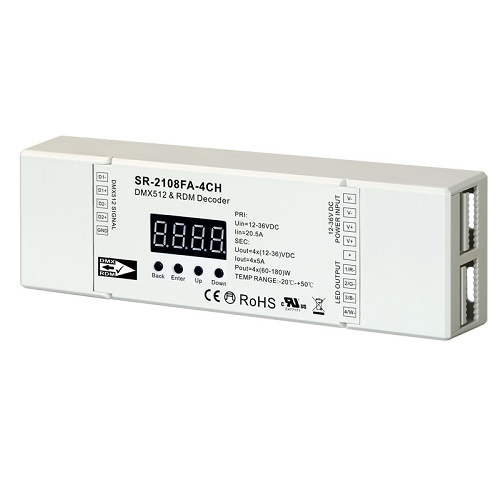

DMX Decoder TV; 4CH; 5A; 12-36VDC; CV; RDM; 500Hz-30kHz; Quick Connection
Stock Code:
SR-2108FA-4CH
Quantity Breaks
1+
Please Call
Description
Constant Voltage 4 Channels DMX & RDM Controller
Overview
The SR-2108FB-4CH is a versatile constant voltage DMX and RDM controller designed to provide advanced control for LED lighting systems. With its ability to function in both master and decoder modes, this controller is ideal for various lighting applications, ensuring flexibility and ease of use.
Key Features
- 4 Channels Output: Each channel supports a maximum output of 5A, providing powerful control over LED fixtures.
- DMX & RDM Support: Compatible with DMX and RDM protocols for seamless integration into existing lighting systems.
- Master & Decoder Modes: Easily switch between master and decoder modes to control multiple devices or single LED fixtures.
- Adjustable PWM Frequency: Allows for smooth dimming capabilities and flicker-free operation.
- Digital Display: Easy-to-read digital display for monitoring settings and DMX address configuration.
- Compact Design: Lightweight and easy to install, suitable for a variety of indoor applications.
- High Efficiency: Designed to minimize energy consumption while maximizing output power.
Specifications
- Model Number: SR-2108FB-4CH
- Input Voltage: AC 100-240V
- Output Voltage: 12V, 24V (selectable)
- Output Current: 5A per channel
- Channels: 4 channels
- Dimensions: 244mm x 64mm x 32mm
- Weight: Approximately 1.2kg
- Operating Temperature: -20°C to 60°C
Application Areas
- Architectural Lighting: Ideal for illuminating buildings, landscapes, and decorative elements.
- Stage and Event Lighting: Perfect for controlling stage lighting in theaters and events.
- Commercial Lighting: Suitable for retail environments, bars, and restaurants requiring dynamic lighting solutions.
