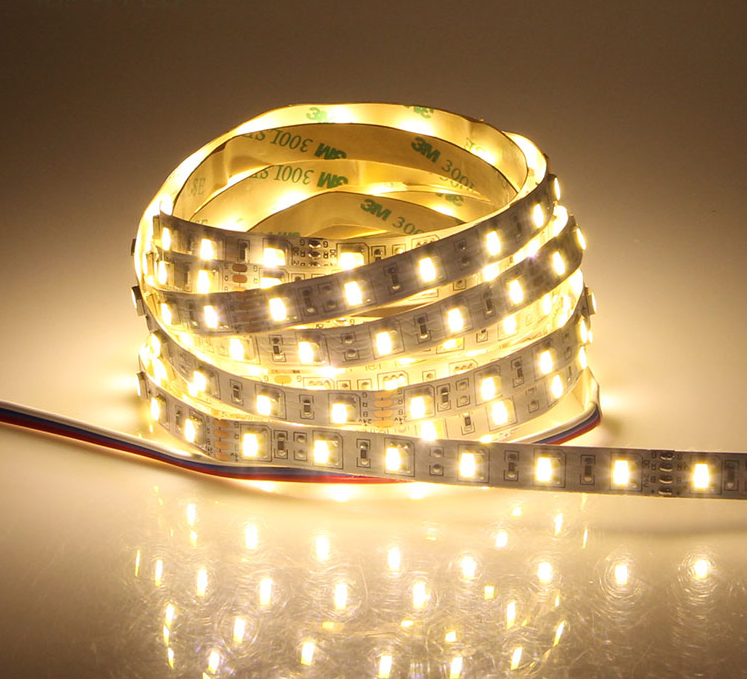

5050 WW+CW LED Tape; IP20; 24vdc; 12w/m; 60 LED/m; CRI 85
Description
Dual-Color 5050 LED Tape Light - 60 LEDs/m, 24V DC
Price per metre. Comes on a 10 m roll, we will cut to order
This CCT adjustable LED strip offers smooth, tunable light with high-quality 5050 “2-in-1” LED chips. Seamlessly switch between warm white (2800-3200K) and cool white (6000-6500K) for flexible lighting solutions in homes, offices, and commercial spaces.
With a 10 mm white FPC base and 2 oz copper, this strip ensures reliable current handling and minimal voltage drop. Its versatile design allows easy installation, cutting, and reconnection for fully custom layouts.
Key Features
- Dual CCT: Warm White (2800-3200K) and Cool White (6000-6500K)
- 60 LEDs/m with high-brightness SMD 5050 chips
- Cuttable every 100 mm (6 LEDs) for precision fitting
- Large soldering pads for easy reconnection
- 24V constant voltage operation
- 3M adhesive backing for simple mounting
- Flexible 10 mm FPC with 2 oz copper for durability
- 5 m per reel with optional waterproof ratings: IP64, IP65, IP68
- High CRI (≥85RA) for accurate color rendering
- Operating temperature –25°C to 60°C
Applications
- Residential: kitchens, under-cabinet lighting, coves, shelving
- Commercial: offices, retail displays, architectural accents
- Hospitality: bars, restaurants, lobbies
- Any space requiring tunable warm and cool white lighting
Technical Specifications
| Part Number | S010060CC2PZ |
| Voltage | 24V DC |
| LED Type | SMD 5050 |
| LED Density | 60 LEDs/m |
| CCT | WW: 2800-3200K / W: 6000-6500K |
| Power | 9.6 W/m |
| Lumen Output | W: 408 lm/m, WW: 382 lm/m |
| CRI | ≥85RA |
| PCB Color | White |
| Dimensions | 5000 × 10 mm |
| Cut Interval | 100 mm (6 LEDs) |
| Waterproof Options | IP64 / IP65 / IP68 |
| Operating Temperature | -25°C to 60°C |
Installation & Usage
- Cut every 6 LEDs for custom lengths
- Reconnect easily using large soldering pads or compatible connectors
- Adhesive-backed FPC allows secure mounting on clean, dry surfaces
- Compatible with standard 24V LED drivers
