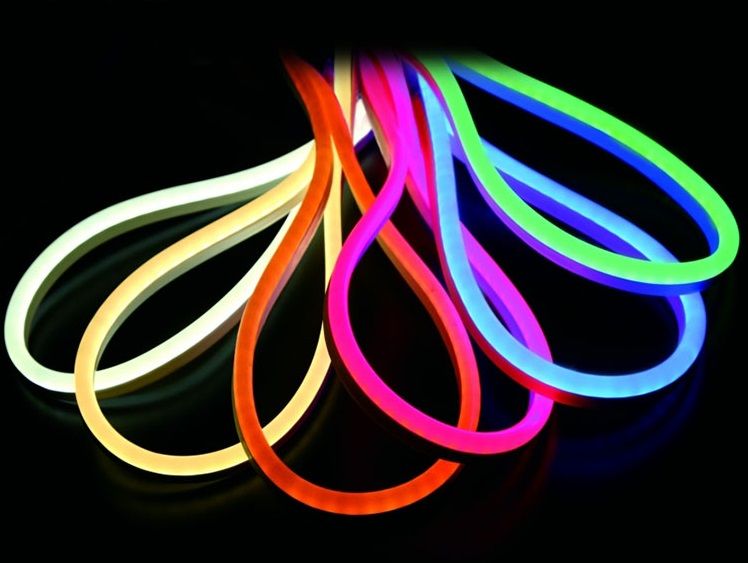

RGBWW Pixel Neon Flex; UCS2904IC; 24vdc; 14.4W/m; IP65
Description
USC2904 RGBW Top-View LED Neon Strip - 24V DC
Price per metre. Comes on a 20 m roll, we will cut to order
This top-view RGBW LED neon strip combines smooth, dot-free illumination with SPI pixel control, making it ideal for dynamic architectural features, signage, and entertainment applications requiring animated lighting effects.
With a compact 16 x 16 mm profile and vertical bending capability, this neon strip delivers clean lines of light, soft diffusion, and excellent colour consistency across long runs.
Key Features
- Top-view luminous output for continuous linear lighting
- Flexible vertical bending (up and down) for curves and contours
- SPI control using USC2904 for pixel-based animation effects
- Supports flowing, chasing, jumping, and gradient lighting effects
- High-brightness SMD5050 LED chips
- Uniform, shadow-free illumination with no visible LED hotspots
- Soft, glare-free light suitable for close-view installations
- Simple, modern exterior design for architectural integration
- Durable silicone housing with excellent flexibility
- Resistant to salt, corrosion, flame, and UV exposure
Optical & Control Design
The strip features a unique optical light-distribution structure to ensure even surface illumination, smooth RGBW colour mixing, and the complete elimination of visible spotting or shadowing.
The USC2904 SPI control enables individual pixel addressing, allowing complex animation effects and seamless integration into advanced lighting control systems.
Reliability & Environmental Performance
Designed for demanding environments, the silicone jacket provides UV resistance, corrosion and salt tolerance, and flame-retardant properties.
Backed by a 2-year quality warranty, with an expected working life of ~36,000 hours.
Specifications (24V DC Only)
Electrical
| Input Voltage | 24 V DC |
| Power Consumption | 14.4 W/m |
| Operating Temperature | -25 deg to +60 deg |
Light Source
| LED Type | SMD5050 |
| LED Density | 84 LEDs per metre |
| Colour | RGBW |
| White CCT Options | 3000 K / 4000 K / 6500 K |
| Luminous Output | Red: 78 lm Green: 175 lm Blue: 38 lm White: 245 lm |
Pixel Control
| IC Type | USC2904 |
| Pixel Density | 12 pixels per metre |
| Control Protocol | SPI |
Physical
| Dimensions | (5025 ±15) × 16 × 16 mm |
| Profile | Top-view neon |
| Bending Direction | Vertical (up / down) |
| Cutting Length | 83.33 mm |
| Material | Silicone |
