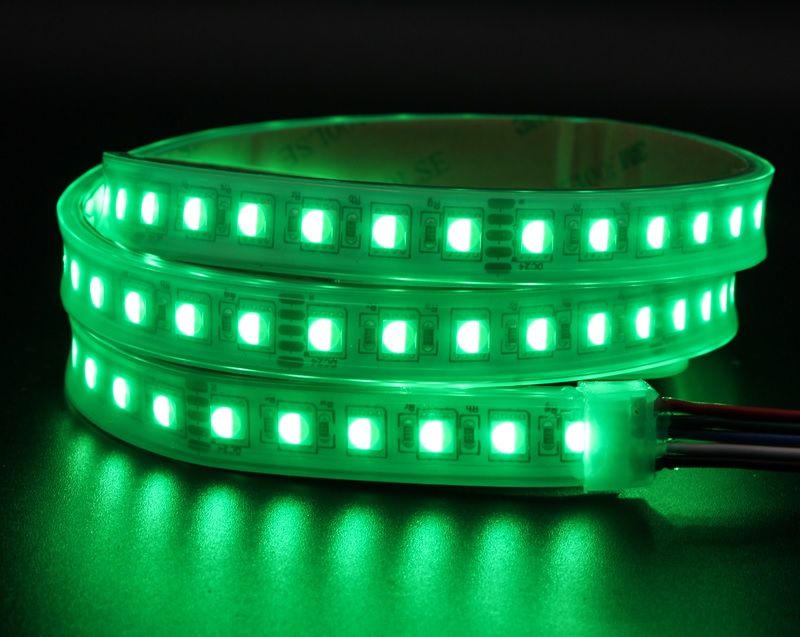

5050 RGBWW; IP64; 24vdc; 19.2W/m; 12mm Width
Description
24V RGBW LED Strip - 60 x 5050 LEDs per Metre - IP64 Rated
Price per metre. Supplied on a 10 m roll, we will cut to order
This high-quality 24V RGBW LED strip combines vibrant RGB colour-changing capability with a dedicated warm white (2700K) channel, delivering both creative flexibility and practical everyday lighting from a single product.
Designed for architectural, commercial, and entertainment applications, this strip offers smooth colour mixing, reliable output, and excellent installation flexibility.
Key Features
- True RGBW output with independent warm white LEDs
- 60 x 5050 LEDs per metre for strong, even light output
- 24V DC operation for reduced voltage drop over longer runs
- Cuttable every 100 mm for precise fitting
- Highly flexible PCB with premium 3M adhesive backing
- Dimmable via suitable controller
- IP64 Rated
Applications
- Under-cabinet and bar lighting
- Cove, pelmet, and feature lighting
- Outdoor Architectural accents
- Theatre, entertainment, and hospitality environments
- TV Set Designs
The RGBW configuration allows saturated colours, subtle pastels, and the ability to mix RGB channels for cool whites, while retaining a dedicated warm white channel for clean, natural illumination.
Installation & Customisation
- Cuttable at 100 mm intervals
- Sections may be joined or powered independently
- Suitable for recessed profiles or surface mounting
We offer an in-house cutting and wiring service if required, helping tailor the strip to your exact installation needs.
Note: This product is sold in 1 m increments, supplied from a 10 m roll. Multiple metres can be purchased; however, single continuous lengths longer than 10 m are not available.
Adjacent Products
Power Supplies (Drivers)
Mean Well HLG-240W - 24V DC CV/CC Power Supply
Supports up to 12 m of this 24V RGBW LED strip (load dependent).
A robust, industry-standard PSU suitable for architectural, entertainment and TV installations.
View product
Mean Well HLG-320W - 24V DC CV/CC Power Supply
Supports up to 16 m of this 24V RGBW LED strip (load dependent).
Ideal where higher capacity or longer runs are required.
View product
DMX Decoders (RGBW Control)
DMX Decoder - 4 Channel / 8 A / 12–36 V DC - Screw Terminals
Reliable hard-wired DMX decoder for RGBW LED strip control.
View product
DMX Decoder - TV 4 Channel / 5 A / 12–36 V DC - RDM / RJ45
Compact DMX decoder with RDM support and RJ45 connectivity, suitable for professional control systems. Ideal for TV sets where a high refresh rate is required.
View product
Technical Data
| Dimmable | Yes |
| Outdoor Rating | IP64 |
| Input Voltage | 24V DC |
| Power Consumption | 19.2 W / m |
| Brightness | Red: 120 lm Green: 300 lm Blue: 110 lm Warm White: 500 lm |
| IP Rating | IP20 (Non-waterproof) |
| Average Lifetime | 40,000 hours |
| Light Source | 60 x 5050 LEDs per metre |
| Light Colour | Red / Green / Blue / Warm White 625 nm / 515 nm / 460 nm / 2700 K |
| Beam Angle | ~120 Deg |
| Working Temperature | -20 Deg to +60 Deg |
| Type | Colour-changing LED strip |
| Cut Length | 100 mm |
| Dimensions | 12 mm (W) × 2.2 mm (H) |
| Maximum Length | 10 m per roll |
