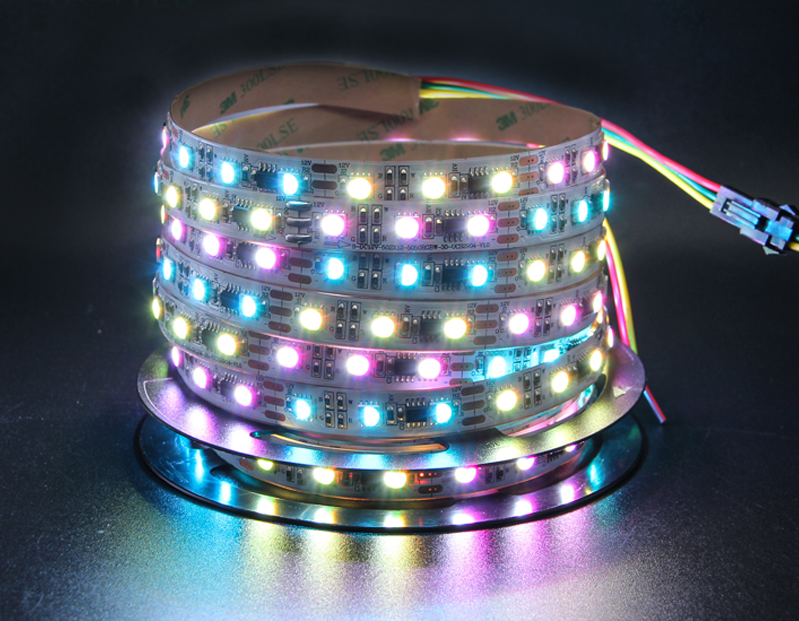

RGB; WS2811 LED Strip; 12VDC; 14.4W/M; IP20
Description
SPI WS2811 Digital LED Strip - 60 LEDs/m, 12V DC
Price per metre. Comes on a 10 m roll, we will cut to order
This pixel-controlled RGB LED strip features 60 high-brightness 5050 LEDs per metre with WS2811 SPI control, allowing full individual pixel addressing and dynamic lighting effects.
With 20 pixels per metre (3 LEDs per pixel), flexible FPC, and optional waterproof housing, this strip is ideal for architectural accents, signage, entertainment installations, and creative LED effects projects.
Key Features
- WS2811 SPI protocol for full pixel control
- 60 LEDs/m with 20 pixels/m for smooth animation
- Cuttable every 50 mm for flexible installation
- Available in white or black PCB
- Flexible 1 oz copper FPC, 5 m per reel
- Strong 3M adhesive backing for quick mounting
- JST SM connectors at both ends for easy wiring
- Silicone coating or silicone tube housing for waterproof options
- Operating temperature: −25°C to +60°C
Applications
- Architectural lighting: coves, ceilings, wall accents
- Entertainment lighting: stages, props, effects
- Signage: outlines, dynamic displays, text lighting
- Creative installations requiring animated RGB effects
Technical Specifications
| Voltage | 12V DC |
| LED Type | 5050 RGB |
| LED Density | 60 LEDs/m |
| Pixel Density | 20 pixels/m |
| Protocol | SPI - WS2811 |
| PCB Color | White or Black |
| Power | 12 W/m |
| Dimensions | 10m x 10 mm |
| Cut Interval | 50 mm |
| Housing | Silicone coating or silicone tube (waterproof) |
| Operating Temperature | −25°C to +60°C |
Installation & Usage
- Cut every 50 mm for custom lengths
- Use JST SM connectors for easy connections
- Mount using the 3M adhesive backing on clean, dry surfaces
- Compatible with 12V LED drivers and pixel controllers
