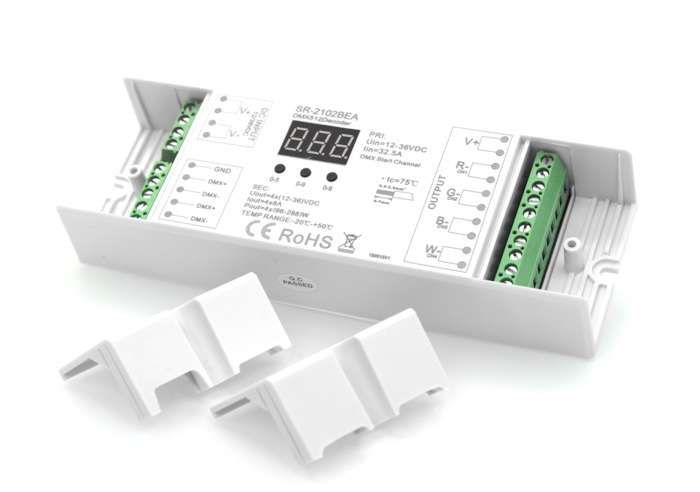

DMX Decoder 4CH; 8A; 12-36VDC; CV; Screw Terminals

Stock Code:
SR-2102BEA
Quantity Breaks
1+
Make an Enquiry
In Stock

Description

Product Specification: Constant Voltage DMX512 Decoder

Overview

The SR-2102BEA is a high-performance constant voltage DMX decoder designed to control LED lighting fixtures with ease. This decoder is compatible with various DMX controllers, making it an essential component for advanced lighting systems in both commercial and residential settings.

Key Features

  • DMX512 Protocol Compliance: Fully supports the DMX standard for reliable communication with Lighting Consoles.
  • Constant Voltage Output: Provides stable output voltage options of 12V, 24V, 36V, or 48V, suitable for different LED applications.
  • Selectable Channel Configuration: Offers 3-channel or 4-channel output options, providing flexibility for various lighting setups.
  • Digital Address Display: Easy-to-read digital display for setting and monitoring DMX addresses.
  • High Output Current: Supports up to 8A per channel, allowing for powerful control of multiple LED fixtures.
  • Remote Management: Compatible with RDM (Remote Device Management) for convenient remote configuration and management.
  • LED Indicators: Equipped with indicators to show power status and DMX signal reception.
  • Compact Design: Easy installation with a lightweight and space-saving design.

Specifications

  • Model Number: SR-2102BEA
  • Input Voltage: AC 100-240V
  • Output Voltage: 12V, 24V, 36V, or 48V (selectable)
  • Output Current: 8A per channel
  • Channels: 3-channel or 4-channel selectable output
  • Dimensions: 244mm x 64mm x 32mm
  • Weight: Approximately 1.2kg
  • Operating Temperature: -20°C to 60°C

Application Areas

  • Architectural Lighting: Ideal for illuminating buildings, landscapes, and facades.
  • Stage Lighting: Suitable for use in theaters, concerts, and event productions.
  • Commercial Lighting: Perfect for retail stores, restaurants, and bars requiring dynamic lighting control.
