Decoders

Decoders

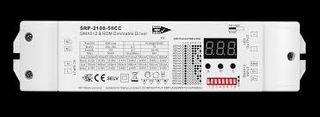

  • DMX 50W dimmeable driver, CC, 230VAC, Selectable Output
    DMX 50W dimmeable driver, CC, 230VAC, Selectable Output

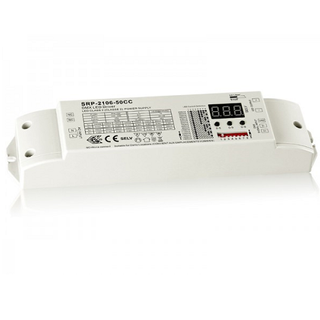

    SRP-2106-50CC is a 50w dimmable DMX LED driver with 1 channel constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DMX address can be manually assigned via buttons and showed on digital display. Complying with DMX512(2008) and DMX512-A, this LED driver is compatible with universal DMX master controllers.

    Key Features

    • Dimmable LED driver, Max. output power 50W
    • 1 channel constant current output, 250mA ~ 1500mA Adjustable by DIP switches
    • Class ? power supply, full isolated plastic case
    • Rubycon capacitors
    • Built-in two stage active PFC function
    • High power factor and efficiency, PF > 0.9, Efficiency > 87%
    • Complying with DMX512(2008) and DMX512-A, this LED driver is compatible with universal DMX master controllers
    • DMX address can be manually assigned via buttons and showed on digital display
    • To control single color LED lighting
    • Smooth and deep dimming to 0.1% without flickering, no buzzing noise
    • IP20 rating, suitable for indoor LED lighting applications
    Code Image Product Name Attributes Price
    SRP-2106-50W-CCT
    DMX 50W dimmeable driver, CC, 230VAC, Selectable Output
    DMX 50W dimmeable driver, CC, 230VAC, Selectable Output
  • DMX Decoder 2ch; CC 250-1500mA; 50w; Screw Terminals
    DMX Decoder 2ch; CC 250-1500mA; 50w; Screw Terminals

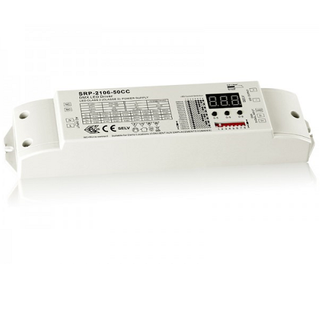

    SRP-2106-50CC is a 50w dimmable DMX LED driver with 1 channel constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DMX address can be manually assigned via buttons and showed on digital display. Complying with DMX512(2008) and DMX512-A, this LED driver is compatible with universal DMX master controllers.

    Key Features

    • Dimmable LED driver, Max. output power 50W
    • 1 channel constant current output, 250mA ~ 1500mA Adjustable by DIP switches
    • Class ? power supply, full isolated plastic case
    • Rubycon capacitors
    • Built-in two stage active PFC function
    • High power factor and efficiency, PF 0.9, Efficiency 87%
    • Complying with DMX512(2008) and DMX512-A, this LED driver is compatible with universal DMX master controllers
    • DMX address can be manually assigned via buttons and showed on digital display
    • To control single color LED lighting
    • Smooth and deep dimming to 0.1% without flickering, no buzzing noise
    • IP20 rating, suitable for indoor LED lighting applications
    Code Image Product Name Attributes Price
    SR-2106-50W-CCT
    DMX Decoder 2ch; CC 250-1500mA; 50w; Screw Terminals
    DMX Decoder 2ch; CC 250-1500mA; 50w; Screw Terminals
  • DMX Decoder 4ch 8A, 12-36VDC, CV, Screw Terminals
    DMX Decoder 4ch 8A, 12-36VDC, CV, Screw Terminals

    The SR-2103BEA is a constant voltage DMX512 decoder with 3 channel or 4 channel output selectable and 8A per channel output and available in 12VDC, 24VDC and 36VDC output, which can be switched between DMX decoder mode and stand-alone mode.

    • Constant voltage DMX512 decoder with 3 channel or 4 channel output selectable and 8A per channel output, available in 12VDC, 24VDC and 36VDC output
    • DMX512 compliant control interface, DMX address can be set freely and shown on the digital numeric display
    • Stand-alone mode and DMX512 decoder mode can be freely switched by buttons
    • Once under stand-alone mode, the DMX master can adjust brightness of each channel and enter the fading operation mode
    • Three-channel / Four-channel output selectable
    • To work with power repeater to expand output unlimitedly
    Code Image Product Name Attributes Price
    SR-2103BEA
    DMX Decoder 4ch 8A, 12-36VDC, CV, Screw Terminals
    DMX Decoder 4ch 8A, 12-36VDC, CV, Screw Terminals
  • DMX Decoder TV, 4ch 5A, 12-36VDC, CV, RDM, 500Hz-30kHz, Quick Connection
    DMX Decoder TV, 4ch 5A, 12-36VDC, CV, RDM, 500Hz-30kHz, Quick Connection

    SR-2108FA-4CH is an industrial level constant voltage DMX512 & RDM controller which features full support to the latest DMX512, DMX512(1990), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols. The RDM controller is designed with 5 channels, 5A per channel constant voltage output and available in 12VDC, 24VDC and 36VDC.The DMX LED controller is designed with easy connection terminals without screws.

    RDM bi-direction communication function enables the DMX512 master console to detect and display decoder information and set DMX address. A variety of features can be set via the visible numeric digital display and the buttons such as DMX address, output channel quantity, PWM output resolution (8 bit or 16 bit), PWM output frequency, GAMMA ray dimming curve value and DMX decoding mode.

    There are total 4 PWM output channels with common anode and DMX channel quantity can be settable from 1CH to 4CH. DMX address can be set and displayed via the numeric digital display. High frequency 16bit and low frequency 8bit PWM output resolution are available and switchable, and default setting is 16bit. 10 levels of PWM output frequency are optional from 500Hz-30kHz, default setting is 1kHz. Gamma ray dimming curve value is adjustable from 0.1-9.9, and logarithmic dimming and linear dimming are optional. DMX Decoding modes are optional and enable to adjust brightness of each output channel, master brightness of all output channels and strobe effects, and default mode is dp1.1.

    Key Features

    • Industrial level DMX512 & RDM controller
    • Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols, compatible with DMX512 master consoles from other international incorporations
    • Total 4 PWM output channels, common anode. DMX channel quantity from 1CH to 4CH settable
    • 5A 4 channels constant voltage output
    • Easy connection terminals without screws
    • RDM bi-directional communication function
    • Enable DMX512 master console to detect decoder, display decoder information and set DMX address
    • Visible numeric digital display operation interface with a variety of features selection
    • PWM output high frequency 16bit and low frequency 8bit switchable, default setting is 16bit
    • 10 levels of PWM output frequency optional from 500Hz-30kHz, default setting is 1kHz
    • Decoding modes optional, enable to adjust brightness of each channel, master brightness of all channels and strobe effects, default mode is dp1.1
    • Gamma ray curves value adjustable from 0.1-9.9, logarithmic dimming and linear dimming optional
Code Image Product Name Attributes Price
SR-2108FA-4CH
DMX Decoder TV, 4ch 5A, 12-36VDC, CV, RDM, 500Hz-30kHz, Quick Connection
DMX Decoder TV, 4ch 5A, 12-36VDC, CV, RDM, 500Hz-30kHz, Quick Connection
  • LED Decoder 4ch 5A, 12-36VDC, CV, Screw Terminals, 4 Contact input
    LED Decoder 4ch 5A, 12-36VDC, CV, Screw Terminals, 4 Contact input

    SR-2108FA-4CH is an industrial level constant voltage DMX512 RDM controller which features full support to the latest DMX512, DMX512(1990), DMX512-A and RDM V1.0 (E1.20 2006 ESTA Standard) protocols. The RDM controller is designed with 5 channels, 5A per channel constant voltage output and available in 12VDC, 24VDC and 36VDC.The DMX LED controller is designed with easy connection terminals without screws.

    RDM bi-direction communication function enables the DMX512 master console to detect and display decoder information and set DMX address. A variety of features can be set via the visible numeric digital display and the buttons such as DMX address, output channel quantity, PWM output resolution (8 bit or 16 bit), PWM output frequency, GAMMA ray dimming curve value and DMX decoding mode.

    There are total 4 PWM output channels with common anode and DMX channel quantity can be settable from 1CH to 4CH. DMX address can be set and displayed via the numeric digital display. High frequency 16bit and low frequency 8bit PWM output resolution are available and switchable, and default setting is 16bit. 10 levels of PWM output frequency are optional from 500Hz-30kHz, default setting is 1kHz. Gamma ray dimming curve value is adjustable from 0.1-9.9, and logarithmic dimming and linear dimming are optional. DMX Decoding modes are optional and enable to adjust brightness of each output channel, master brightness of all output channels and strobe effects, and default mode is dp1.1.

    Key Features

    • Industrial level DMX512 RDM controller
    • Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols, compatible with DMX512 master consoles from other international incorporations
    • Total 4 PWM output channels, common anode. DMX channel quantity from 1CH to 4CH settable
    • 5A 4 channels constant voltage output
    • Easy connection terminals without screws
    • RDM bi-directional communication function
    • Enable DMX512 master console to detect decoder, display decoder information and set DMX address
    • Visible numeric digital display operation interface with a variety of features selection
    • PWM output high frequency 16bit and low frequency 8bit switchable, default setting is 16bit
    • 10 levels of PWM output frequency optional from 500Hz-30kHz, default setting is 1kHz
    • Decoding modes optional, enable to adjust brightness of each channel, master brightness of all channels and strobe effects, default mode is dp1.1
    • Gamma ray curves value adjustable from 0.1-9.9, logarithmic dimming and linear dimming optional
    Code Image Product Name Attributes Price

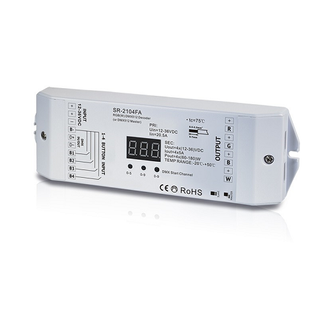

    SR-2104FA
    LED Decoder 4ch 5A, 12-36VDC, CV, Screw Terminals, 4 Contact input
    LED Decoder 4ch 5A, 12-36VDC, CV, Screw Terminals, 4 Contact input
    POA
