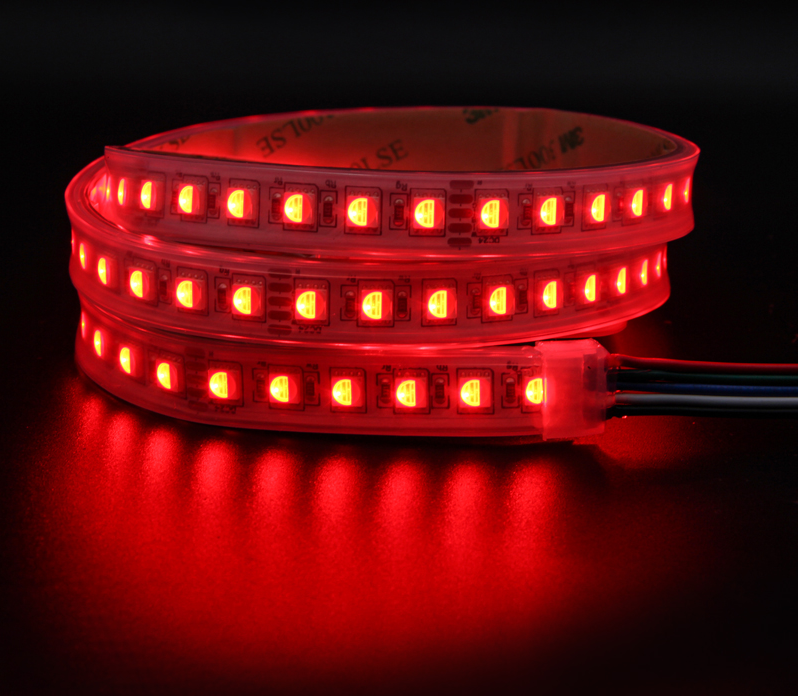

RGBWW LED Strip; 24V; 19.2W/m; IP20
Description

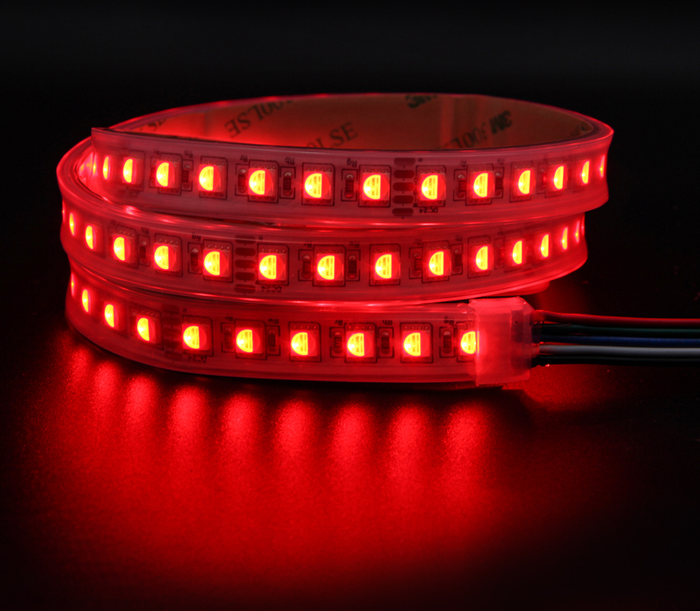

SMD 5050 RGBW LED Strip - 60 LEDs/m, 24V DC
Price per metre. Comes on a 10 m roll, we will cut to order
This DMX-controlled RGBW LED strip features 60 high-brightness SMD 5050 4-in-1 LEDs per metre. Designed for constant voltage 24V operation, it provides smooth RGBW color mixing without pixel control.
The flexible 12 mm PCB with 3 oz copper ensures reliable performance. Large soldering pads allow easy cutting and reconnection, and the strip comes in 10 m reels with 3M adhesive backing.
Key Features
- DMX control for RGBW color mixing
- 60 LEDs/m, 4-in-1 SMD 5050 RGBW LEDs
- Cuttable every 100 mm (24V operation)
- Large soldering pads for easy reconnection
- Flexible 12 mm PCB with 3 oz copper
- Constant voltage 24V operation, common anode
- 5-pin bare wire connections (black cable = DC+)
- 5 m per reel with 3M adhesive backing
- Available in white or black PCB
- Operating temperature: -25Deg to 60Deg
Applications
- Residential: coves, shelving, kitchens, accent lighting
- Commercial: offices, retail displays, architectural highlights
- Hospitality: bars, restaurants, lobbies
- Projects requiring smooth RGBW color mixing without pixel control
Technical Specifications
| Voltage | 24V DC |
| LED Type | SMD 5050 4-in-1 RGBW |
| LED Density | 60 LEDs/m |
| CCT | RGB + W: 3000K |
| Power | 19.2 W/m |
| Lumen Output | R: 106 lm, G: 261 lm, B: 59 lm, W: 378 lm |
| PCB Color | White / Black |
| Dimensions | 10m x 12 mm |
| Cut Interval | 100 mm |
| Protocol | DMX |
| Operating Temperature | -25 deg to 60 deg |
Installation & Usage
- Cut every 100 mm for 24V operation
- Use 5-pin bare wires for powering (common anode)
- Mount using 3M adhesive backing on clean, dry surfaces
- Compatible with 24V PWM controllers and drivers
